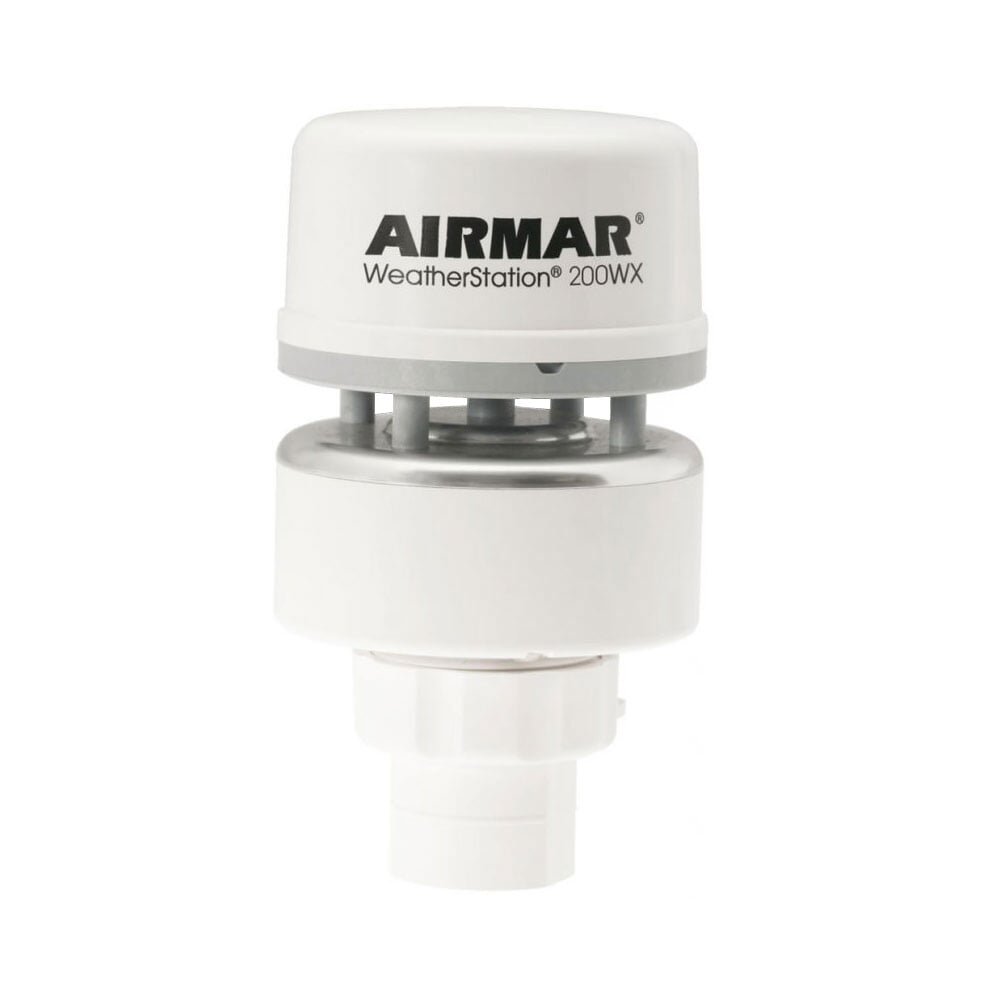

Airmar 200WX WeatherStation Instrument NMEA 0183/2K (RS422/CANBus)
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
The Airmar 44-835-1-01 200WX WeatherStation Instrument is perfect for mobile, land-based and weather-monitoring applications.
The WeatherStation 200WX is the best choice for mobile, land-based, weather-monitoring applications. Sensor rich, in a durable, rugged, small housing that is IPX6 rated, means the 200WX can be used on moving platforms such as TV-news and military vehicles.
- Ultrasonic measurement of apparent and theoretical wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- Calculated dew point and heat index
- GPS position, speed over ground, and course over ground
- Three-axis, solid-state compass with dynamic stabilization
- Three-axis rate gyro supplies rate-of–turn data
- Three-axis accelerometer for best-in-class pitch and roll information
- Housing IPX6 rated for water-ingress protection
- Data output via a single cable (various lengths available)
- NMEA 0183/ASCII serial data protocol over RS-422 interface
- NMEA 2000 protocol over CAN
Technical Specifications
X| Wind Speed | |
|---|---|
| Range | 0 to 40 m/s (0 to 89 MPH) |
| Accuracy | 5% at 10 m/s at 4° |
| Resolution | 0.1° |
| Calculations | User Configurable Damping |
| Wind Direction | |
|---|---|
| Range | 0 to 359.9° |
| Accuracy | ±3° at 10 m/s |
| Resolution | 0.1° |
| Calculations | User Configurable Damping |
| Air Temperature | |
|---|---|
| Range | -40 to 80° |
| Accuracy | ±1.1°C at 20°C |
| Resolution | 0.1°C |
| Barometric Pressure | |
|---|---|
| Range | 300 to 1,100 hPa |
| Accuracy | ±0.5 hPa |
| Resolution | 0.1 hPa |
| Three-axis Compass | |
|---|---|
| Range | 0 to 359.9° |
| Static Heading Accuracy | 1° |
| Dynamic Heading Accuracy | 2° |
| Resolution | 0.1° |
| Pitch and Roll | |
|---|---|
| Measurement Type | MEMS |
| Range | 50° |
| Accuracy | ±1° in range of ±30° |
| Resolution | 0.1° |
| GPS Position Accuracy | 3m (10') CEP |
| Power | |
|---|---|
| Supply Voltage | 9 to 40 VDC |
| Supply Current | <75 mA (<0.9 W) at 12 VDC |
| NMEA 2000 Load Equivalency Number (LEN) | 2 |
| Communications | |
|---|---|
| Available Interface | Serial RS-422 CAN |
| Available Protocol | Comma delimited ASCII NMEA 0183 NMEA 2000 |
| Serial Output Rate | 1 Hz typical User Selectable 10Hz Max Recommended |
| Other | |
|---|---|
| Weight | 300g (0.7lb) |
| Operating Temperature Range | -25 to 55°C (-13 to 131°F) |
| Mounting Thread | 1"-14 UNS (3/4" NPT Optional) |
| Certifications and Standards | CE IPX6 (IPX4 with optional Relative Humidity sensor) RoHS IEC61000-4-2 IEC60945 IEC60950_1C IEC60950_22A EN55022 EN55024 EN15014982 |
The WeatherStation 200WX is the best choice for mobile, land-based, weather-monitoring applications. Sensor rich, in a durable, rugged, small housing that is IPX6 rated, means the 200WX can be used on moving platforms such as TV-news and military vehicles.
Knowing the theoretical wind speed and direction is important and often mission-critical. The 200WX is able to calculate the theoretical wind speed and direction based upon the apparent wind (the wind you would feel on your hand if you held it out while moving), speed of the vehicle, and vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provide heading, position, speed-over-ground, and course-over-ground functionality that is necessary for theoretical wind-data processing on a moving vehicle.
The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The model 200WX maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.
-
