Airmar B260 1KW Bronze Thru-Hull Transducer

• Weight: 7.3 kg (16 lb.)
• Recommended Boat Length: More than 9 m (30')
• Hull Material: Fiberglass or wood
• Hull Deadrise: Up to 20° with fairing
• Acoustic Window: Urethane
• Hole Diameter: 33 mm or 1-5/16"
• Includes: High-performance fairing and mounting hardware

The performance of Airmar's "1 kW 260 family" of transducers is legendary. The combination of power and sensitivity has made this the high-performance transducer of choice with conventional fishfinders. Operating at 50 and 200 kHz the narrow 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs. The 50 kHz is excellent at deep-water detection and the wide 19° beam yields broad coverage under the boat.

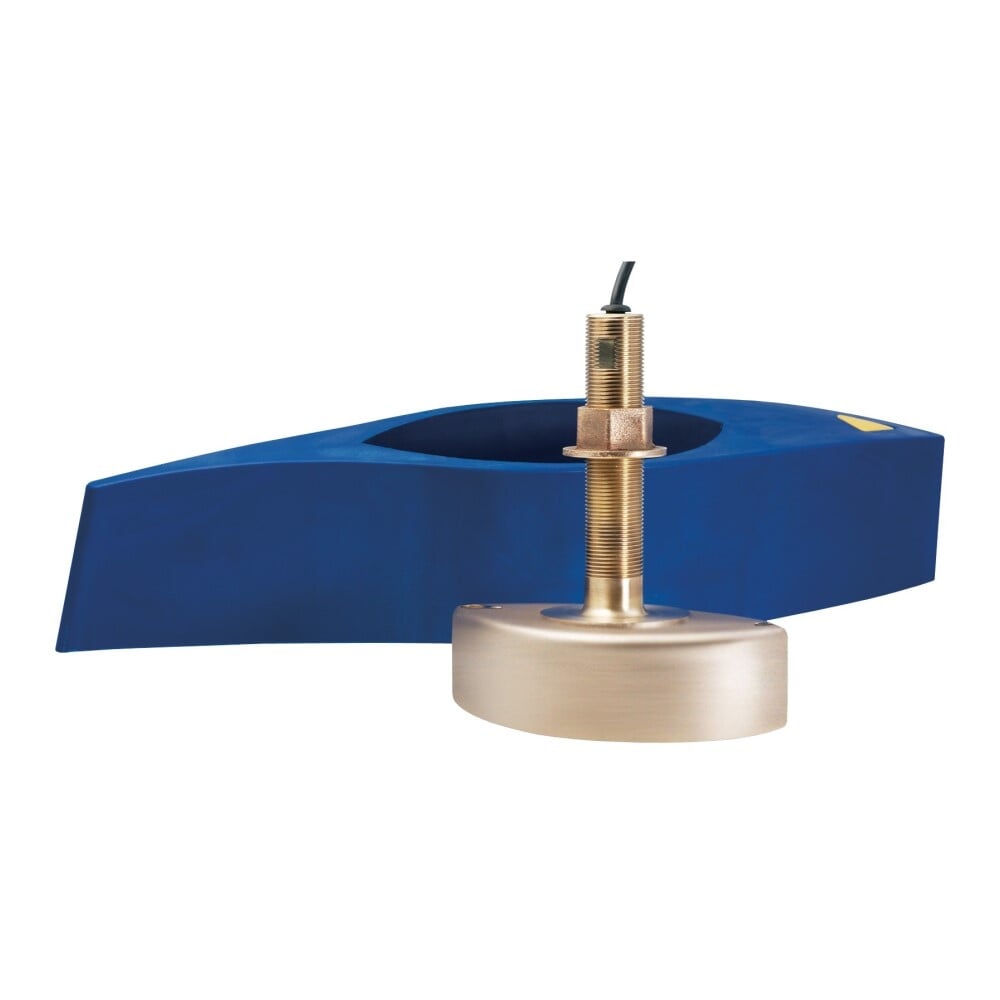

The thru-hull B260 model is a bronze housing and is also available in stainless steel (SS260) for installation on metal hulls. Installed with the included custom-fitting high-performance fairing the B260 gives excellent results at speeds up to 30 knots (34 MPH).

Features

• Depth and fast-response water-temperature sensor
• 1 kW
• Dual-frequency element: 50 kHz with a 19° beamwidth for depth performance to 762 m (2 500') 200 kHz with a 6° beamwidth for depth performance to 294 m (1 000')
• Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual-transmission-line fishfinders
• Bronze-stem housing with high-performance fairing for optimal performance at speed
• Also available in transom (TM260) in-hull (M260) and stainless steel (SS260) versions
• Exclusive Xducer ID technology
