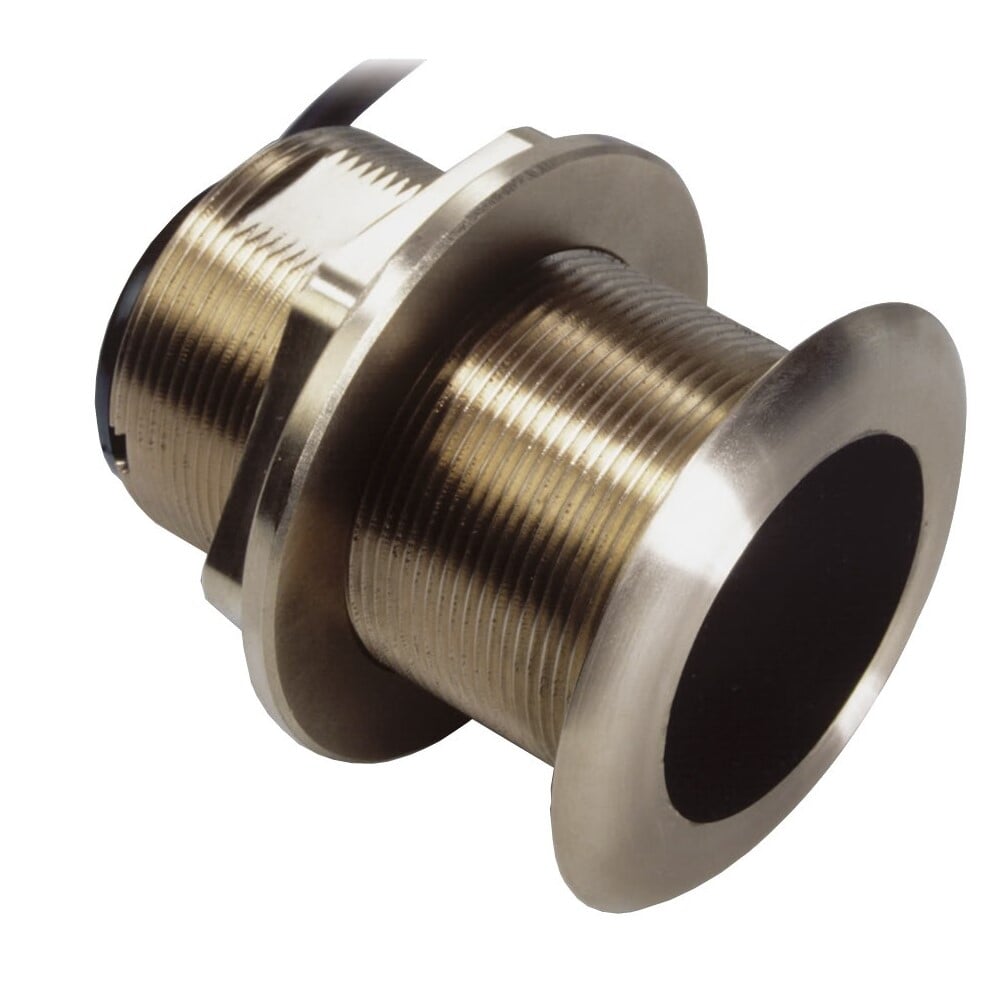

Airmar B60 20° Tilt Bronze Thru-Hull Transducer - Navico

• Weight: 1.4 kg (3 lb.)
• Recommended Boat Length: Up to 8 m (25')
• Hull Material: Fiberglass or wood
• Hull Deadrise: 16° to 24°
• Acoustic Window: Urethane
• Hole Diameter: 60 mm (2-3/8")

The B60 is a 600 W 50/200 kHz transducer that integrates Airmar's popular Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at a 20° angle within the housing. The transducer is installed almost flush to the hull and the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down it ensures maximum echo returns to the transducer for more-accurate depth readings.
