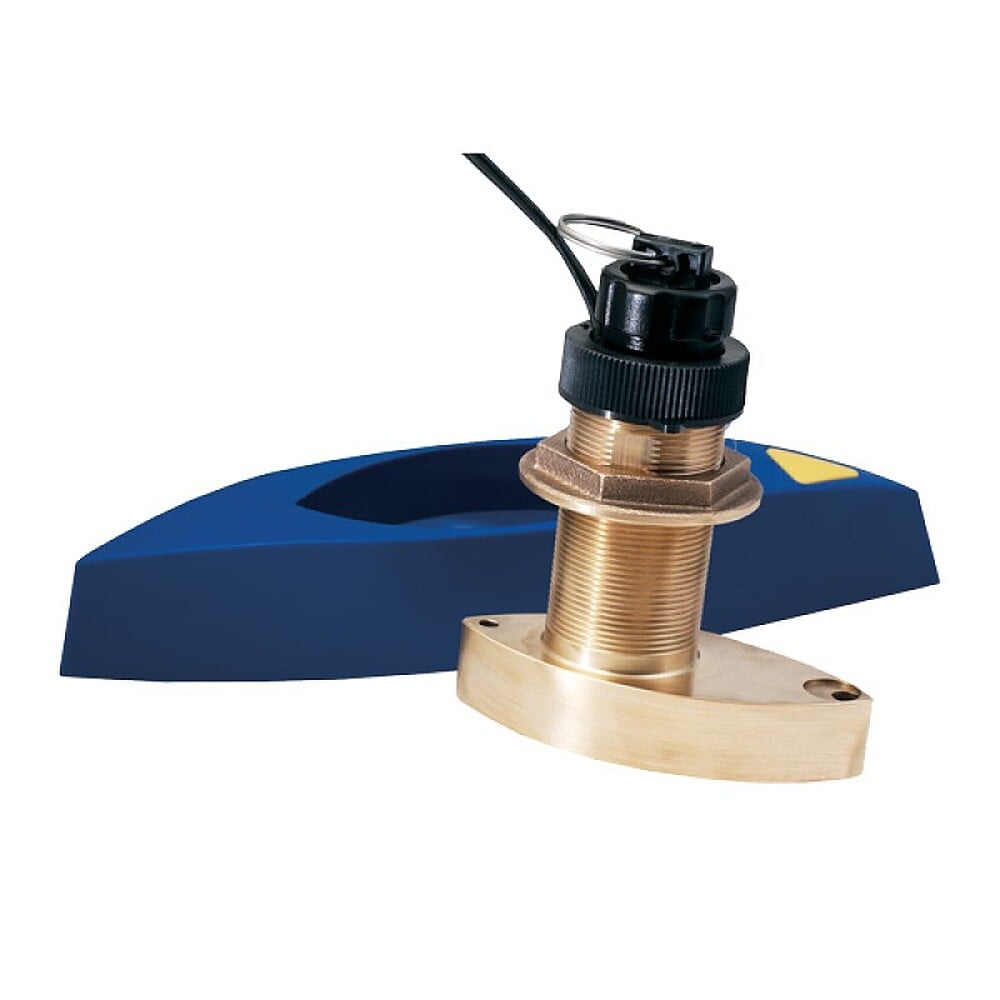

Airmar B774V Bronze 50/200 Thru Hull DST Transducer with Fairing
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
The B744V is a TRIDUCER Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz.
Suitable for (Lowrance/Simrad NSE/Navico BSM)
- Weight: 2.5 kg (5.5 lb.)
- Recommended Boat Length: Up to 9 m (30')
- Hull Material: Fiberglass or wood
- Hull Deadrise: Up to 24° with fairing
- Acoustic Window: Urethane
- Hole Diameter: 51 mm or 2"
- Speed Range: 1 to 45 knots (1 to 52 MPH)
- Includes: High-performance fairing and mounting hardware
- Suitable for (Lowrance/Simrad NSE/Navico BSM)
The B744V is a TRIDUCER Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. The B744V is also available with a longer stem (B744VL) that may be needed for steep-deadrise vessels or thick cored-fiberglass or wood hulls. Suitable for (Lowrance/Simrad NSE/Navico BSM)
Features
- Depth, speed, and temperature in one housing
- 600 W Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200'), 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Bronze housing with a high-performance fairing for optimal bottom tracking at higher speeds
- Self-closing water valve reduces water flow into the hull when paddlewheel insert is removed
- Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions
-
