Airmar R109LH DT XID 12m Cable CHIRP
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
41-442-1-03
RRP £5,568.65
£4,207.03
£3,505.86
Free mainland UK delivery!

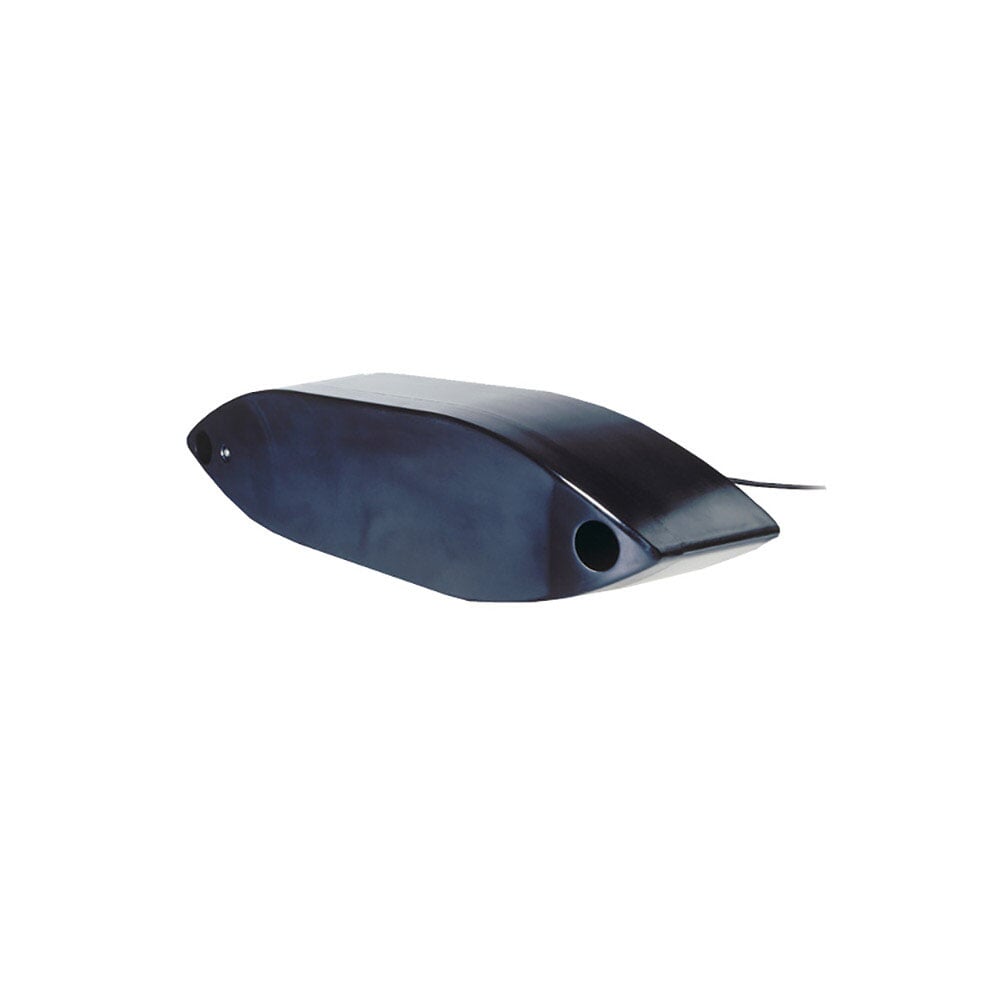

Airmar 41-442-1-03 R109LH Thru-Hull Transducer
The R109LH is a thru-hull, 2 kW transducer which delivers excellent target resolution, bottom discrimination and bait and game fish separation. The R109LH is packed with a fifteen element, low-frequency array that operates at anywhere between 38 kHz and 75 kHz which delivers great depth capabilities out to 6000'.
The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has narrow, 8° to 4° beams that provide tremendous bottom detail and fish target discrimination at depths to 1500'.
- Depth and fast-response water-temperature sensor
- 2 kW
- Low Frequency: 38 kHz to 75 kHz
- 19° to 10° beamwidth (port to starboard)
- 10° to 5° beamwidth (fore to aft)
- High Frequency: 130 kHz to 210 kHz
- 8° to 4° beamwidth with a maximum depth of 457 m (1500')
- 117 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 60 and 200 kHz plus everything else in the bandwidth
- Urethane transducer housing with high-performance fairing
- Recommended boat size: 12 m (40') and above
- Hull Type: Fiberglass, metal or wood hulls
- Exclusive Xducer ID technology
