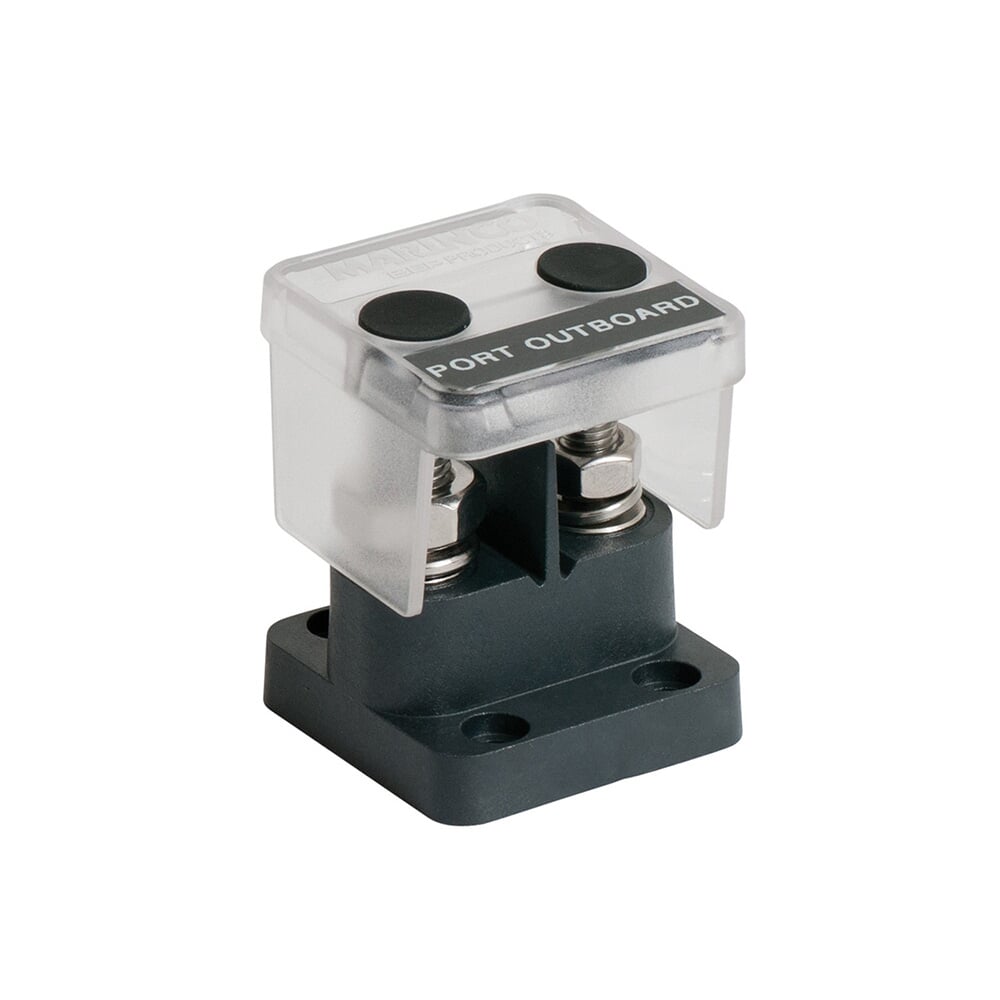

BEP Pro Installer Double 8 mm / 10 mm
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
£44.83
£37.36
Double 8 mm / 10 mm
- Power tapping plate: 4 x 4 mm (5/16)" terminals
- Maximum current through power tapping plate: 50 A per terminal (4 x 50 A maximum)
- Note: no power passes through the stud so no amp rating is given 50 V DC
- High temperature, fiber reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover with snap-out extra cable access
- Stainless steel studs, washers, nuts for longevity in the marine environment
- Insert moulded studs with metric threads
- Double studs feature 'snap out' insulating partition, to allow linking of studs
- Also available to order in BULK. Code: BEP-IST10MM8MMB
Pro Installed Insulated studs are available in single and twin stud versions, featureing 8 mm (5/16") and 10 mm (3/8") variants. A double stud version with 10 mm and 8 mm studs is also included for extending outboard motor cables. The Power Tapping Plate single stud models provide convenient termination points for additional small cables. Pro Installer family features are replicated with these insulated studs, generous stud length, modular footprint , insulating covers with label recess and common interconnection height.
