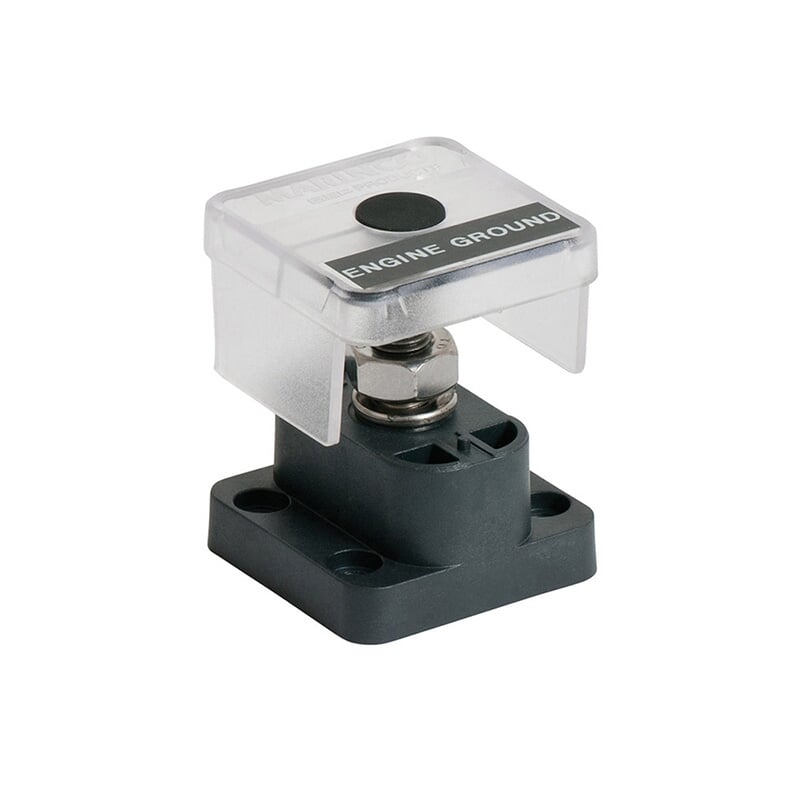

BEP Pro Installer Single 10 MM W/Power Tapping Plate
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
£30.08
£25.07
Single 10 mm with power Tapping Plate
- Power tapping plate: 4 x 4 mm (5/16)" terminals
- Maximum current through power tapping plate: 50 A per terminal (4 x 50 A maximum)
- Note: no power passes through the stud so no amp rating is given 50 V DC
- High temperature, fiber reinforced plastic base provides strength and chemical resistance
- Clear polycarbonate cover with snap-out extra cable access
- Stainless steel studs, washers, nuts for longevity in the marine environment
- Insert moulded studs with metric threads
- Double studs feature 'snap out' insulating partition, to allow linking of studs
- OEM No: BEP-IST10M1SPT
Pro Installed Insulated studs are available in single and twin stud versions, featuring 8 mm (5/16") and 10 mm (3/8") variants. A double stud version with 10 mm and 8 mm studs is also included for extending outboard motor cables. The Power Tapping Plate single stud models provide convenient termination points for additional small cables. Pro Installer family features are replicated with these insulated studs, generous stud length, modular footprint , insulating covers with label recess and common interconnection height.
