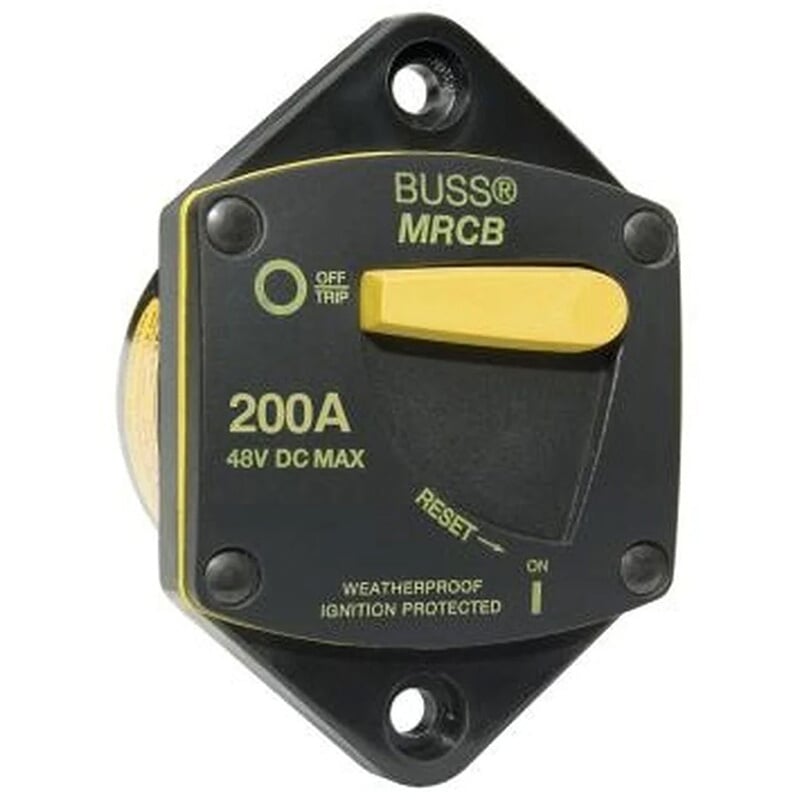

BEP Single Pole Thermal Circuit Breaker 200A (Panel) OEM
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
£163.27
£136.06
Thermal Circuit Breaker - Panel
- Rating: 25 - 200 A, 48 V DC Interrupt Rating: Main Breaker Protection Interrupt Rating (5,000 A @ 14 V DC, 3,000 A @ 28 V DC and 1,500 A @ 48 V DC)
- Operating Temperature Rating: -40°F (-40°C) to 185°F (85°C) Storage Temperature Rating: -40°F (-40°C) to 260F (125°C)
- Materials: Black UL-rated 94V0 thermoset plastic body Cover and level are UL-rated 94V0 thermoplastic Ingress Protection Rating: IP66
- Marking: Standard marking includes amp/volt ratings Termination: 5/16 - 18 threaded studs
- Torque Rating: 75 in-lbs (8.5Nm) max Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6Nm) max
- Compliances: ABYC E-11; CE; SAE J1171 (ignition protected)
- Available in other sizes upon request, from 25 - 105 A
- Rating (A): 200
- OEM No: BEP-MRCBF200AB
Features:
Weatherproof IP66 Design (see inside back cover)
Trip free safety feature
Switchable circuit protection
Easy installation / operation
Ignition Protected
CE Approved
