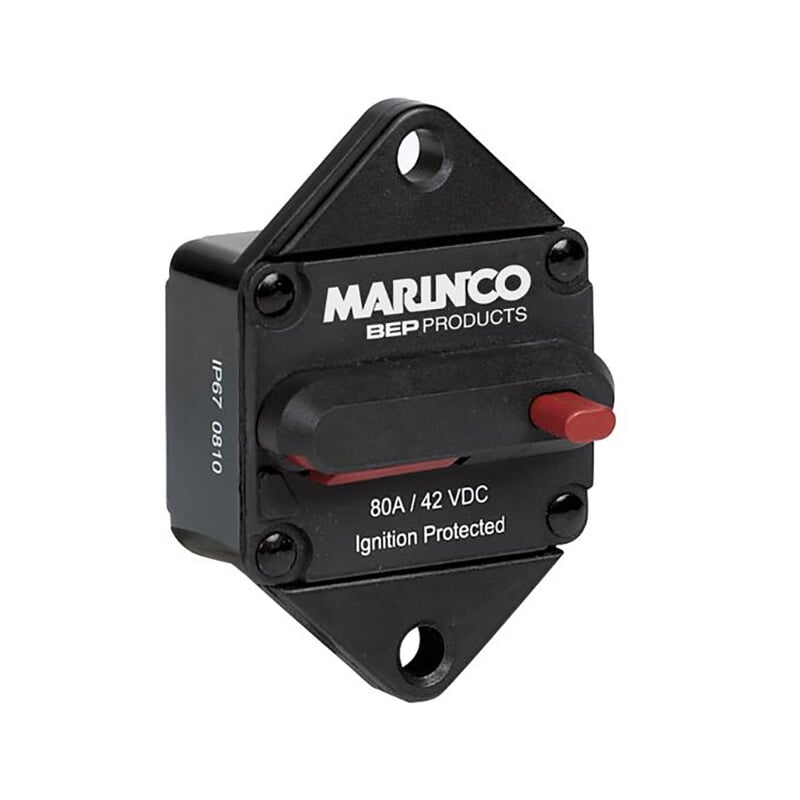

BEP Thermal Breakers - 80 A - Panel Mount (OEM)
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
£88.35
£73.62
Thermal Breakers - 80 A
- Ratings: 30 - 150 A; 30 V DC Interupt Capacity: 3000 A
- Operating Temperature Rating: -25°F (-32°C) to 180°F (82°C) Storage Temperature Rating: -30°F (-34°C) to 300F (149°C)
- Mounting: Panel or Surface
- Terminal Stud Torque: 50 in-lb (5.36Nm)
- Indicator: Series 184 & 185 have a unique reset mechanism providing visible indication of tripped condition
- Ingress Protection Rating: IP67 (see inside back cover)
- Approvals: Complies with SAEJ1635, J1171 and UL1500 (Ignition protected) specifications.
- OEM No: BEP-185030P011
- Rating (A): 200
Applications: Auxillary and accessory circuits - trucks, buses, RV's and marine applications, battery chargers and DC audio systems. Series 184 & 185 are sealed for engine compartment and bilge area applications.
Housing: Thermoset plastic; UL rated 94V0; 311°F (155°C). Stud insulators are provided on covered units with F (surface mount) bases; tin plated copper studs, brass rivets and stainless steel locking nuts.
