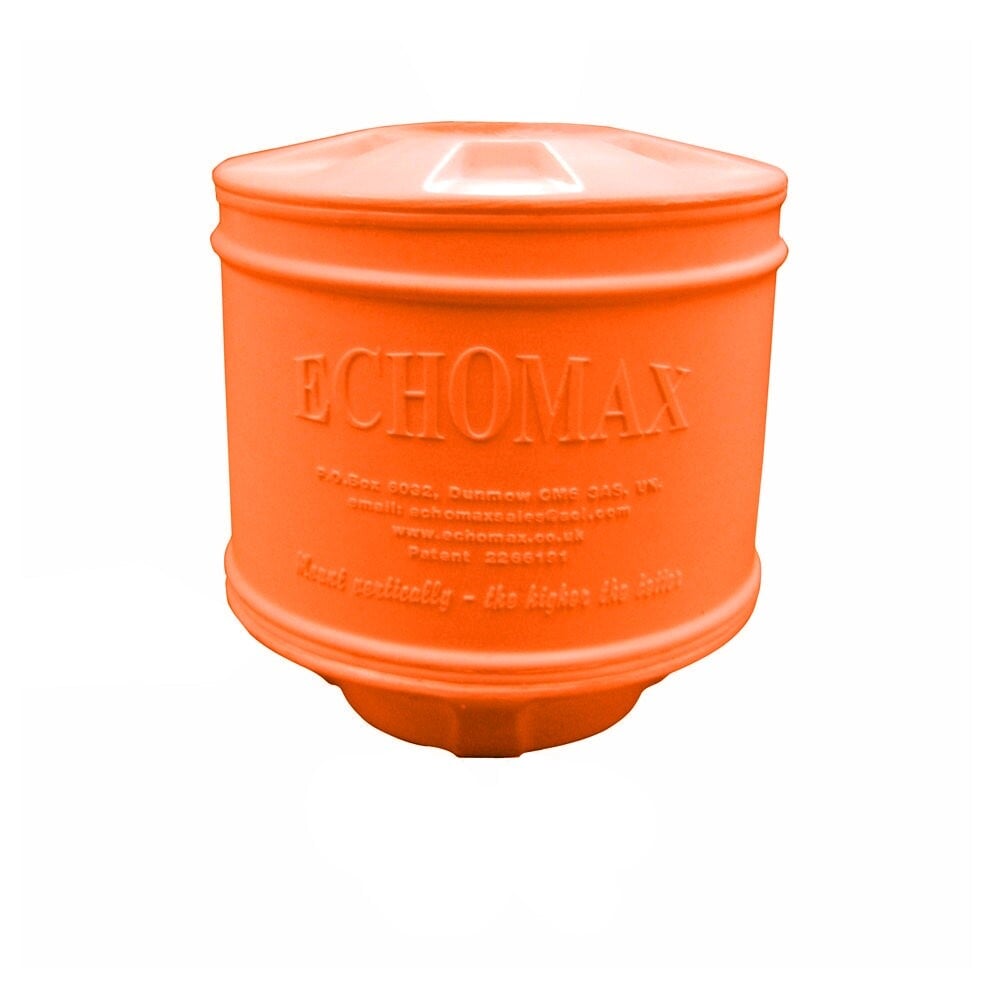

Echomax 9" EM230 Compact Radar Reflector - Orange
Stock expected June
Adapted from the very successful big brother with a high response of 8.3M2. Suitable for 6-9 metre fast fishing boats.
- Fitting kit included
- Maximum response of 8.3M2 average 1.3M2
- Width 245mm Height 268mm with light 340mm
- 150mm Base fitting with 4 x 6mm fixings @ 80mm centres
- Weight: 1.6kg
Adapted from the very successful big brother with a high response of 8.3M2. Suitable for 6-9 metre fast fishing boats. Fit the QD Fitting whilst trailering to avoid damage caused by low obstacles such as trees, garage or barn entrances.
The EM230 Compact is designed for A frames, pole mounting or base mount with suitable base for fixing on wheelhouse roofs. Use four 10mm stainless steel bolts of the appropriate length at 80mm centres. It is essential that 17mm stainless steel washers are used to spread the load between the bolt head and the Echomax flange mount base. As Polyethelene is subject to very slight expansion or contraction due to temperature changes periodical checking of the fixing is advised.
-
