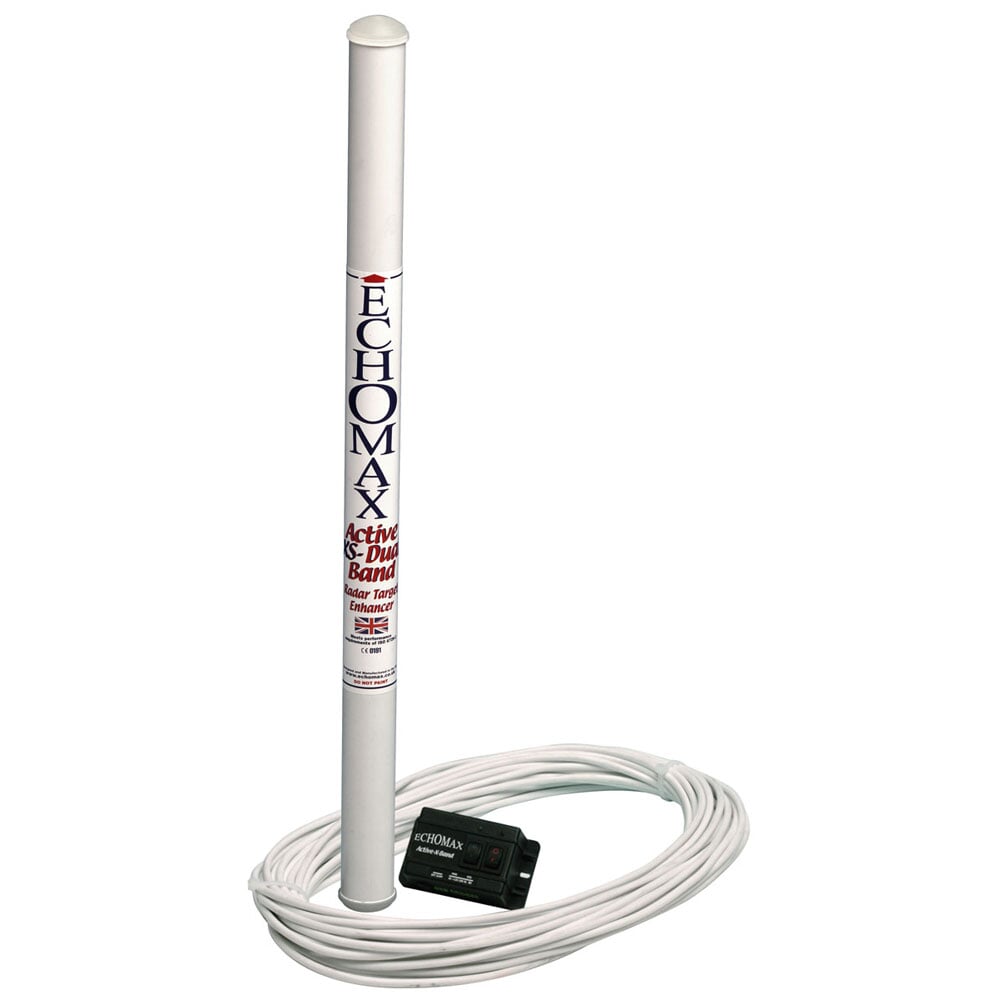

Echomax Active-XS Radar Target Enhancer - 45m cable
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
State of the Art Echomax Active-XS-Dual Band Radar Target Enhancer with minuscule current draw of 23mA on stand by and very high X and S band response many times the new ISO 8729-2 standard. Unique visual facility to identify S or X Band Radar paints. Quadruple alarm facility as standard.
- Reception frequency: X band 9.32 – 9.5 GHz
- Operating Temperature: -20 to +60 degrees C
- Voltage: 12V DC - +30%-10% (voltage surge and cross polarity protected)
- Stand by current consumption: 15mA
- Position accuracy: Within 1 meter
- 5 interrogating radar 23mA
- 10 32mA
- EIRP: 1W
- Antenna length: 478mm
- Antenna width: 40.5mm
- Antenna weight: 327g (Excluding cable)
State of the art Echomax Active-X-Band Radar Target Enhancer receives a signal from transmitting radar, amplifies and returns a stronger signal. This increases the likelihood of detection reducing the risk of collision and helps to alert oncoming vessels of your position.
Active RTE are increasingly being used on navigation buoys and their estimated power consumption can be seen on the Technical info page. Non use of the control box saves 10mA of power.
-
