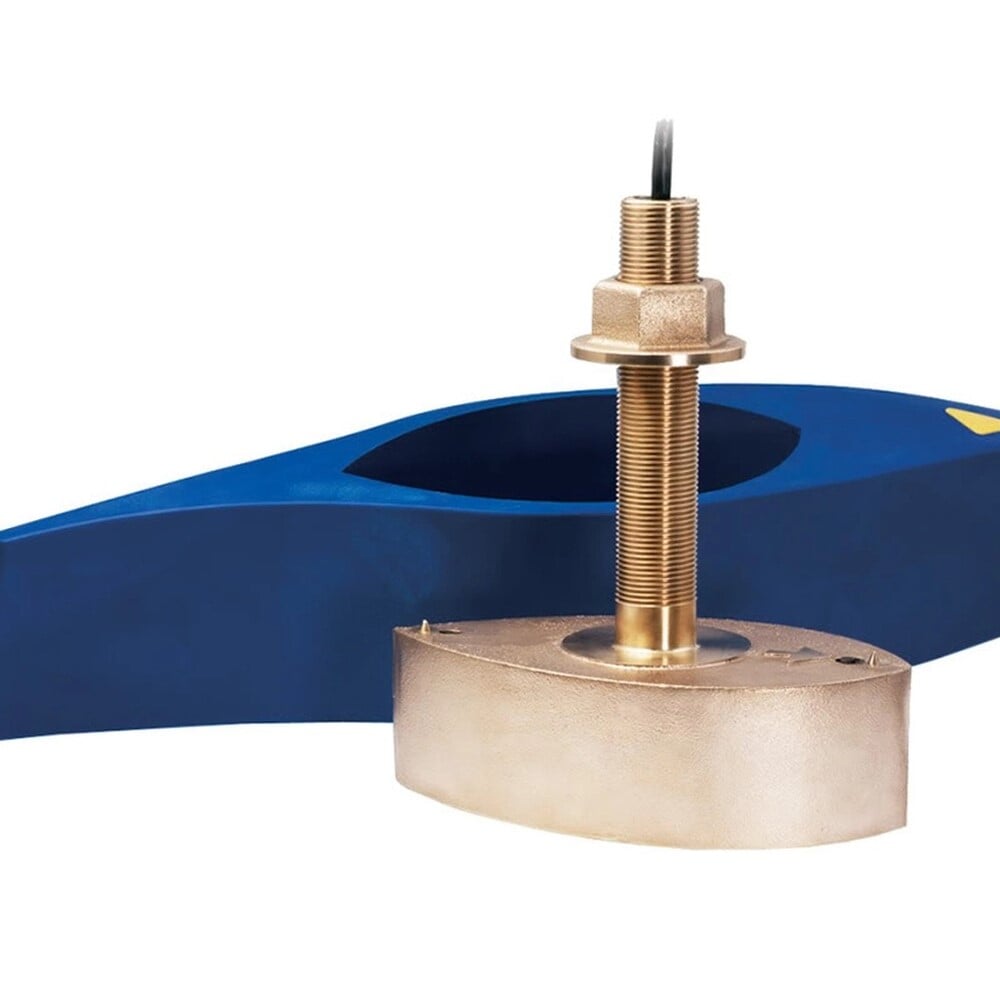

Furuno Airmar B265LH Bronze DFF1-UHD Chirp Thru-hull Transducer

• Weight: 7.3 kg (16 lb.)
• Recommended Boat Length: 8 m (25') and above
• Hull Material: Fiberglass or wood
• Deadrise Angle: Up to 20° with fairing
• Hole Diameter: 33 mm or 1-5/16"
• Acoustic Window: Urethane
• Transducer Element: Eight broadband ceramic assemblies
• Includes: High-performance Fairing and mounting hardware

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz squid—133 kHz and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution bottom discrimination and bait and game-fish separation at all depths.

Airmar's B265LH is packed with a seven-element low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow 10° to 6° beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).
