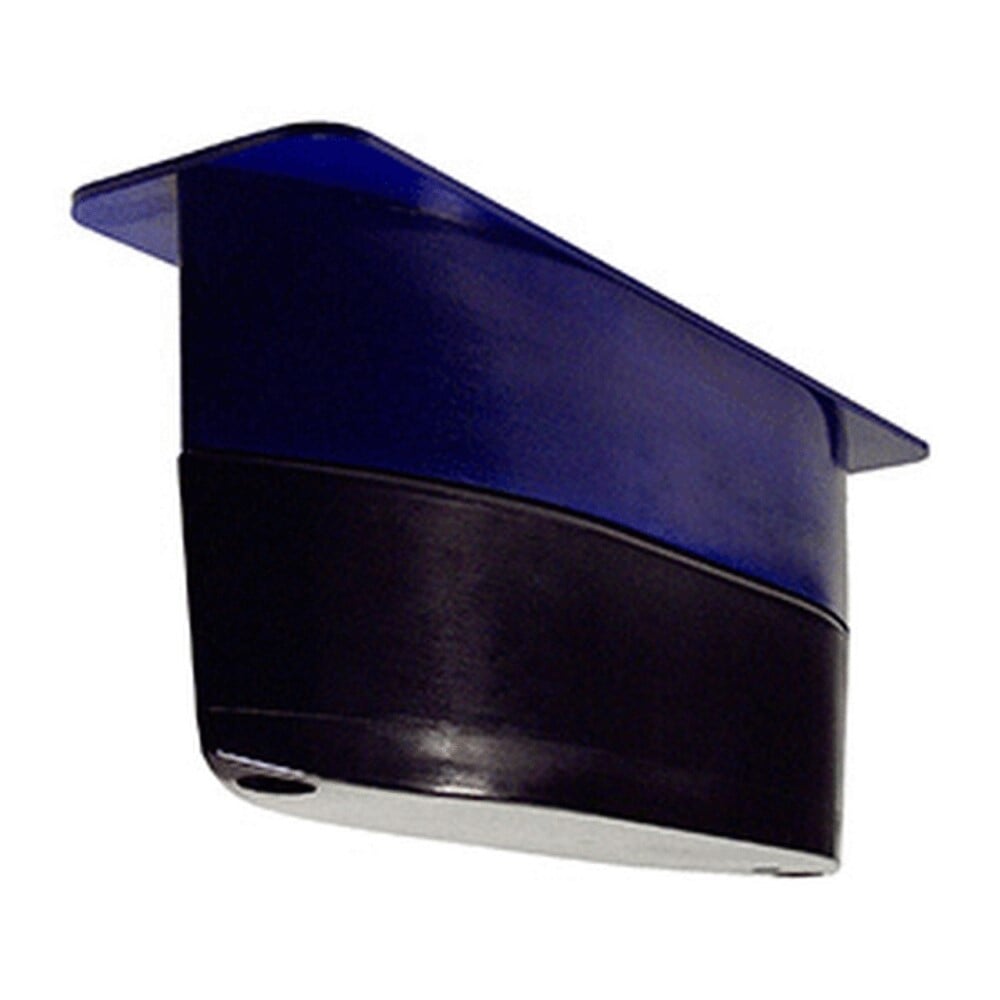

Garmin Airmar R109LHW Plastic Thru-hull 2KW CHIRP Transducer

• Cable length: 49 ft
• Depth/speed/temperature: Depth and Temperature
• Power: 1-2 kW
• Frequency: CHIRP 38-75 kHz & 150-250 kHz
• Supported deadrise/transom angles: 0°-25° degree deadrise
• Maximum depth: 6 000 ft.
• Number of pins: Bare wires
• Beamwidth: 5°x10°-10°x19°/24°-26°

This plastic thru-hull mount transducer uses the low frequencies for deep water performance and high wide frequencies for shallow water performance.

A 2 kW in a slightly smaller package this bare wire transducer has a depth of 6 000 feet; an operating frequency of 38 to 75 kHz and 150 to 250 kHz; a beamwidth of 9x23 degrees or a constant 25 degrees; and a 0 to 25 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
