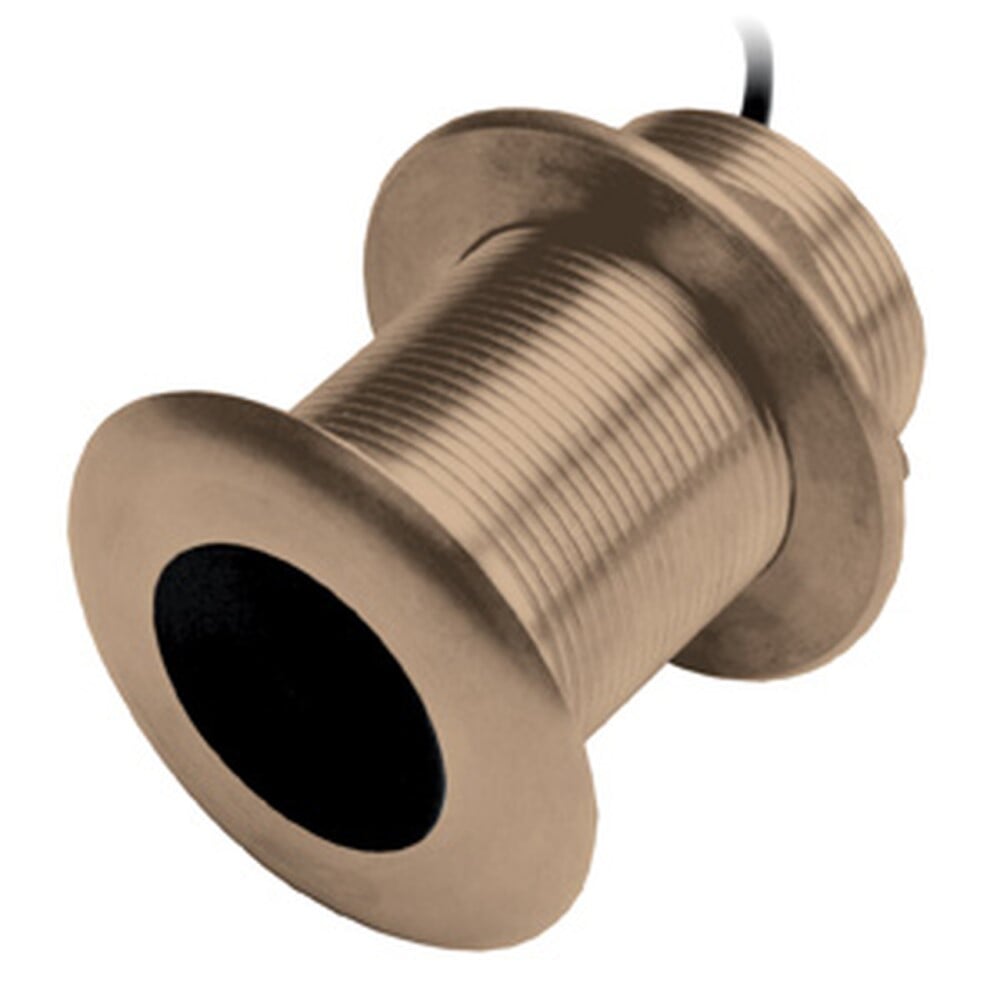

Garmin B175M 20° Tilt 8 Pin Bronze Thru-Hull Transducer

Name: Garmin B175M 20° Tilt 8 Pin Bronze Thru-Hull Transducer
Brand: Garmin
SKU: 230-0101193922
Price: 1327.69 GBP
Availability: BackOrder

Available to order
Estimated Delivery 7 - 14 days

MPN

010-11939-22

RRP £1,630.00

£1,385.50 £1,154.58

Free mainland UK delivery!

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage. The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And, low, medium and high frequency versions provide maximum flexibility for the choice of frequencies.

Details

Cable length: 39 ft
Power: 1 kW
Frequency: CHIRP (85-135 kHz)
Maximum depth: 1 500 ft.
Number of pins: 8-pin
Beamwidth: 11°-16°
Depth/speed/temperature: Depth and Temperature
Supported deadrise/transom angles: 16°-24° degree deadrise

Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.

The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. And low medium and high frequency versions provide maximum flexibility for the choice of frequencies.

An excellent choice for fiberglass and wood hulls this 8-pin transducer has a depth of 1 700 ft; an operating frequency of 85-135 kHz; a beamwidth of 11-16 degrees; and a 16 to 24 degree deadrise.

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
