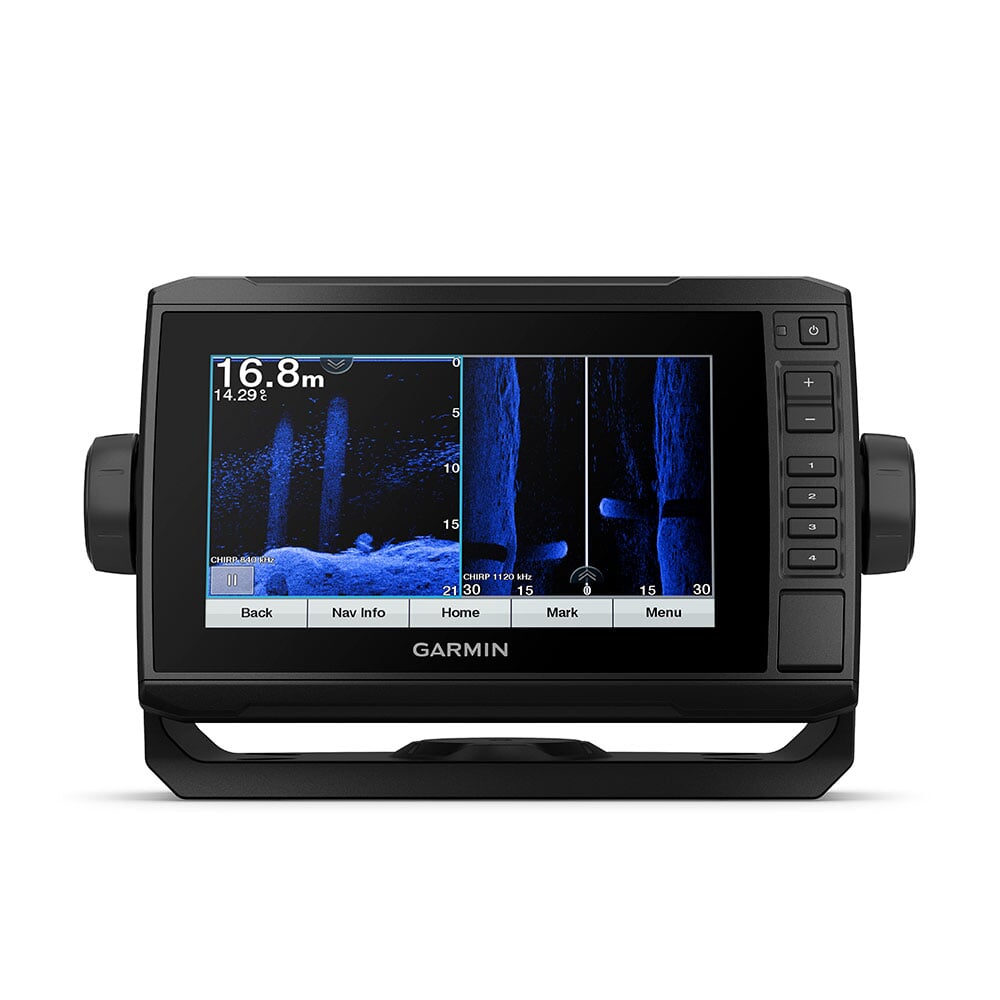

Garmin ECHOMAP UHD 75sv
Ready to dispatch
Free mainland UK delivery!
Find more fish using the ECHOMAP UHD 75 combo. It features a bright, sunlight-readable 7” touchscreen with keyed assist plus support for Ultra High-Definition ClearVü and SideVü scanning sonar or Garmin high wide CHIRP traditional sonar.
- Preloaded Navionics+ charts for the United Kingdom, Ireland and Northwest mainland Europe coast
- Share data with other devices on the network
- Manage the marine experience from nearly anywhere
- Control the most powerful trolling motor available
- Create sonar maps on the fly
Technical Specifications
XGeneral | |
---|---|
Dimensions | 25 x 13.9 x 5.1 cm |
Input | Touchscreen with Keyed Assist |
Display Size | 15.5 x 8.6 cm, 17.8cm (7") Diagonal |
Display Resolution | 400 x 800 pixels |
Display Type | WVGA Display |
Weight | 0.77Kg |
Water Rating | IPX7 |
Mounting Options | Bail, or Flush |
Maps & Memory | |
---|---|
Accepts Data Cards | 1 microSD Card, Max: 32GB |
Waypoints | 5,000 |
Track Points | 50,000 |
tracks | 50 Saved Tracks |
Navigation Routes | 100 |
Sensors | |
---|---|
Built-in Receiver | ✓ |
Receiver | 5 Hz |
NMEA 2000 Compatible | ✓ |
NMEA 0183 Compatible | ✓ |
GPS | ✓ |
Supports WAAS | ✓ |
Built-in Maps | |
---|---|
LakeVu (Inland) | ✓ |
Tidetables | ✓ |
Optional Map Support | |
---|---|
LakeVu G3 | ✓ |
LakeVu G3 Ultra | ✓ |
Garmin Navionics+ | ✓ |
Garmin Navionics Vision+ | ✓ |
TOPO | ✓ |
Standard Mapping | ✓ |
Garmin Quickdraw Contours | ✓ |
Chartplotter Features | |
---|---|
AIS | ✓ |
DSC | ✓ |
Fusion-Link | ✓ |
ActiveCaptain App Compatible | ✓ |
Wireless Remote Compatible | ✓ |
Sailing Features | ✓ |
Sonar Features & Specifications | |
---|---|
Displays Sonar | ✓ |
Power Output | 500W |
Traditional Sonar | Single Channel CHIRP 70/83/200 kHz, L/M/H CHIRP |
ClearVu | 260/455/800/1000/1200 kHz |
SideVu | 260/455/800/1000/1200 kHz |
Panoptix Sonar | ✓ |
Livescope | ✓ |
Connections | |
---|---|
NMEA 2000 Ports | 1 |
NMEA 0183 Input Ports | 1 Diffential |
Video Input Ports | None |
Video Output Ports | None |
Garmin Marine Network Ports | None |
12-Pin Tranducer Ports | 1 |
Electrical Features | |
---|---|
Power Input | 9 - 18 VDC |
Typical Current Draw at 12V | 0.8A |
Max Current at 12V | 1.25A |
Max Power Use at 10V | 15W |
Take fishing to the next level.
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast featuring integrated Garmin and Navionics® content.
Quickdraw Contours
Create personalised fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the QuickDraw™ Community on Garmin Connect™.
Boat Connected.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).
NMEA 2000® and NMEA 0183 Networks
Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.
Activecaptain® App
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin QuickDraw Community data and more.
Force™ Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.
In The Box
- ECHOMAP UHD 75sv with UK Chart
- Charging/data cable
- Tilt/swivel mount with quick release cradle
- Flush mount
- Protective cover
- Hardware
- Documentation
-
