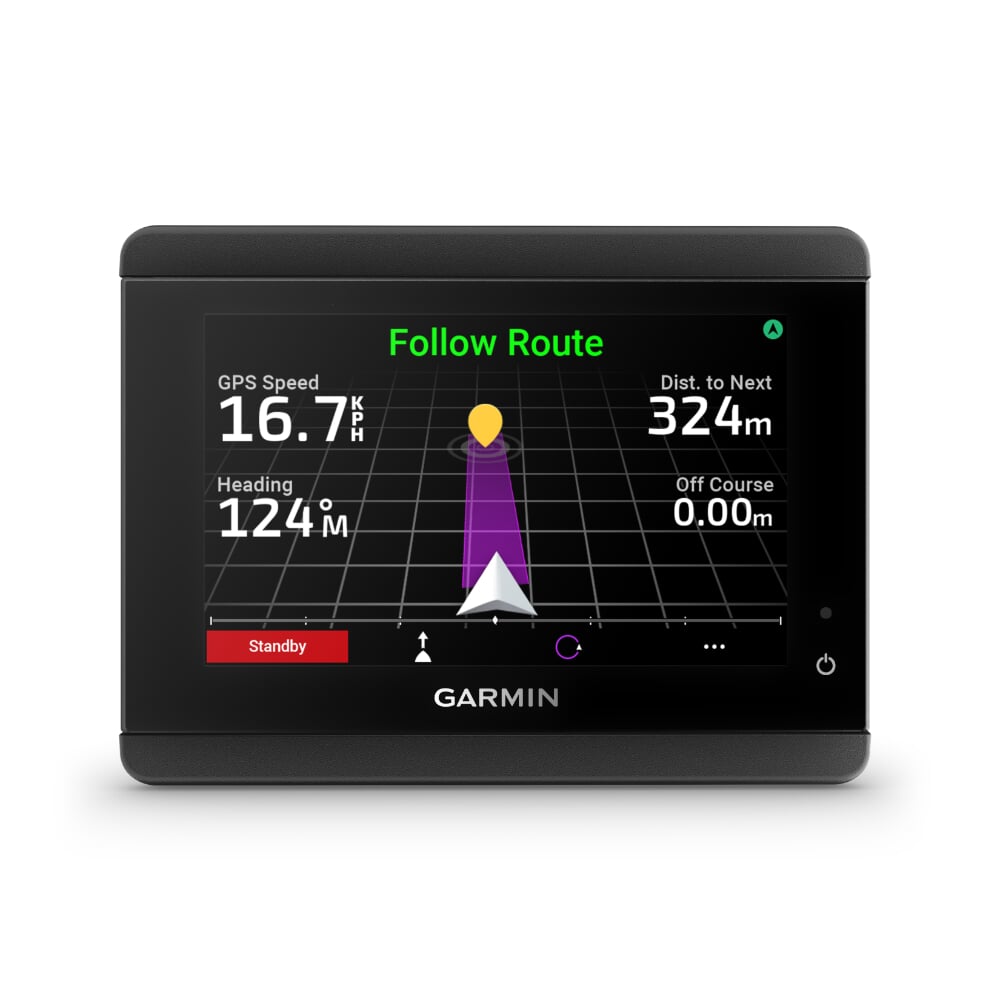

Garmin GHC 50 Marine Autopilot Instrument

• Dimensions: 4.13 x 4.51 x 2.01 (105 x 140 x 51 mm)
• Display resolution: 800 x 480
• Display type: WVGA
• Weight: 11.57 oz (328 g)
• Water rating: IPX7
• Mounting options: Flat or flush
• Connections: 1 NMEA 2000 ports 1 Garmin Marine Network ports ANT+ Garmin WiFi Network.
• Power input: 9 to 32 Vdc
• Typical current draw at 12 VDC: 220 mA
• Maximum current draw at 12 VDC: 400 mA
• Maximum power usage at 10 VDC: 4.9 W

Control the Boat with Confidence

When ready to discover paradise the GHC 50 autopilot instrument helps navigate with ease - wherever the waters go.

• A 5″ touchscreen interface with a bright display? Call it navigating with a simple touch.
• Sleek. That's the look with the instrument's edge-to-edge glass design.
• Share settings with Garmin MFDs and watch the integrated system come to life.
• From the Garmin Marine Network (GMN) to wireless connectivity there are many ways to connect to the autopilot.
• Control the boat with wired or wireless remote-controlled options.

Plot course to Paradise

Easy Navigation and Readability: The bright 5″ WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

Seamless Design Integration: With a premium industrial design and edge-to-edge glass display the GHC 50 autopilot instrument aligns perfectly with all GPSMAP chartplotters creating a stunning look for the helm.

Wired or Wireless Operation: Control the autopilot instrument via wire or a wireless remote for a navigation experience that works best for the boat.

Connect to Everything on the Boat

Integrate the System: If there are multiple compatible Garmin devices on your boat share information among them for a more integrated marine system.

Compatibility: GHC 50 works with all GHP Reactor autopilots select quatix multisport marine smartwatches the Garmin autopilot remote and GRID 20 remote.

In the Box

• GHC 50
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• Garmin Marine Network cable
• Garmin Marine Network adapter cable
• NMEA 2000 drop cable
• NMEA 2000 T-connectors and terminators
• Documentation
