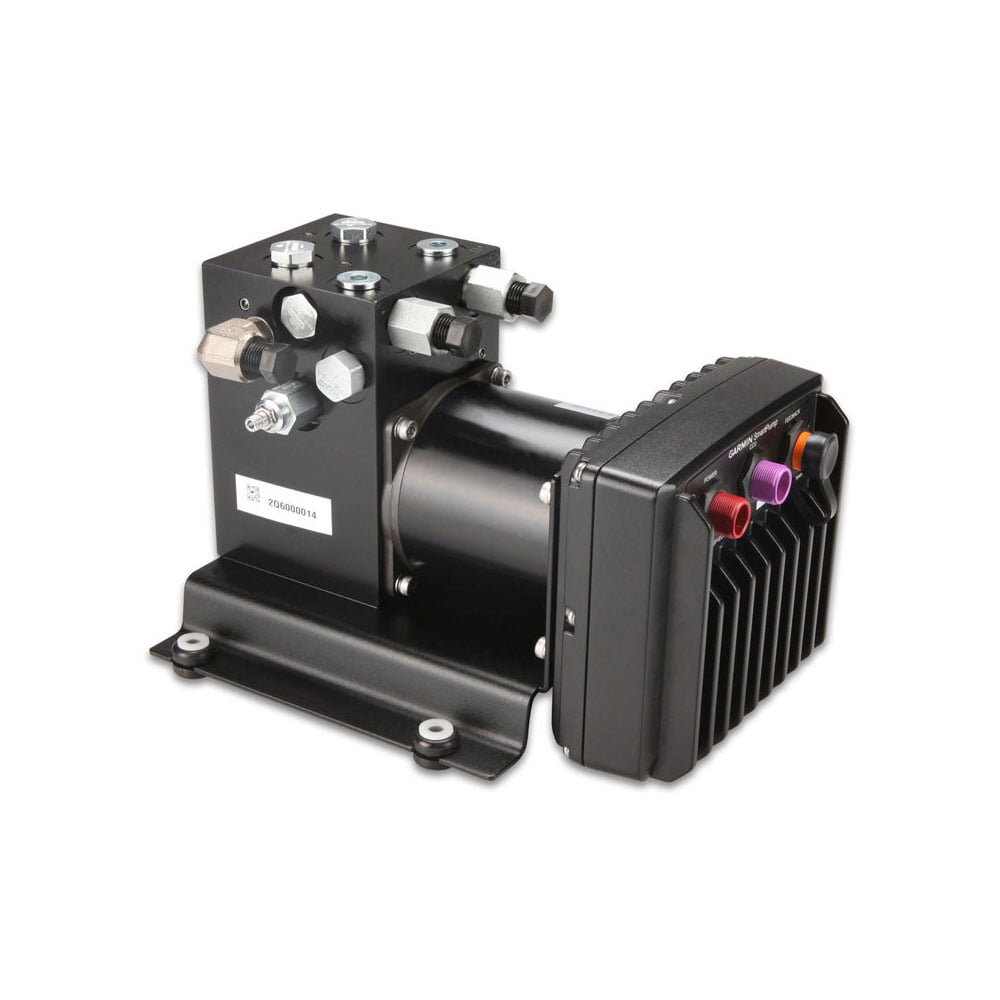

Garmin GHP Autopilot SmartPump
Free mainland UK delivery!
The SmartPump puts an end to guessing which pump size will work with any particular boat. One SmartPump works for most boats, giving you the assurance that you have the right pump for optimum control and confidence.
- Dimensions: 7 3/4" x 7 1/2" x 9 5/8" (197 x 190 x 244mm)
- Weight: 16.5 lbs (7.5 kg)
- Temperature range: 5°F to 131°F (from -15°C to 55°C)
- Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
- Power cable length: 9 ft (2.7 m)
- Power input: 11.5-30 Vdc
- Fuse: 40 A, blade-type
- Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
- Flow rate: Configurable from 0 to 2.4 L per minute
- Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in
Put an end to guessing which pump size will work with any particular boat. One SmartPump works for most boats and applications. You know you have the right pump for the boat for optimum control and confidence. Plus, you get complete control in a smaller size with better thermal performance, higher reliability and lower power consumption. It also includes color-coded connectors to make it very easy to install.
The Garmin SmartPump is engineered from corrosion-resistant components including black dye on aluminum parts and nickel-plating on all steel parts.
-
