Garmin GPSMAP 1223xsv - Chartplotter, Sonar & GMR HD+ Radome
Free mainland UK delivery!
Get a sharper view from your connected helm with the GPSMAP 1223 chartplotter. With its high-resolution 12” in-plane switching display, ultrasleek design and vivid sonar colour palette, it seamlessly integrates into your Garmin marine system. GPSMAP 1223xsv also features built-in Ultra High-Definition SideVü and ClearVü scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar, Panoptix LiveScope sonar and Auto Guidance technology.
- Easily integrate with more engines
- Connect to compatible third-party devices with OneHelm digital switching
- Easily build your marine system using the best of network connectivity
- Navigate any waters with preloaded mapping and coastal charts
- See below your boat with built-in sonar capabilities
- Manage your marine experience from nearly anywhere

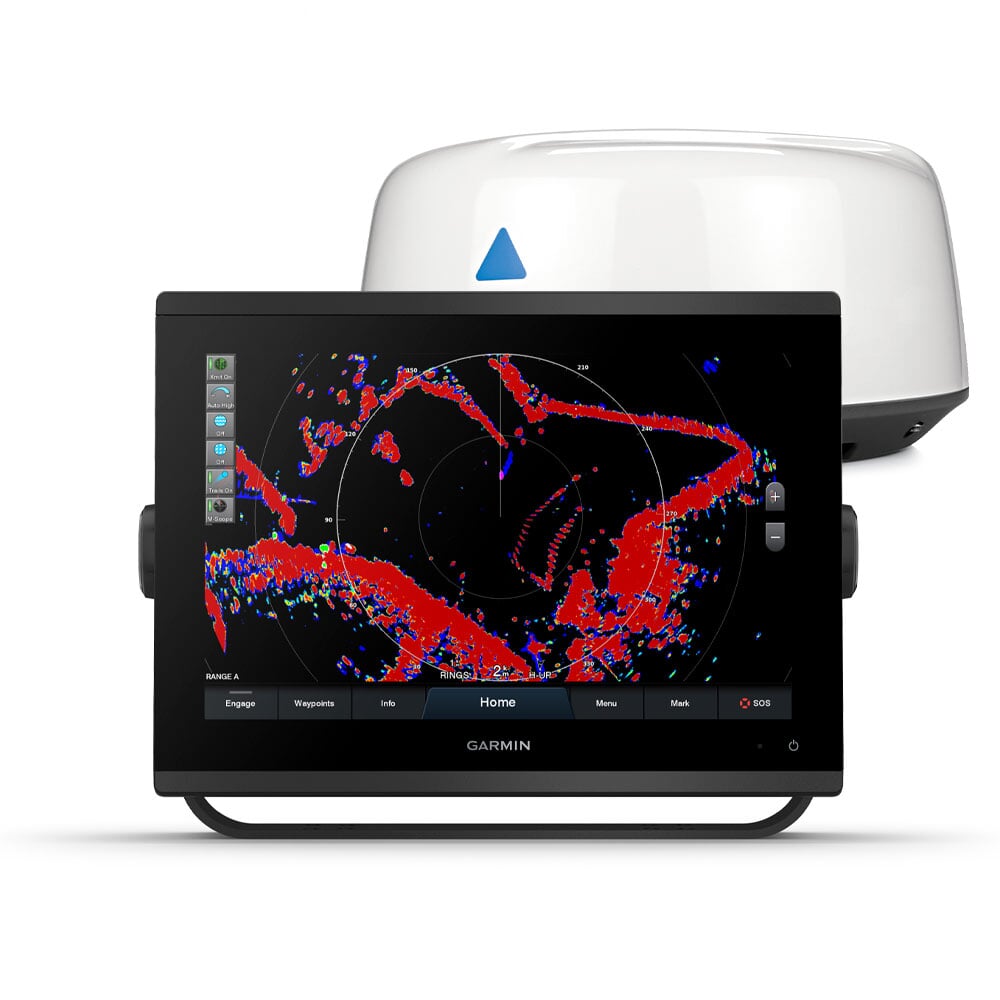

- Includes GMR 18 HD+ Radome
Technical Specifications
XGeneral | |
---|---|
Dimensions | 30.8 x 22.8 x 8.2 cm (10.3" x 6.4" x 12.1") |
Input | Touchscreen |
Display Size | 26.2 x 16.3 cm 30.7 cm (12.1") Diagonal |
Display Resolution | 1280 x 800 pixels |
Display Type | WXGA Display |
Weight | 3Kg |
Water Rating | IPX7 |
Mounting Options | Bail or Flush |
Maps & Memory | |
---|---|
Accepts Data Cards | 2 microSD Cards (back of unit) |
Waypoints | 5,000 |
Track Points | 50,000 |
tracks | 50 Saved Tracks |
Navigation Routes | 100 |
Sensors | |
---|---|
Built-in Receiver | ✓ |
Receiver | 10 Hz High-sensitivity |
NMEA 2000 Compatible | ✓ |
NMEA 0183 Compatible | ✓ |
GPS | ✓ |
GLONASS | ✓ |
GALILEO | ✓ |
Supports WAAS | ✓ |
Built-in Maps | |
---|---|
Built-in Auto Guidance | ✓ |
BlueChart (Coastal) | ✓ |
LakeVu (Inland) | ✓ |
Tidetables | ✓ |
Optional Map Support | |
---|---|
LakeVu G3 | ✓ |
LakeVu G3 Ultra | ✓ |
Garmin Navionics+ | ✓ |
Garmin Navionics Vision+ | ✓ |
TOPO | ✓ |
Standard Mapping | ✓ |
Garmin Quickdraw Contours | ✓ |
Raster Chart Support | ✓ |
Chartplotter Features | |
---|---|
Garmin Smartmode Compatible (Customisable Monitor Presets) | ✓ |
AIS | ✓ |
DSC | ✓ |
Fusion-Link | ✓ |
GSD Black Box Sonar Support | ✓ |
GCV Black Box Sonar Support | ✓ |
ActiveCaptain App Compatible | ✓ |
GRID (Garmin Remote Input Device) Compatible | ✓ |
Wireless Remote Compatible | ✓ |
Sailing Features | ✓ |
Spoken Audo Alerts | ✓ |
OneHelm Support | ✓ |
Sonar Features & Specifications | |
---|---|
Displays Sonar | ✓ |
Power Output | 1kW |
Traditional Sonar | Built-in (Single channel CHIRP, 70/83/200 kHz, L/M/H CHIRP) |
ClearVu | Built-in 260/455/800/1,000/1,200 kHz |
SideVu | Built-in 260/455/800/1,000/1,200 kHz |
Panoptix Sonar | ✓ |
Livescope | ✓ |
Connections | |
---|---|
NMEA 2000 Ports | 1 |
NMEA 0183 Input Ports | 1 |
NMEA 0183 tx Ports | 1 |
Video Input Ports | 1 BNC |
Video Output Ports | 1 HDMI |
J1939 Ports | 1 |
Garmin Marine Network Ports | 2 |
12-Pin Transducer Ports | 1 |
USB Ports | ✓ |
BNC External GPS Antenna Ports | ✓ |
Bluetooth Calling | ✓ |
ANT+ Connectivity | ✓ |
Garmin Wi-Fi Network | ✓ |
Electrical Features | |
---|---|
Power Input | 10 - 32 VDC |
Typical Current Draw at 12V | 1.68A |
Max Current at 12V | 3.56A |
Max Power Use at 10V | 43W |
GMR 18HD+ Radome | |
---|---|
Dimensions | Diameter: 50.8cm (20") Height: 24.8cm (9.75") |
Weight | 7.7kg (17lbs) |
Water Rating | IPX7 |
Antenna Length | 43.18cm (17") |
Rotation Speed | 24rpm |
Beam Width | Horizontal: 5.2° Vertical: 25° |
Max Range | 36nm |
Minimum Range | 20m |
Radar Type | Radome |
Radome Electrical Features | |
---|---|
Power Input | 11 - 35 VDC |
Transition Power | 4kW |
Radar Features | |
---|---|
Radar Overlay Support | ✓ |
Dual Radar | ✓ |
Dynamic Auto Gain | ✓ |
MARPA Target Track | Yes (Requires heading sensor - Sold seperately) |
Includes GMR 18 HD+ Radome
This 18" dome radar enhances situational awareness with 4kW of transmit power and clear echo definition at all ranges and helps you avoid traffic on the water.
Ultra High-Definition Scanning Sonar
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP 1223xsv also supports 1 kW CHIRP traditional sonar capabilities.
Panoptix Sonar Support
Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.
Faster, Sharper, Smarter
With its ultrasleek design, vivid sonar colour palette and high-resolution 12-inch in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.
Optional Bluechart G3 Vision Charts
These optional charts offer the best of Garmin and Navionics data, Auto Guidance3 technology and other premium navigation features.
Garmin Marine Network
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.
NMEA 2000 and NMEA 0183 Networks
Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.
Activecaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more.
Integrated ANT Technology
Connect with some of your favourite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.
J1939 Connectivity
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.
Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
In The Box
- GPSMAP 1223xsv chartplotter
- microSD card preinstalled
- Power cable
- NMEA 2000 T-connector
- NMEA 2000 drop cable (2 metres)
- 8-pin transducer to 12-pin sounder adapter cable
- Bail mount kit with knobs
- Flush mount kit with gasket
- Protective cover
- Trim piece snap covers
- Documentation
- GMR 18 HD+ radome
- Radome Mounting hardware kit
- Radar Power cable (15 metres)
- Radar Network cable (15 metres)
- Installation instructions
- Mounting template
-
