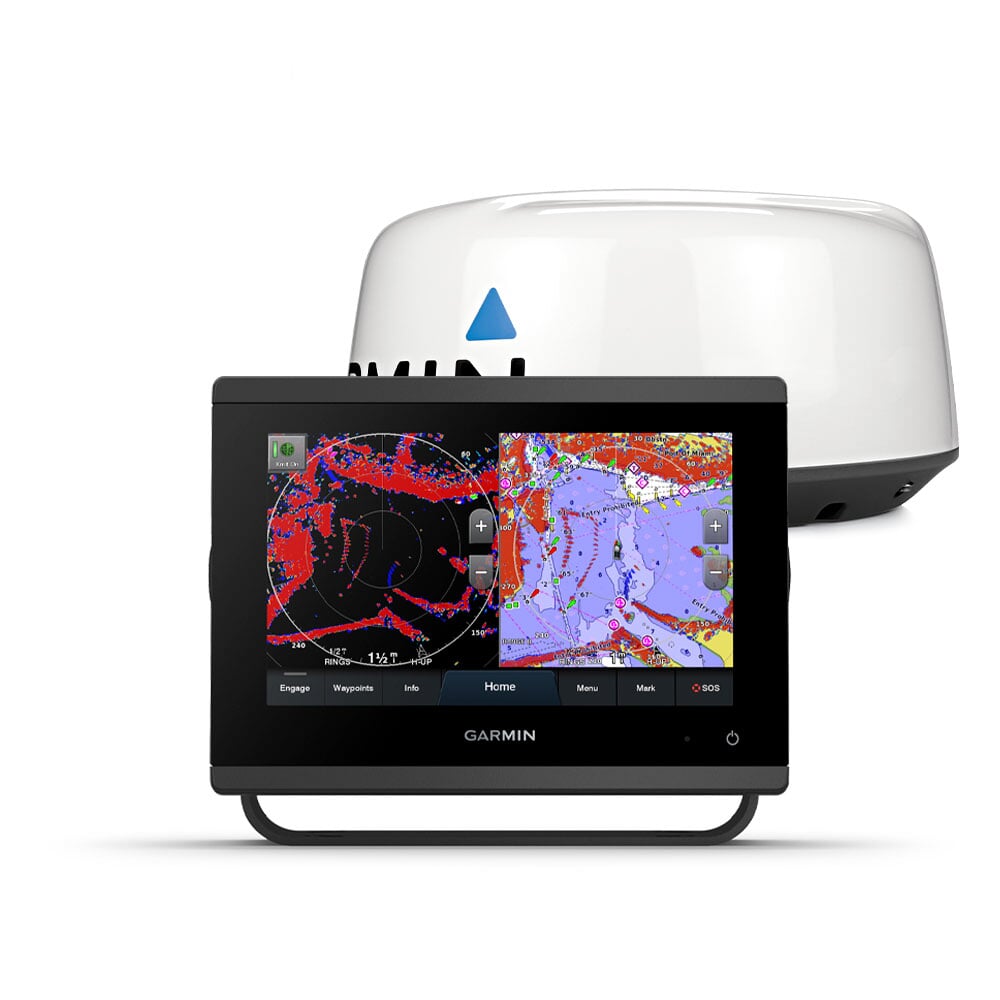

Garmin GPSMAP 723xsv - Chartplotter, Sonar & GMR HD+ Radome

Name: Garmin GPSMAP 723xsv - Chartplotter, Sonar & GMR HD+ Radome
Brand: Garmin
SKU: 230-0100236550
Price: 1894.55 GBP
Availability: OutOfStock

Out of stock

MPN

010-02365-50

£1,894.55 £1,578.79

This product has been discontinued

Free mainland UK delivery!

Get a sharper view from your connected helm with the GPSMAP 723 chartplotter. Its higher-resolution 7” display has 60% more pixels than previous-generation touchscreens. And with its compact footprint, vivid sonar colour palette and nearly double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. The GPSMAP 723xsv also features built-in Ultra High-Definition SideVü and ClearVü scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar, Panoptix LiveScope sonar and Auto Guidance technology.

Details

GPSMAP 723xsv

Easily integrate with more engines
Connect to compatible third-party devices with OneHelm digital switching
Easily build a marine system using the best of network connectivity
Compatible with premium maps and charts for the best in Garmin navigation
Take the guesswork out of sailing with clear laylines and more - right on the screen
Manage the marine experience from nearly anywhere

GMR 18 HD+ Radome

If the boat has limited space for radar placement, this compact dome is perfect
It packs the power and echo definition needed at all ranges
When weather and sea conditions shift, the gain and sea filter do too automatically
Add even more detail to the chartplotter’s map page with radar overlay

Specification Manual GPSMAP Installation Radome Installation GPSMAP Template Radome Template

GPSMAP 723xsv General Specifications
Dimensions	19.2 x 14 x 7.4CM (7.6" x 5.5" x 2.9")
Input	Touchscreen
Display Size	15.4 x 9.1cm, 17.8cm (7") Diagonal
Display Resolution	1024 x 600 pixels
Display Type	WSVGA Display
Weight	1.3Kg
Water Rating	IPX7
Mounting Options	Bail, Flush or Flat

Maps & Memory
Accepts Data Cards	2 microSD Cards (back of unit)
Waypoints	5,000
Track Points	50,000
tracks	50 Saved Tracks
Navigation Routes	100

Sensors
Built-in Receiver	✓
Receiver	10 Hz High-sensitivity
NMEA 2000 Compatible	✓
NMEA 0183 Compatible	✓
GPS	✓
GLONASS	✓
GALILEO	✓
Supports WAAS	✓

Built-in Maps
Built-in Auto Guidance	✓
BlueChart (Coastal)	✓
LakeVu (Inland)	✓
Tidetables	✓

Optional Map Support
LakeVu G3	✓
LakeVu G3 Ultra	✓
Garmin Navionics+	✓
Garmin Navionics Vision+	✓
TOPO	✓
Standard Mapping	✓
Garmin Quickdraw Contours	✓
Raster Chart Support	✓

Chartplotter Features
Garmin Smartmode Compatible (Customisable Monitor Presets)	✓
AIS	✓
DSC	✓
Fusion-Link	✓
GSD Black Box Sonar Support	✓
GCV Black Box Sonar Support	✓
ActiveCaptain App Compatible	✓
GRID (Garmin Remote Input Device) Compatible	✓
Wireless Remote Compatible	✓
Sailing Features	✓
Spoken Audo Alerts	✓
OneHelm Support	✓

Sonar Features & Specifications
Displays Sonar	✓
Power Output	1kW
Traditional Sonar	Built-in (Single channel CHIRP, 70/83/200kHz, L,M,H CHIRP)
ClearVu	Built-in 260/455/800/1000/1200kHz
SideVu	Built-in 260/455/800/1000/1200kHz
Panoptix Sonar	✓
Livescope	✓

Connections
NMEA 2000 Ports	1
NMEA 0183 Input Ports	1 Diffential
NMEA 0183 tx Ports	1
Video Input Ports	1 BNC
J1939 Ports	1
Garmin Marine Network Ports	1
12-Pin Transducer Ports	1
USB Ports	✓
BNC External GPS Antenna Ports	✓
Bluetooth Calling	✓
ANT+ Connectivity	✓
Garmin Wi-Fi Network	✓

Electrical Features
Power Input	10 - 32 VDC
Typical Current Draw at 12V	1.18A
Max Current at 12V	2.96A
Max Power Use at 10V	35.9W

GMR 18 HD+ Radome Specifications
Dimension	50.8cm (20")Diameter, 24.8cm (9.75")High
Weight	7.7Kg
Water Rating	IPX7
Antenna Length	43.18cm (17")
Rotation Speed (RPM)	24rpm
Beam Width	5.2° Horizontal, 25° Vertical
Max Range	36nm
Minimum Range	20 Meters
Radar Type	Radome

Radar Electrical Features
Power Input	11-35VDC
Transition Power	4kW

Radar Features
Radar Overlay Support	✓
Dual Radar	✓
Dynamic Auto Gain	✓
MARPA Target Track	Yes (Requires Heading Sensor, Sold separately)

Get A Sharper View From A Connected Helm

With its sleek design, powerful processing and upgraded IPS display, this advanced 7” chartplotter integrates seamlessly into the Garmin marine system. The 18-inch dome radar enhances situational awareness with 4-kW of transmit power and clear echo definition at all ranges and helps avoid traffic on the water.

See The World Below

Ultra High-Definition Scanning Sonar - Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP X3 series also supports 1 kW CHIRP traditional sonar capabilities.

Panoptix Sonar Support - Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required, sold separately) to see all around the boat in real time.

Made For The Helm

Faster, Sharper, Smarter - With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

Improved Display Optics - New higher-resolution 7-inch displays offer improved sunlight readability with 60% more pixels than previous-generation 7-inch GPSMAP devices.

Preloaded Mapping - Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

Optional Charts And Maps - Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

Includes GMR 18 HD+ Radome - To help avoid weather and traffic on the water, the compact 4 kW GMR™ 18 HD+ dome radar is bundled option with this GPSMAP chartplotter/sonar package

Sail And Navigate With Ease

Garmin SailAssist Sailing Features - View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

Sailing Polars - Use the polar table to see key data, including how fast you should go at a certain wind angle and speed - so you know whether you need to adjust sail trim.

Garmin Marine Network - Share information - such as maps, user data, radar and IP camera video among multiple compatible Garmin devices on the boat.

NMEA 2000 And NMEA 0183 Networks - Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ActiveCaptain App - Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more.

Integrated ANT Technology - Connect with some of your favourite devices, such as quatix marine watches, gWind Wireless 2 transducers transducers, GNX Wind marine instruments and wireless remote controls.

J1939 Connectivity - Now you can connect the chartplotter to different kinds of engines, including select Yamaha engines.

OneHelm Feature - This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
