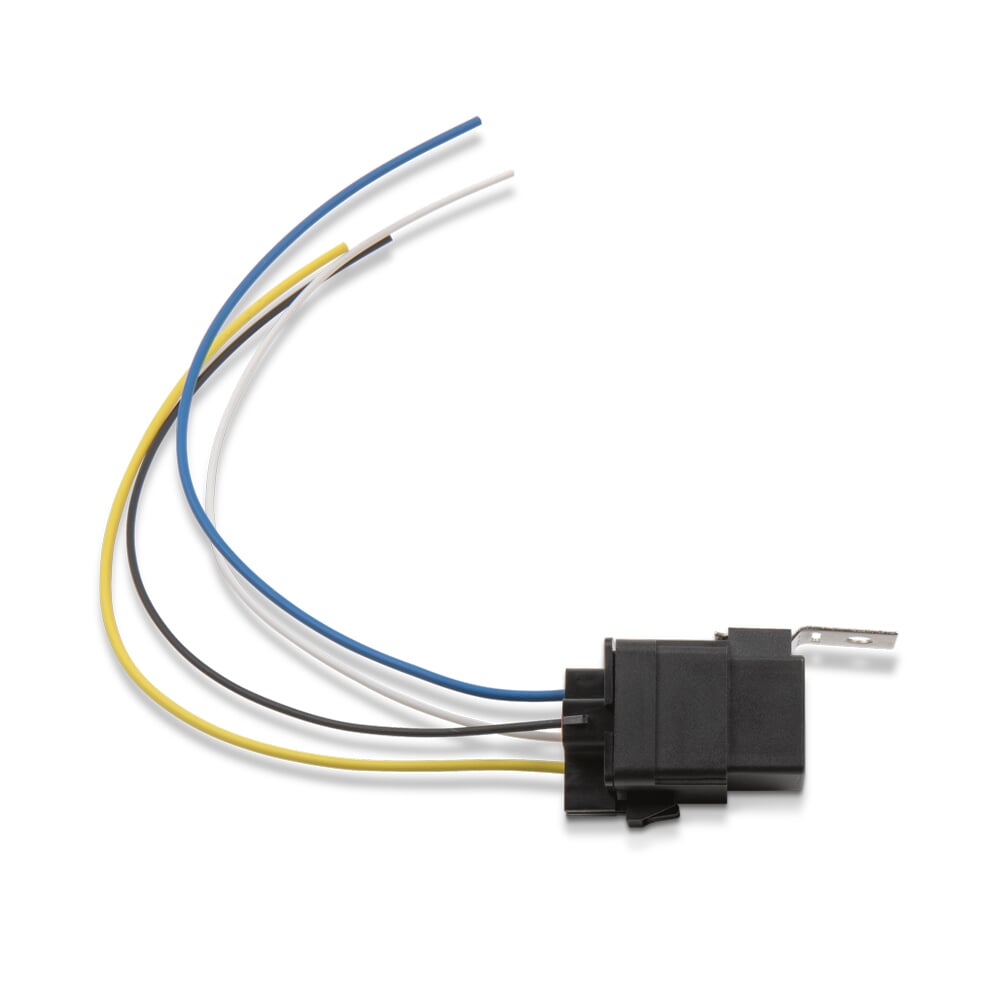

Garmin OnDeck Relay Switch (24Vdc)

• Requires: Garmin OnDeck Hub
• Operating temperature range: From -15°-85°C (from 5°-185°F)
• Storage temperature range: From -40°-155°C (from -40°-311°F)
• Control voltage (coil): 15.6-31.2 Vdc
• Load power min. (contacts): 0.1A
• Load power max. (contacts): Up to 9A at 10-16 Vdc Up to 8A at 20-32 Vdc

Control your vessel remotely using the OnDeck Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control. Verify that the input power for your OnDeck Hub operates between 15.6 Vdc and 31.2 Vdc to ensure compatibility with your system.

To avoid potential damage to the relay switch GTB 10 black box device and device being switched you must install this relay switch in a dry location.
