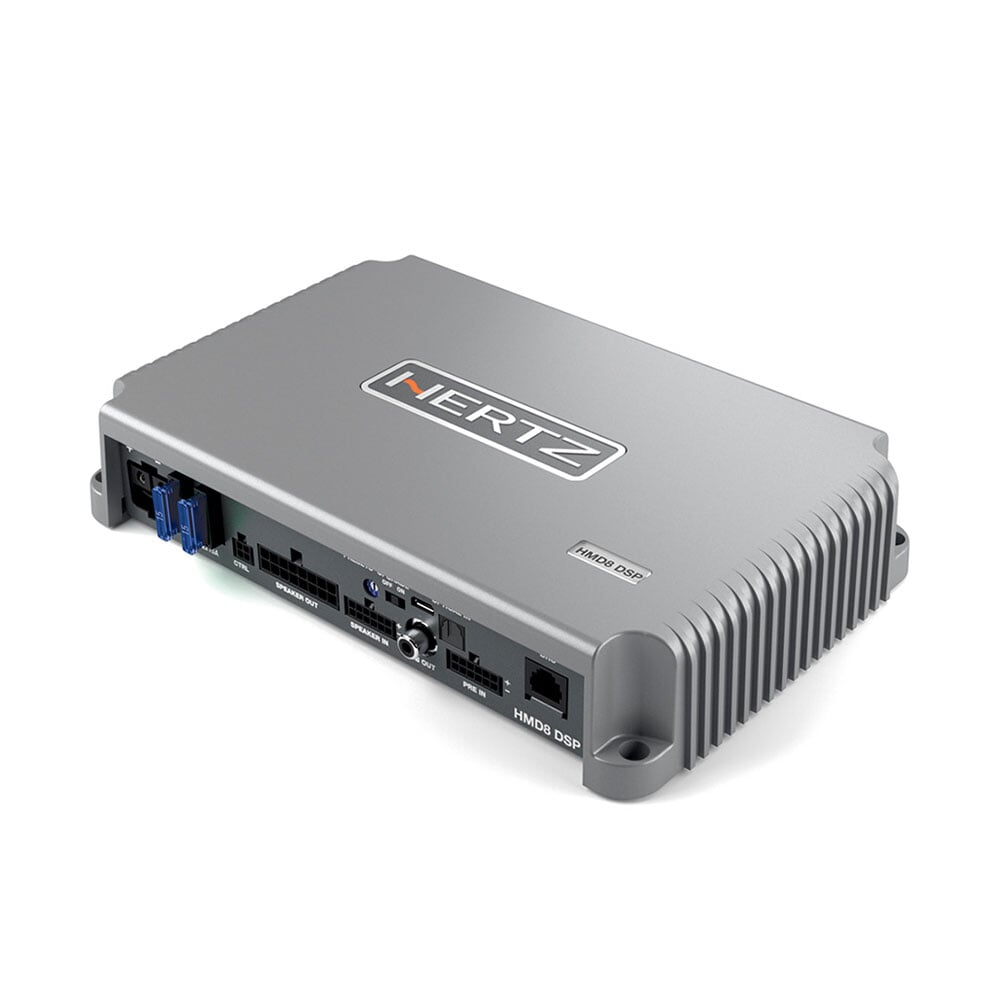

Hertz 8x 85W HMD8 DSP 8 Channel IP64 Marine Amplifier - 24V

• IP Protection: IP64
• Supply Voltage: 22 - 34VDC
• Fuse: 2 x 15A
• Idle Power (on/off): 0.96A / 1.6mA
• Max Power Consumption: 27.5A
• Size:238 x 155 x 50mm (9.37 x 6.1 x 1.97")
• RMS Output Power: 8 x 85W (at 4Ω)

The HMD8 DSP 24V powered by Hertz Marine DSP technology rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze exploiting every single pills of performance from the installed speaker system.

The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. Power for the Waves design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.

Built-In DSP

Hertz marine dsp technology allows you to move freely in the boat preserving a perfect surround effect even with outdoor listening.

Multi Zone Setup

Hertz Marine DSP optimizes acoustic performance for each of the 3 configurable listening zones regardless of where the speakers are installed and the point of the passenger within the zone maximizing listening pleasure while cruising.

Crossover Filter

Filter Type: Full / High pass / Low pass / Band pass. Filter model and slope: Butterworth Linkwitz-Riley Bessel Chebyshev QLP quasi-linear phase

Speakers Emission Time Aligment

0 - 510 cm (0 - 200.8 inches)

Graphic Parametric EQ

n. 10 parametric poles (Peaking High Shelf Low Shelf Notch All pass) ±12 dB gain variable Q (0.5- 16.0) n. 10 graphic poles

PC-Software

Hertz Navigator software allow to create pre-optimized software setup files for a specific boat model and the related audio system installed ensuring a correct acoustic result in a very short time.

Advance D-Class

Thanks to the Hertz advanced D-CLASS output stage HMD8 DSP joins maximum sound quality with unmatched efficiency to be very compact and easily installed in any position of the boat.
