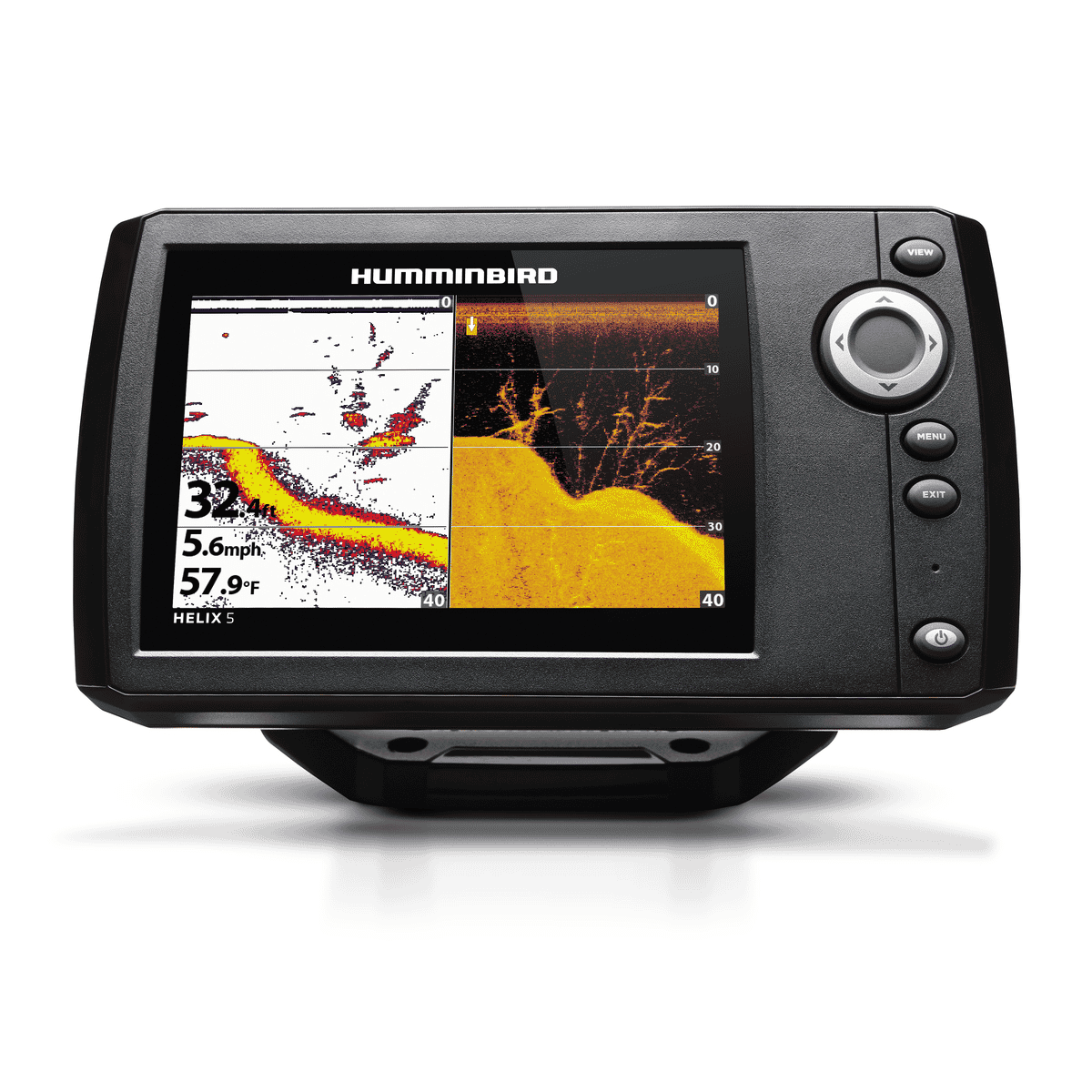

Humminbird HELIX 5 DI G2

Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail. SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button. Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth. 1-Year Limited Warranty   Item Number 410200-1 Series HELIX Display Size - Diagonal 5" Display Pixel Matrix 800H x 480V Sonar-Standard Down Imaging, DualBeam PLUS Sonar-Coverage 16°, 28°, 45° & 75° @ -10dB Sonar-Frequencies Supported 200/455/800 kHz Depth-Sonar 600 ft (standard transducer) Depth-Down Imaging 350 ft Interface Keypad Control Features Down Imaging Memory Card Slot None Compatible With AIS, AutoPilot Power Draw 615 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen SnapShot Not Supported Sonar Recording Not Supported Mount-Standard Gimbal Mount-Standard Size 7.55" W x 4.64" H x 3.3" D Mount-Optional Size 7.55" W x 4.28" H x 1.13" D Transducer Mount Location Transom GPS Chartplotting Not Supported GPS Trackplotting Not Supported LakeMaster Compatibility No Coast Master Compatibility No Navionics Gold/HotMaps Compatibility No Navionics Platinum + Compatibility No Platinum Compatibility No Heading Sensor GPS Compatibility No Upgradable Software Yes View Preset Keys No X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections Yes Display Colors Grayscale 16-Bit Display Size 5" - 7" Speed Optional Temperature Built-In Temperature Alarm Yes Temperature Graph No Transducer Included XNT 9 DI T HDMI Compatible No MEGA Live Compatibility No
