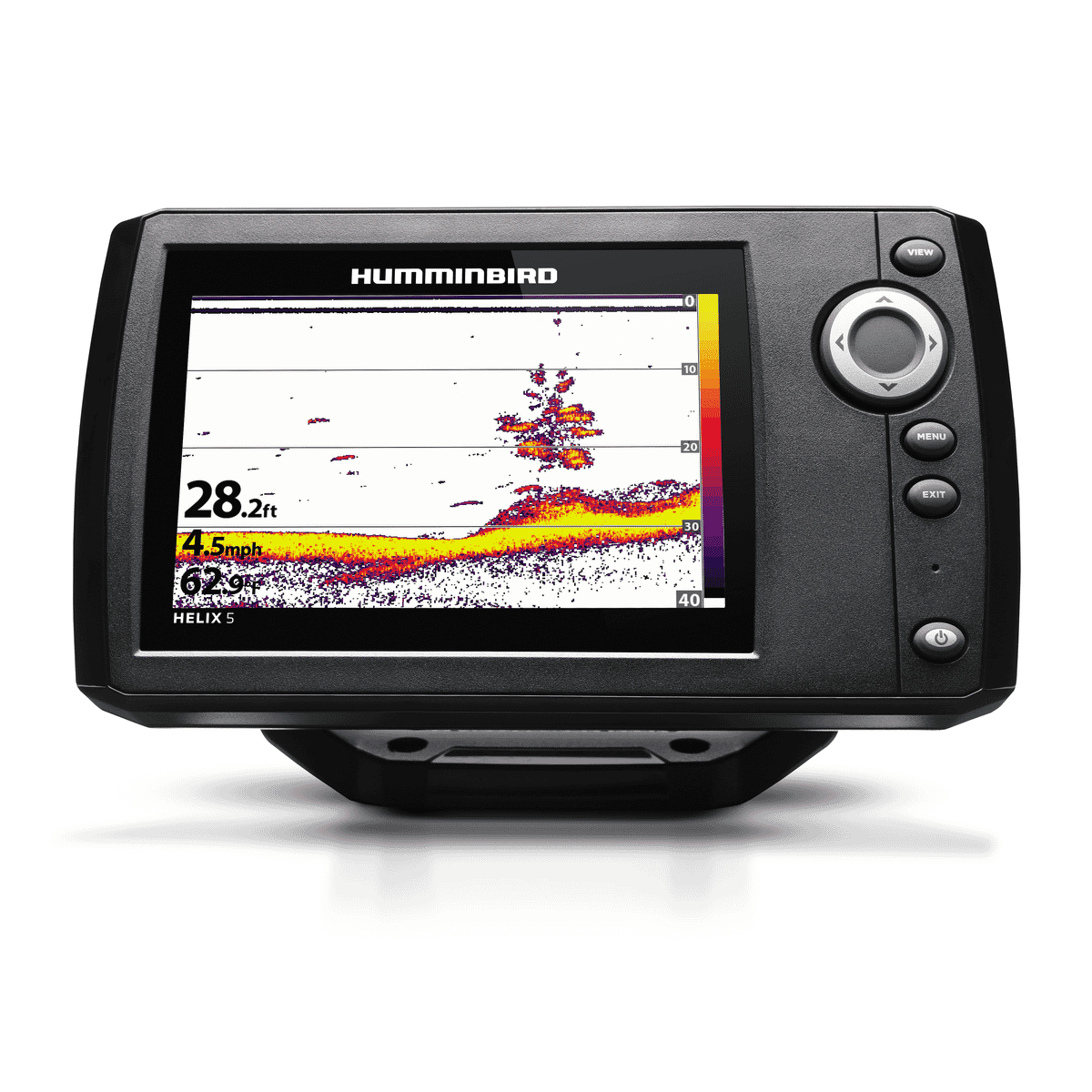

Humminbird HELIX 5 SONAR G2

SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button. Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth. 1-Year Limited Warranty Item Number 410190-1 Series HELIX Display Size - Diagonal 5" Display Pixel Matrix 800H x 480V Sonar-Standard DualBeam PLUS Sonar-Coverage 20° & 60° @ -10dB Sonar-Frequencies Supported 83/200 kHz Depth-Sonar 1,500 ft (standard transducer) Interface Keypad Control Memory Card Slot None Compatible With AIS, AutoPilot Power Draw 615 mA Power Input 10.8-20 VDC Power Output Peak-to-Peak 4000 Watts Power Output RMS 500 Watts Screen SnapShot Not Supported Sonar Recording Not Supported Mount-Standard Gimbal Mount-Standard Size 7.55" W x 4.64" H x 3.3" D Mount-Optional Size 7.55" W x 4.28" H x 1.13" D Transducer Mount Location Transom GPS Chartplotting Not Supported GPS Trackplotting Not Supported LakeMaster Compatibility No Coast Master Compatibility No Navionics Gold/HotMaps Compatibility No Navionics Platinum + Compatibility No Platinum Compatibility No Heading Sensor GPS Compatibility No Upgradable Software Yes View Preset Keys No X-Press Menu System Yes Custom Digital Readout Yes Custom View Selections Yes Display Colors Grayscale 16-Bit Display Size 5" - 7" Speed Optional Temperature Built-In Temperature Alarm Yes Temperature Graph No Transducer Included XNT 9 20 T HDMI Compatible No MEGA Live Compatibility No
