JL Audio MAX Audio Measurement System (MAX-KIT)

• Streamlines tuning audio dsp products in real-world conditions
• 5-microphone averaging gives you helpful real-world measurements
• Accuracy is on par with professional test systems costing much more
• Precisely analyse the 3 pillars of audio: level frequency and time
• Together max and tün 4 software can analyse any audio system with full detail in real time
• Built-in usb hub simplifies connection to computer and dsp amplifiers

Tune Test Troubleshoot and Analyse Any Audio System

MAX is a professional-grade dual Fast Fourier Transform (FFT) measurement system with 5 microphones. It is ideal for general audio system measurement system tuning with DSP troubleshooting and testing equipment and solving OEM integration challenges. MAX has many applications in home car marine and professional audio.

What To Love

Dual FFT Analysis - Conduct dual FFT measurements of up to 5 simultaneous transfer functions with precise displays of magnitude (frequency response) phase impulse response (delay) and coherence (noise immunity).

5-Microphone Array - Up to 5 included microphones can be multiplexed to conduct single FFT measurements of level and frequency response (Real-Time Audio (RTA) and spectrograph).

Wide Range of Inputs - Put it all together with the inputs you need. Including up to 5 microphones plus high-level analogue signals (up to 80 volts) low-level analogue signals (up to 7 volts) and optical digital signals (S/PDIF).

Multiple Signal Outputs - Built-in digital-to-analogue conversion feeds analogue line level outputs and headphone outputs plus optical digital output (S/PDIF).

Simple VXi/MVi Amp Setup - For VXi and MVi amplifier users the MAX audio measurement system offers full integration of amp DSP controls to streamline setup of measurements with one computer and one software application: TüN 4.

It Fits In A Kit - All hardware mounting accessories and cables fit in a lockable water-resistant hard case. An optional probe kit for impedance and electrical measurement is sold separately.

Accuracy Flexibility Simplicity

Tech Highlights

Automatic True Delay - Set VXi/MVi channel delays in a flash - far more accurately than any other method.

Autoset equalisation - To simplify EQ this feature sets VXi/MVi parametric EQs to your selected target in seconds.

Easy Manual EQs - Perform precise manual EQ adjustments with real-time visual feedback.

Built-In Signal Test Generator - MAX provides an input signal for testing   plus WAV file playback capability.

Home Audio / Theatre - Test room modes for subwoofer placements and adjust crossover and phase controls.

Car Audio Applications - Mic array and TüN software work to streamline tuning of car audio DSP products.

Boat & RV Applications - Evaluate individual or multiple zones in an audio installation for frequency response and level.

Capture Audio Data - RTA measurements can be captured for later viewing and data analysis.

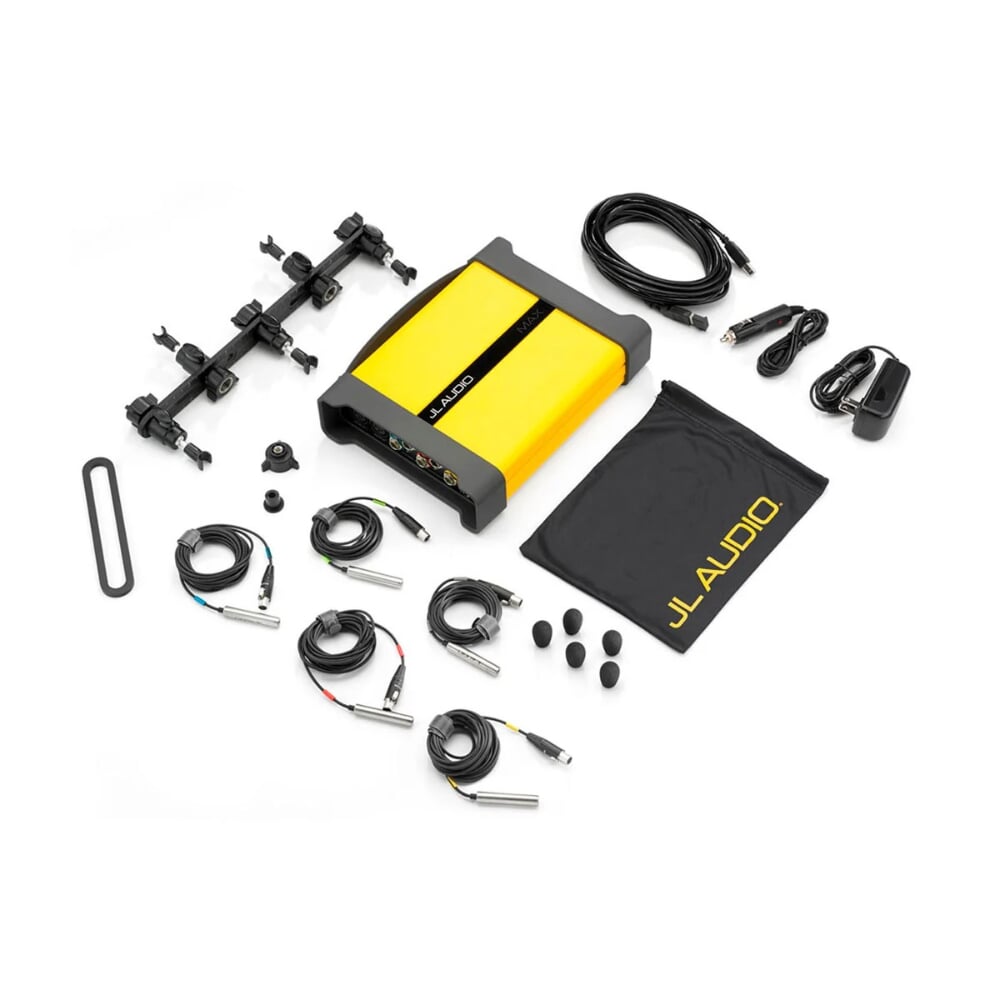

In The Box

• MAX hardware interface
• Five measurement microphones with removable windscreens
• Multi-mic fixture with mounting accessories
• USB A/B cable
• 12V DC power cable
• AC power adapter
• Soft accessory storage bag
• Waterproof hard case
