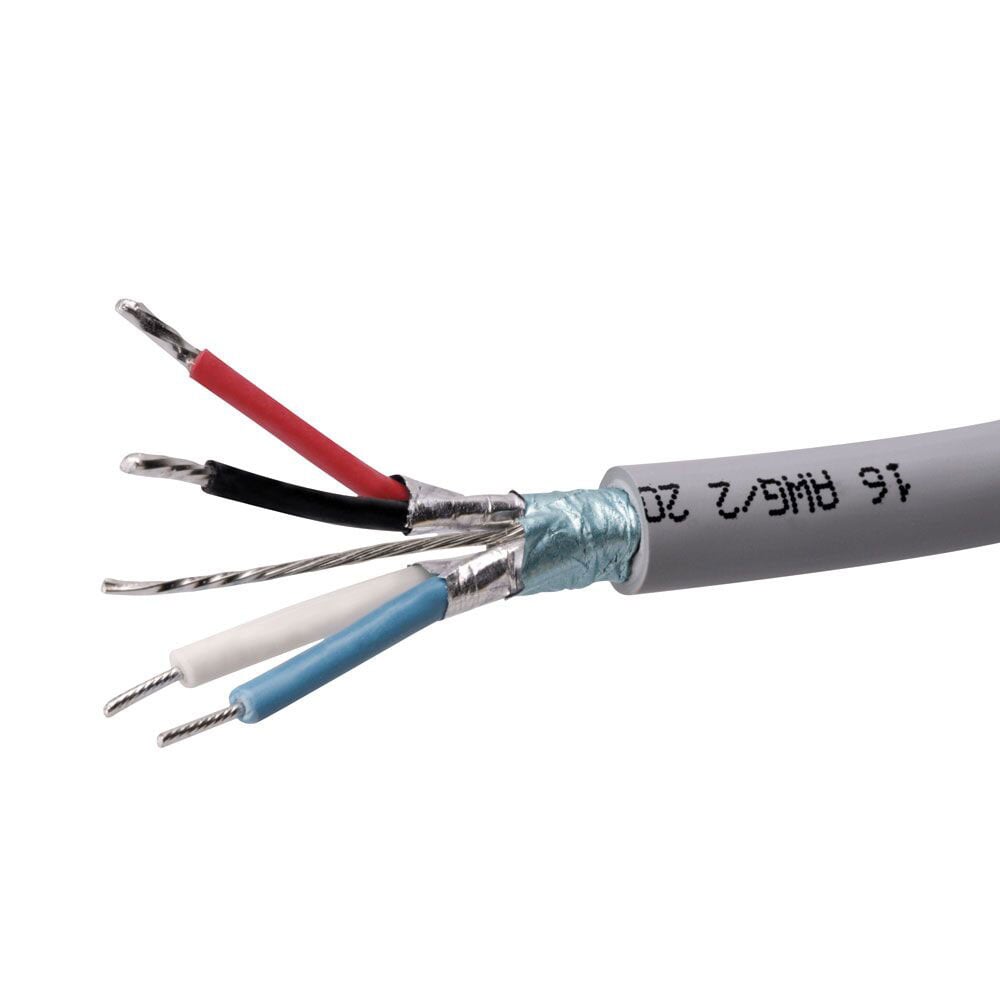

Maretron Mini Bulk Cable per metre grey Max 50 meter continuous piece
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
NG1
£31.80
£26.50
Meets and exceeds NMEA 2000 specifications for the highest reliability.
Trunk or drop cable for use with Mini connectors.
Used with field-attachable connectors to build exact length cables at the job site.
Insulation Material: PE (data) PVC (power).
Power Pair - Wire: 2x15 (1.45mm) AWG.
Power Pair - Resistance/Conductor: 3.44 Ohms/1000 ft. max.
Power Pair - Max Amperage: 14 Amps.
Data Pair - Wire: 2x18 (1.02mm) AWG.
Data Pair - Characteristic Impedance: 120 Ohms ± 10%.
Data Pair - Capacitance: 12 pF/1000 ft. Max.
Mini bulk cable is primarily used as trunk cable but it can also be used as drop lines. Bulk cable with field-attachable connectors allows for maximum flexibility as cables can be made on the job to exact lengths.
