Minn Kota Power Center Battery Box
In stock
Ready to dispatch
Ready to dispatch
MPN
1820175
£120.89
£100.74

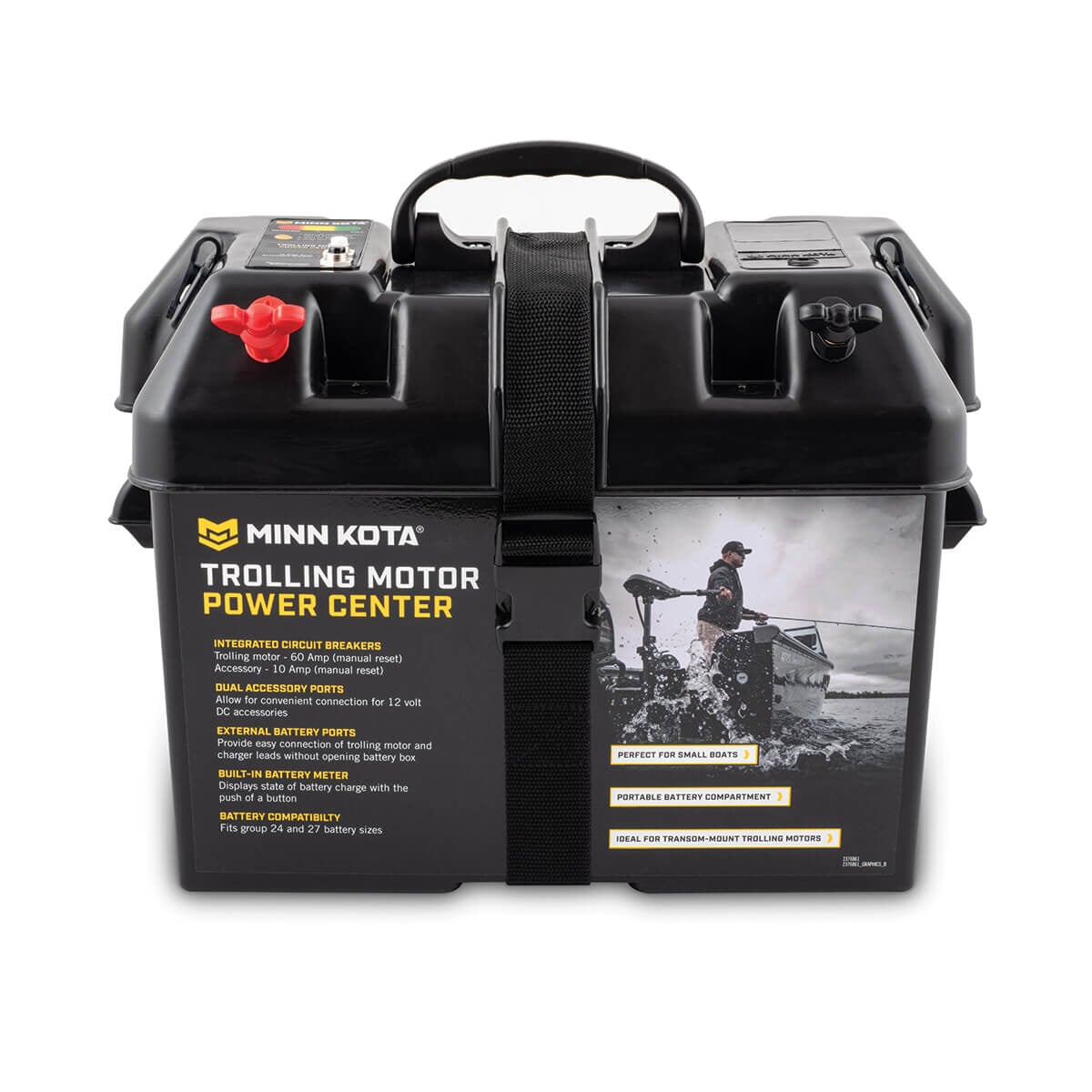

This battery box/power center contains easy access external battery terminals that allow trolling motor leads and charger leads to be connected to the battery posts without opening the box. It protects your battery (not included) on small boats, transom applications (boats that do not have battery compartments).
Compatible with group 24 and 27 size battery (battery not included)
Built-in, push button battery meter with 4 LEDs
Two 12-volt accessory plugs
60A resettable circuit breaker connected to top
10A resettable circuit breaker connected to two accessory ports
Ring terminals on inside battery connectors
Carrying handles on both sides
Overall dimensions: 7" x 13.5" wide x 12" tall
As with most common marine batteries, the Red Wing nut for the Red Positive (+) Terminal is 3/8”-16. The Black Wing nut for the Black Negative (-) Terminal is 5/16"-18. A replacement kit (Part # 993150) is available for lost Wing nuts.
#html-body [data-pb-style=WUYOCC3]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}<p>For small boats, and transom applications (boats that do not have battery compartments), these easy-access external battery terminals allow trolling motor leads and charger leads to be connected without opening the box. Built-in battery meter displays current "state of charge". Includes two 12-volt accessory plugs, and 2 manual reset circuit breakers (10 amp for accessory plugs and 60 amp for trolling motor). Fits group 24- and 27-size batteries.</p>
<p> </p>
<table class="table" data-striping="1">
<tbody>
<tr>
<td>Model</td>
<td>Battery Power Center</td>
</tr>
<tr>
<td>Product Code</td>
<td>1820175</td>
</tr>
<tr>
<td>UPC</td>
<td>0029402027675</td>
</tr>
<tr>
<td>Warranty</td>
<td>One-Year Warranty</td>
</tr>
</tbody>
</table>
