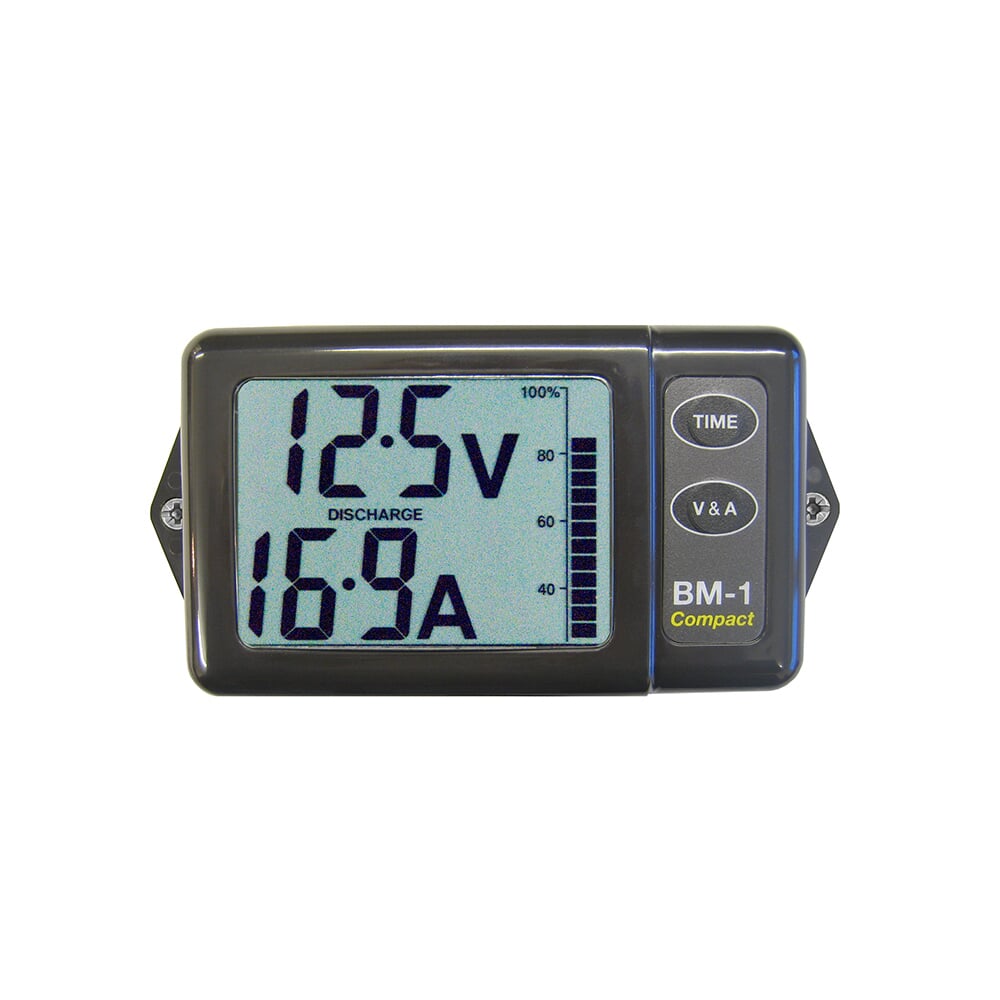

NASA Battery Monitor Compact Grey 12VDC

Features

• The BM-1 Compact consumes a miserly 1.5mA! BM-1 Compact is used in various vehicles by the Ministry of Defence.
  Compact surfacemount display 125x 62x 23mm in Grey
• Monitors 12v lead acid battery systems with capacity of up to 600 Amp hours
• Supplied with a 50 millivolt @100 amp shunt and prefabricated cable assembly with M8 ring terminals
• Monitors Voltage Current (charge or discharge) Number of Amp/hours (charge or discharge) The battery's state of charge and the time to charge or discharge
• Does NOT monitor more that 1 battery bank
• Supply voltage8V to 16V DC
• Supply current1.5 milliamps
• Load current 100amps maximum
• Charge current 100amps maximum

The BM-1 compact is designed to monitor performance of 12 volt lead acid battery systems with capacities of up to 600 Amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation.

The unit continuously monitors voltage current (charge or discharge) number of amp/hours (charge or discharge) the battery's state of charge and the time to charge or discharge. This information leads to more efficient use of the battery which can enhance battery life and reduce the risk of failure.

In The Box

BM-COMPACT; Precision 100 AMP shunt; Prefabricated cable assembly.
