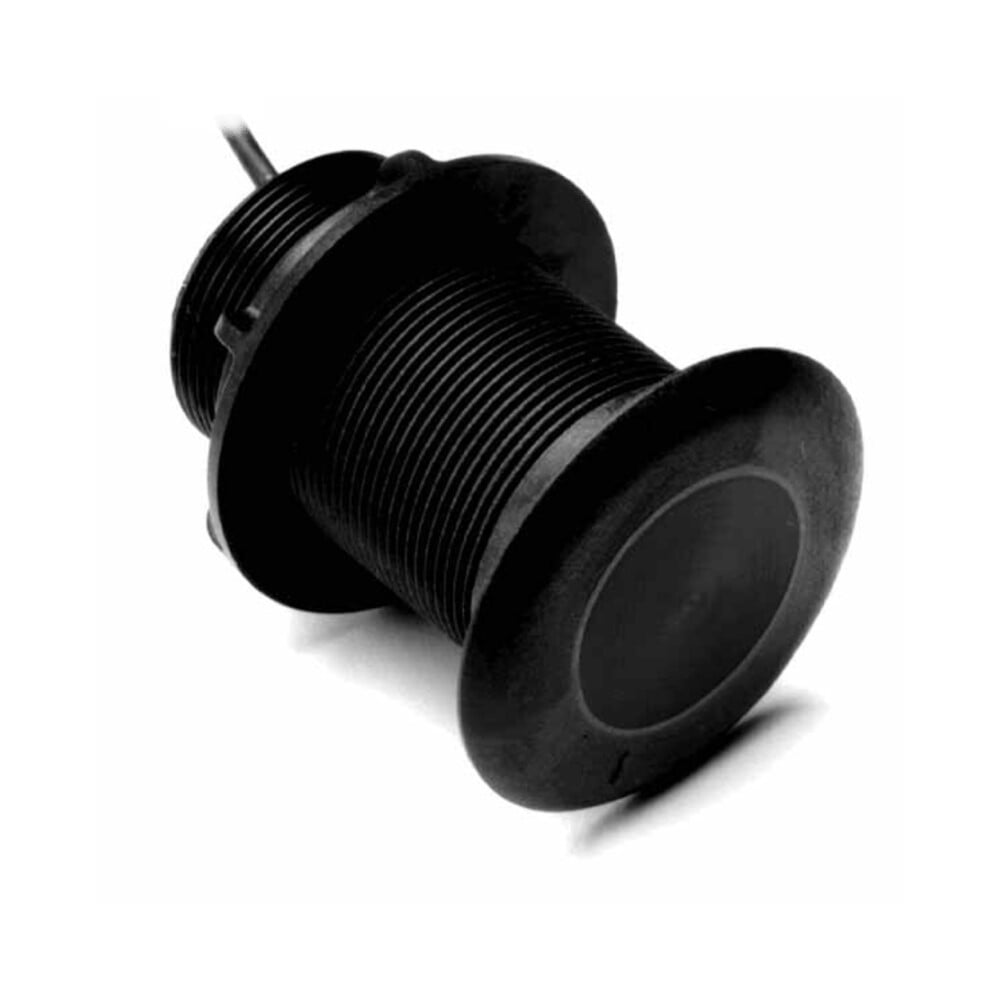

Q Experience Airmar IC-P90M CHIRP Thru Hull Transducer - 20 Deg
Ready to dispatch
Free mainland UK delivery!
Intergrate CHIRP fishfinder technology into any Q Experiance Q2 displays with this plastic through hull transducer.
- Depth & Water temperature sensor
- 100W - Max depth 200m & Shallow detection down to 0.5m
- Medium Frequency: 95-155kHz
- 60kHz total bandwith
- Simplified operation with the use of auto modes for sensitivity range and noise cancellation
- Hydrodynamic transducer profile permits operation at speeds up to 40 knots
- Available with 0° 12° or 20° offset for hull deadrise
Intergrate CHIRP fishfinder technology into any Q Experiance Q2 displays with this plastic through hull transducer. The AIC transducer provides processed Chirp echogram data for a fast to market solution saving R&D time and expense. All of the electronics are contained in the IC-P90M with a 10-meter cable exiting the transducer to a Y-cable adapter (one side for data and the other for power) making the installation simple and cost efficient.
The IC-P90M transom mount transducer uses a proven housing design to deliver amazing performance up to 40 knots. An innovative product it delivers depth and water temperature data via an Ethernet connection. This Smart transducer is a medium Chirp (95-155 kHz) transducer which is perfect for detecting fish and delivering crisp bottom detail for depths as deep as 200 meters.
-
