Quick Genius GP2 Series Windlass - 8mm 800W 12V With Freefall

• Horizontal on-deck windlasses
• Anodized alluminium in hard oxide base
• Rope and chain on a single gypsy
• Integrated sensor and magnet for chain counter
• Free-Fall system
• Supplied with pressure lever
• IP66 watertight motor
• Epicyclical gearbox

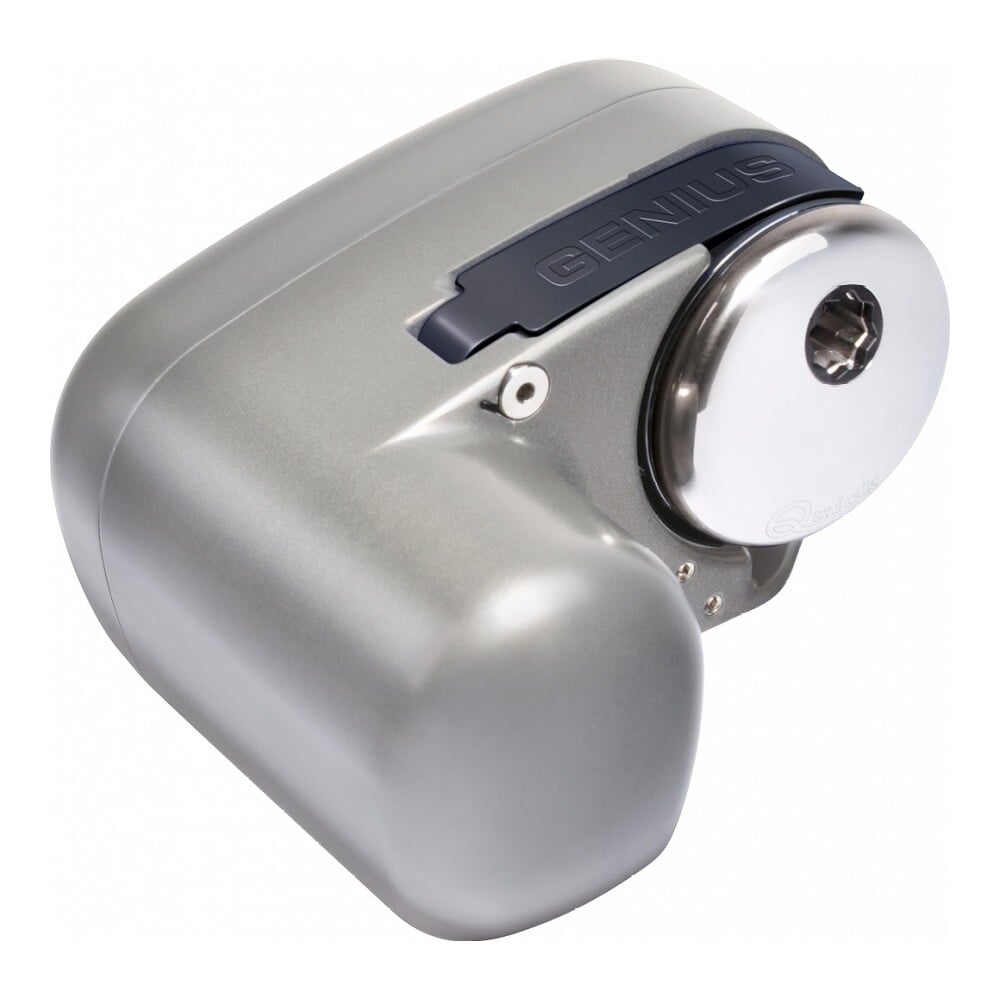

The Genius GP2 is a horizontal on deck windlass in an Anodized aluminium with hard oxide base. 8mm Rope and chain on a single gypsy with integrated sensor + magnet for chain counter and automatic Free-Fall system.

Gypsy

• Chain: 8mm Din 766 or 8mm ISO
• Rope: 1/2" (12.7mm)

Specification

• Motor power: 800W
• Motor supply voltage: 12V
• Maximum pull: 900Kg (1984lb)
• Maximum working load: 350Kg (772lb)
• Working load: 120Kg (265lb)
• Current absorption @ working load: 96A
• Maximum chain speed: 29.6m/min (97.1ft/min)
• Maximum chain speed @ working load: 20 m/min (65.6ft/min)
• Weight: 10.9Kg (24lb)
