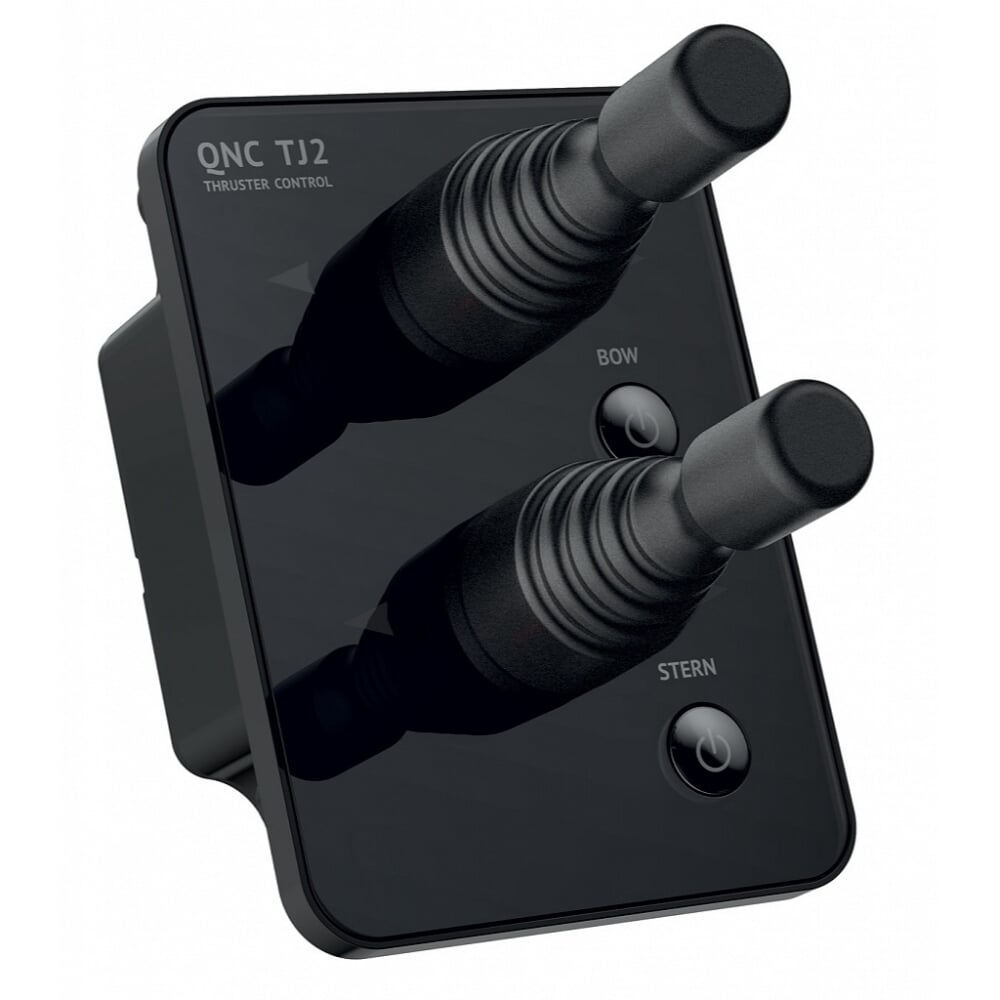

Quick TJ2 H Twin Joystick Thruster Control

• Supply Voltage: 12 / 24V DC
• Current consumption at rest: 40mA
• Operating Temperature: -20°C - 70°C
• Protection rating: IP67
• Interface: M12A (Can bus + Power supply)
• EMC Class: EN60495 - FCC Title 47 Part 15 Subpart B Class B
• Dimensions: 85 x 115 x 118mm
• Weight: 330g

The QNC TJ2 will control QSY Proportional motors in an ON-OFF manner via CAN bus features a tempered glass panel surface and LED indicators visible only if active.

Note: Not suitable for use with retractable thrusters.

• Simple and intuitive user interface
• Easy installation
• Possibility of connecting several QNC remote controls to the same network
• Enabling or disabling system with automatic priority
• Possibility of simultaneous control of several motors from the same axis
• HOLD function for maintaining direction
• Local or remote errors indications (signals from the actuator)
• Can work in a wide range of ambient temperatures
• Acoustic signals (that can be deactivated)
• Protection against reverse polarity
