Raymarine DST820 Gen2 Through Hull DST Smart Transducer - 0 Degree

• Fully compliant with UK PSTI security standards
• Features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots
• 5.7 Hz speed output for visibly smoother speed-through-water reporting
• Integrated Attitude Sensor
• Secure Bluetooth connectivity to Airmar’s CAST app
• Calibrate the DST820 in a simple intuitive way from your mobile device.
• Conduct basic and advanced heel-compensated speed calibrations

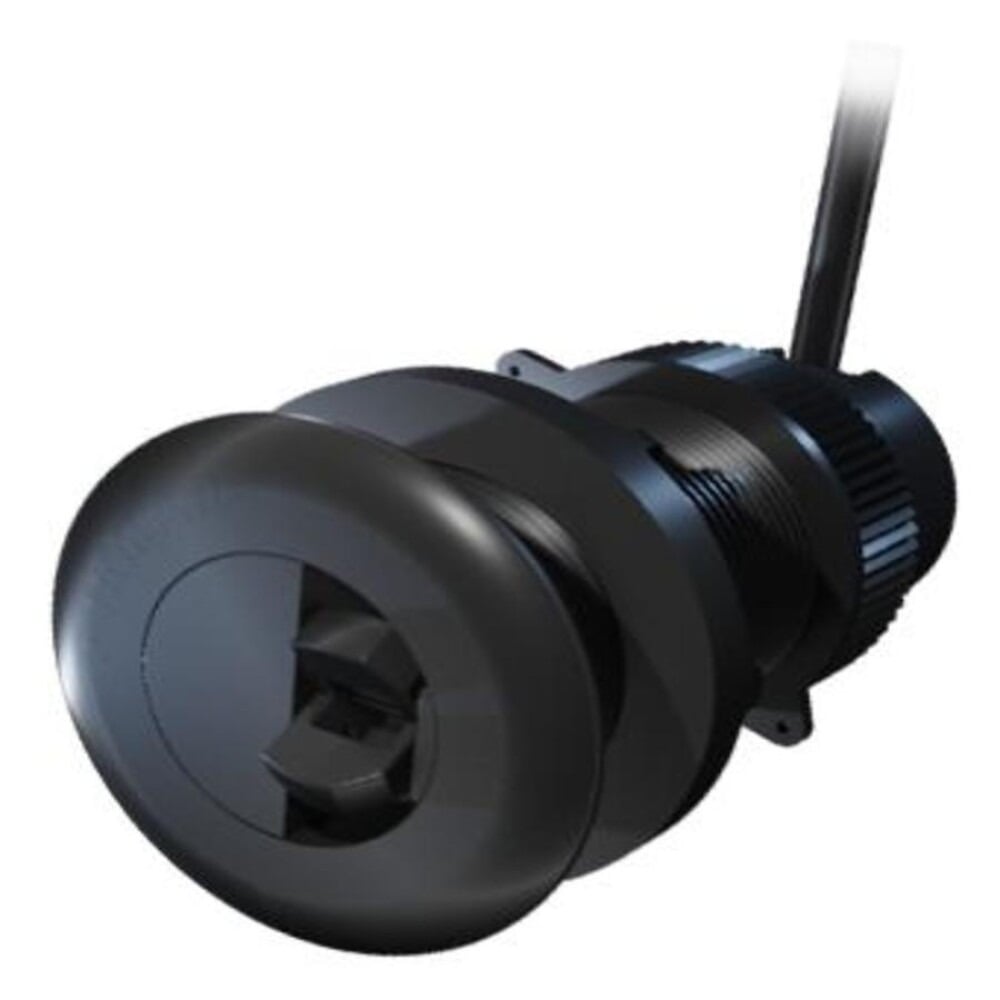

The DST820 0° is a multifunctional through-hull smart transducer. The device measures depth vessel speed via a newly designed paddle wheel and water temperature. Integrated sensors also record the trim and heel angle of the vessel.

The NMEA2000 (DeviceNet) smart transducer processes depth and speed data with a 5Hz update frequency. Internally the transducer measures water temperature and the trim and heel position of the vessel. The 0° version has a built-in offset angle of 0 degrees and features Bluetooth for wireless communication to configure it (keel offset).

The DST820 is a through-hull transducer and is mounted through a hole in the hull where the through-hull fitting enters. Connection to the NMEA2000 network is direct via the integrated connector. The through-hull fitting is: P617V the V stands for Valve and features a shut-off valve which is not watertight but ensures significantly less water ingress when the transducer is removed from the through-hull fitting.
