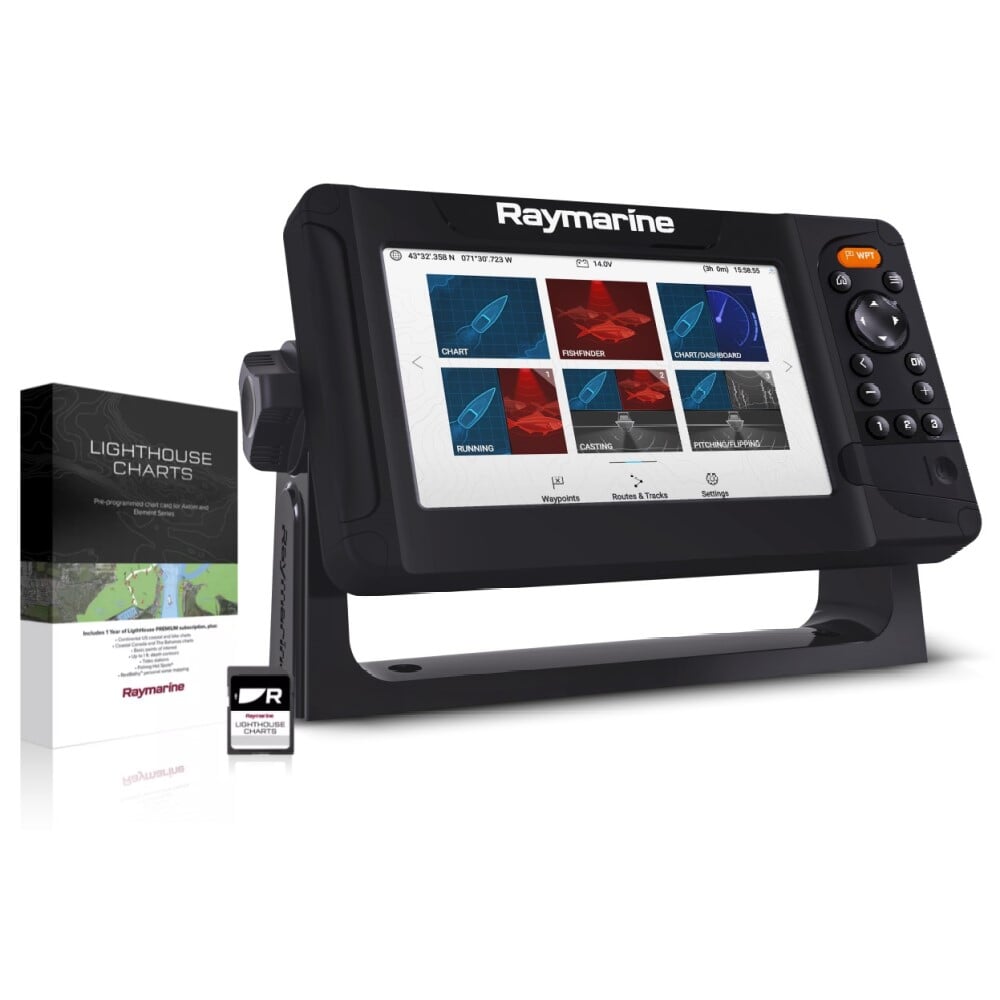

Raymarine Element 7S Display & Western European Lighthouse Chart
Ready to dispatch
Free mainland UK delivery!
The Element S series of navigation displays gives the freedom to enjoy the open waters, Select a destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become a trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color.
Includes Western Europe Lighthouse Chart: coverage area includes Ireland, Great Britain, Portugal, Spain, France, Germany, and Denmark.
- Display Size: 7.0" Optically Bonded LCD
- Display Resolution: 800 x 480 WVGA
- Three user-programmable quick keys provide access to favorite pages with one button push
- Live menus allows customisation of charts while seeing the navigation display change in real time
- Includes preloaded LightHouse Charts Western Europe chart card
- Includes 1 Free year of LightHouse Charts Premium Subscription
Technical Specifications
X| Power | |
|---|---|
| Operating Voltage Range | 8 - 16V DC (Protected up to 32V DC) |
| Power Consumption @ 12V DC | 15W |
| Nominal Supply Voltage | 12V DC |
| Fuse Requirements | Inline fues: 5A, Thermal Breaker: 3A |
| LEN (NMEA 2000 Load Equivalency Number) | 1 (Based on 9V DC nominal voltage |
| Enviromental | |
|---|---|
| Operating Temperature Range | -25°C - 55°C (-13°F - 131°F) |
| Storage Temperature Range | -30°C - 70°C (-22°F - 158°F) |
| Humidity | up to 93% @ 40°C (104°F) |
| Waterproof Rating | IPX6, IPX7 |
| Physical | |
|---|---|
| Dimensions (Trunion Mounted | 162.59 x 263.85 x 149.4mm (6.4" x 9.43" x 5.88") |
| Dimensions (Surface Mounted) | 135.1 x 239.6 x 149.4mm (5.32" x 9.43" x 5.88") |
| Weight (Display only) | 1Kg (2.2lbs) |
| LCD | |
|---|---|
| Size (diagonal) | 7" |
| Resolution | 800 x 480 (WVGA) |
| Aspect Ratio | 5:3 |
| View Angle (T/B/L/R) | 50°/60°/70°/70° |
| Display Type | TN |
| Colour Depth | 24-bit |
| Maximum Illumination | 1,500nits / 1,500 cd/m2 |
| Data Connections | |
|---|---|
| SeaTalkng / NMEA 2000 | 1 x DeviceNet femal connector (Built into power cable) |
| 2.4 GHz Wi-Fi | 802.11/b/g/n |
| Transducer | 1 x 15-pin connector |
| GPS Receiver | |
|---|---|
| Position Accuracy | Without SBAS: ≤ 15 metres 95% of the time With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum | WGS-84 (alternatives can be selected on the MFD) |
| Channels | Multiple - ability to simultaneously track up to 28 satellites |
| Antenna | Internal - Ceramic chip mounted near top of unit |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | EGNOS, GAGAN, MSAS, QZSS, WAAS |
| Signal Acquisition | Automatic |
| Almanac Update | Automatic |
| Receiver IC Sensitivity | 165 dBm (Tracking), 160 dBm (Acquisition), 148 dBm (Cold start) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Cold start | < 2 minutes |
| Storage | |
|---|---|
| External | 1 x MicroSDXC card slot |
Navigate With Confidence
The Element series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and aff ordable performance, Element will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color.
Sonar is Standard - Element S comes with a Single channel High CHIRP Sonar with 9 pin connector.
Quad-core performance - The fast quad-core processor allows instantaneous chart re-draw and continuous 3D rendering while running a simple, easy-to-learn user interface.
Lighthouse Sport OS - Raymarines Lighthouse Sport operating system is designed for boaters who value simplicity and ease of operation, featuring uncomplicated menus.
Intuitive keypad controls - Helping captains get under way fast and stay on course. Dedicated keypad controls keep the screen free of fingerprints. Additionally, three user-programmable quick keys provide instant access to favored pages, and an oversized waypoint button allows quick and easy marking of areas of interest.
Raymarine LightHouse 2 Chart - Includes Western Europe Lighthouse Chart: coverage area includes Ireland, Great Britain, Portugal, Spain, France, Germany, and Denmark.
In The Box
- Element display
- Western Europe Lighthouse Chart
- Surface mount gasket
- Suncover
- Trunnion knobs (x 2)
- Documentation
- Trunnion bracket
- Surface mount stainless steel fixings x 4 (M4 x 40 machine screw, M4 flat washer, M4 locking nut)
- Power / NMEA 2000 cable (includes 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead).
