Raymarine Evolution Autopilot with P70Rs & ACU-150, EV1 & Cable kit

• High quality at an affordable price
• Expertly made from premium materials
• Built to match your exact requirements

The EV-150 power pilot for power boats with hydraulic steering fitted with a type 1 hydraulic pump. The Evolution autopilot systems perceive their environment and instantly calculate and evolve steering commands to maximize performance. The result is precise and confident course keeping, regardless of vessel speed or sea conditions - Evolution autopilots steer so accurately they can save fuel and get you to your destination faster.

EV1 Sensor Core: At the centre of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing. Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

ACU-150:  ACU-150 Autopilot control unit suitable for Type 1 hydraulic pumps. Max continuous current 12 amps. Has clutch output and can supply SeaTalk ng with 12 volt power. Not supplied with rudder reference sensor.

P70Rs autopilot control head: The Raymarine p70Rs autopilot control head, with its combination of push-buttons and rotary control dial, is aimed at powered craft. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions. The P70Rs control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

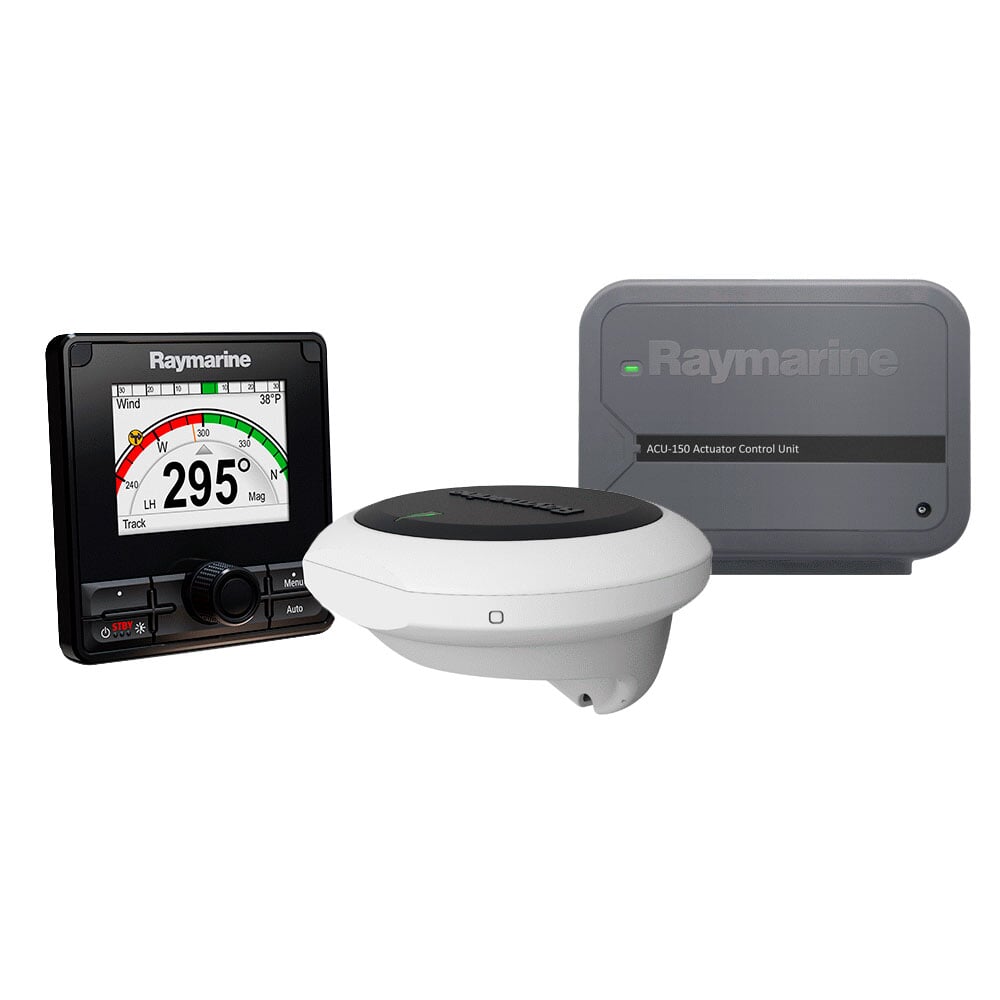

In The Box

• Evolution EV1 Sensor Core
• ACU150 Autopilot
• P70Rs Colour A/P Head (Power)
• Evolution Cabling Kit
