Raymarine RSW Wired Smart Wind Transducer with 30m Cable

• Dimensions: 540 x 46.96 x 305.86mm
• Nominal supply voltage: 12V dc (via SeaTalk NG)
• Operating Voltage Range: 9 to 16V dc
• Power Consumption: <100mW
• Max Wind Speed: 100 Knots (115mph / 185kph)
• Waterproof Rating: Transducer: IPX7 Wired gateway: IPX6

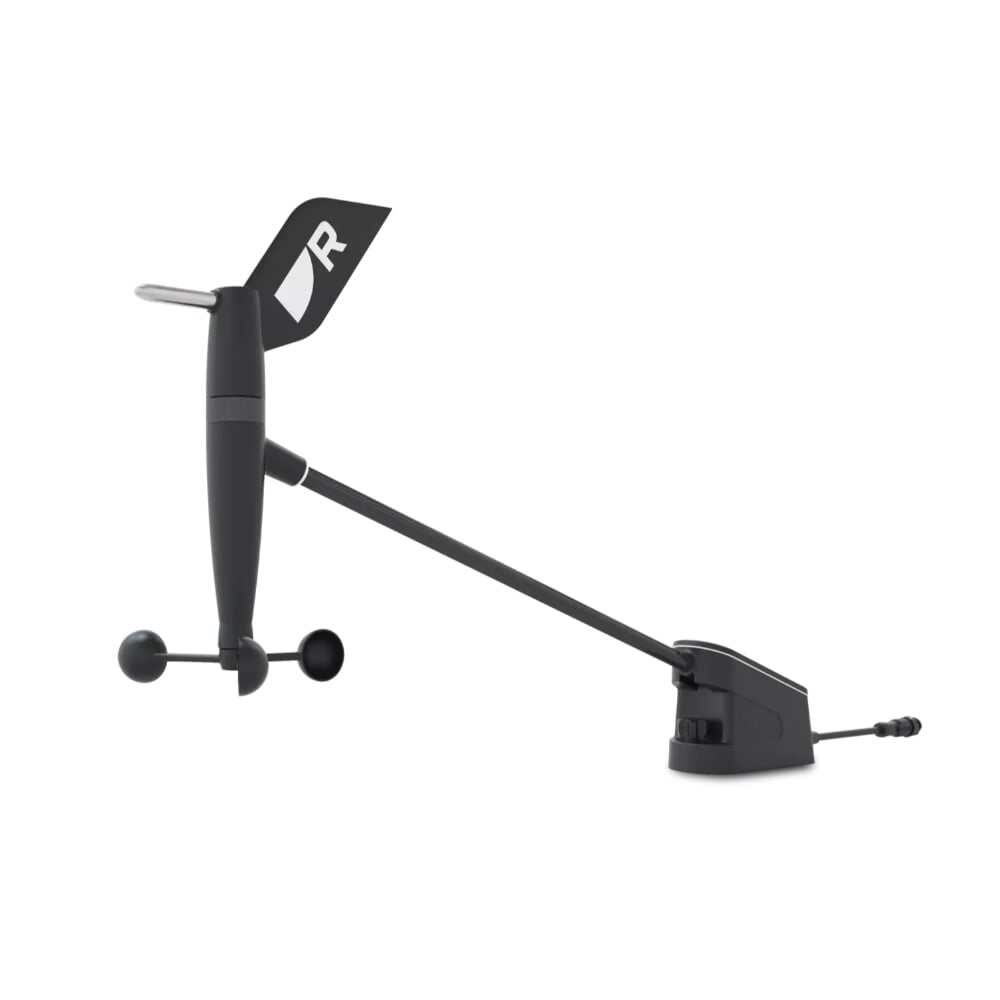

The RSW Wired Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

RSW Wired Product Features

Install & Go! - Raymarine Smart Wind technology delivers expert level accuracy without the need for additional expensive processors or extensive calibration and set-up.

Finely Tuned - Through rigorous wind tunnel testing we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.

Sail Smarter - Trusted high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

In The Box

1. No.10 x 3/4" self tapping screws x 4 (for mounting the wind transducer)
2. No.7 x 3/4" self tapping screws x 2 (for mounting the gateway)
3. 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
4. Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
5. Mast cable 30 m (98.43 ft) reel
6. Documentation
7. Wind transducer
8. Smart wind wired gateway
9. SeaTalk NG to DeviceNet adaptor cable 120 mm (4.72 in)
