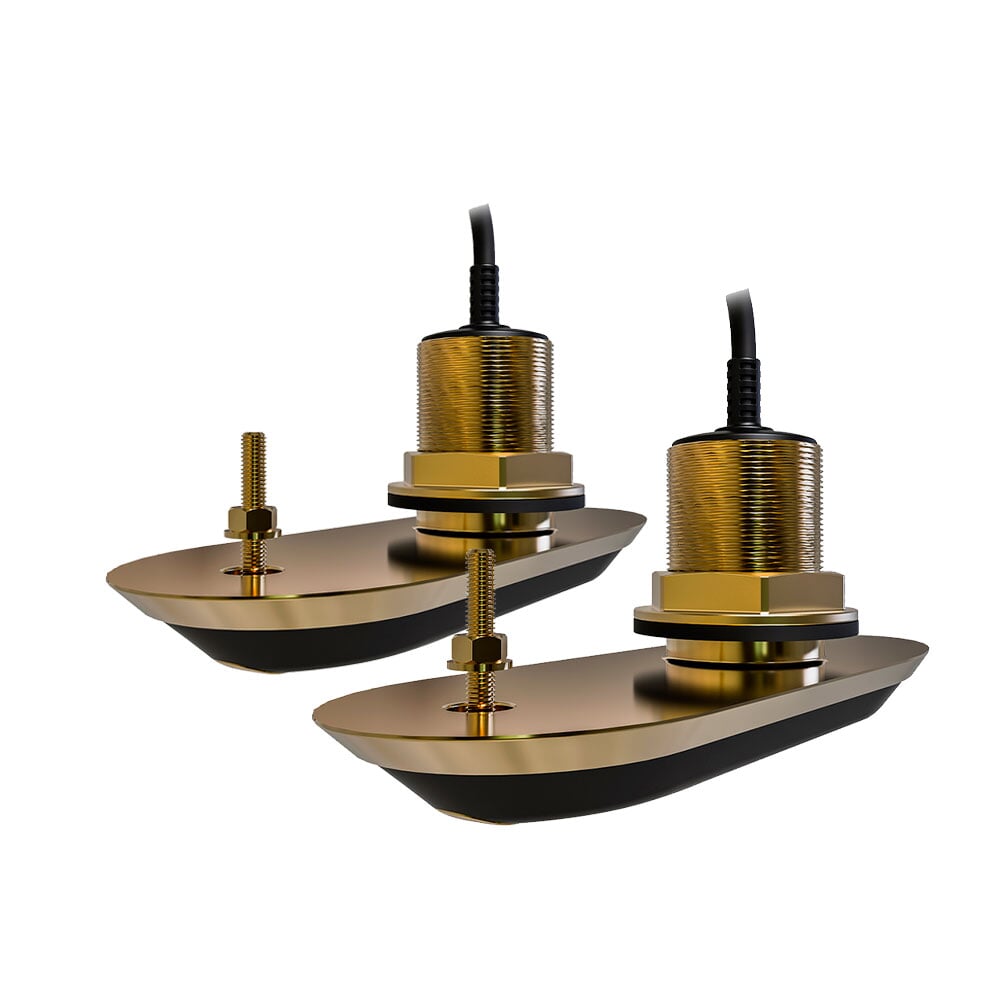

Raymarine RV-220 RealVision 3D Bronze Transducer Pair - 20 degree

Name: Raymarine RV-220 RealVision 3D Bronze Transducer Pair - 20 degree
Brand: Raymarine
SKU: 705-T70319
Price: 1746.75 GBP
Availability: BackOrder

Available to order
Estimated Delivery 7 - 14 days

MPN

T70319

RRP £2,055.00

£1,746.75 £1,455.62

Free mainland UK delivery!

Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar. The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside.

20° Element angle for Hull deadrises between 15° - 25°

Details

Installation: Thru-Hull
Material: Bronze
Max. Depth (ft): 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
Frequency (KHz): RealVision I High CHIRP
Beam Width (L/H): 3D: 180° I Down: 60° I Conical: 25°
Records: Depth and Temperature
Approved Hull Material: Fiberglass, Wood
Cable Length (Ft): 33
Supported Deadrise: 15-25°

Designed for inboard or outboard boats, the RV-220 Bronze Through Hull Transducer System lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.

The RV-220 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-220 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine’s RV-220 Bronze Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal offset to accommodate hull deadrise angles from 14° to 26°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-220 system works great on trailered boats too.

The RV-220 system features rugged cast-bronze through hull bodies suitable for fiberglass or wooden hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail, joining y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33 feet.)
