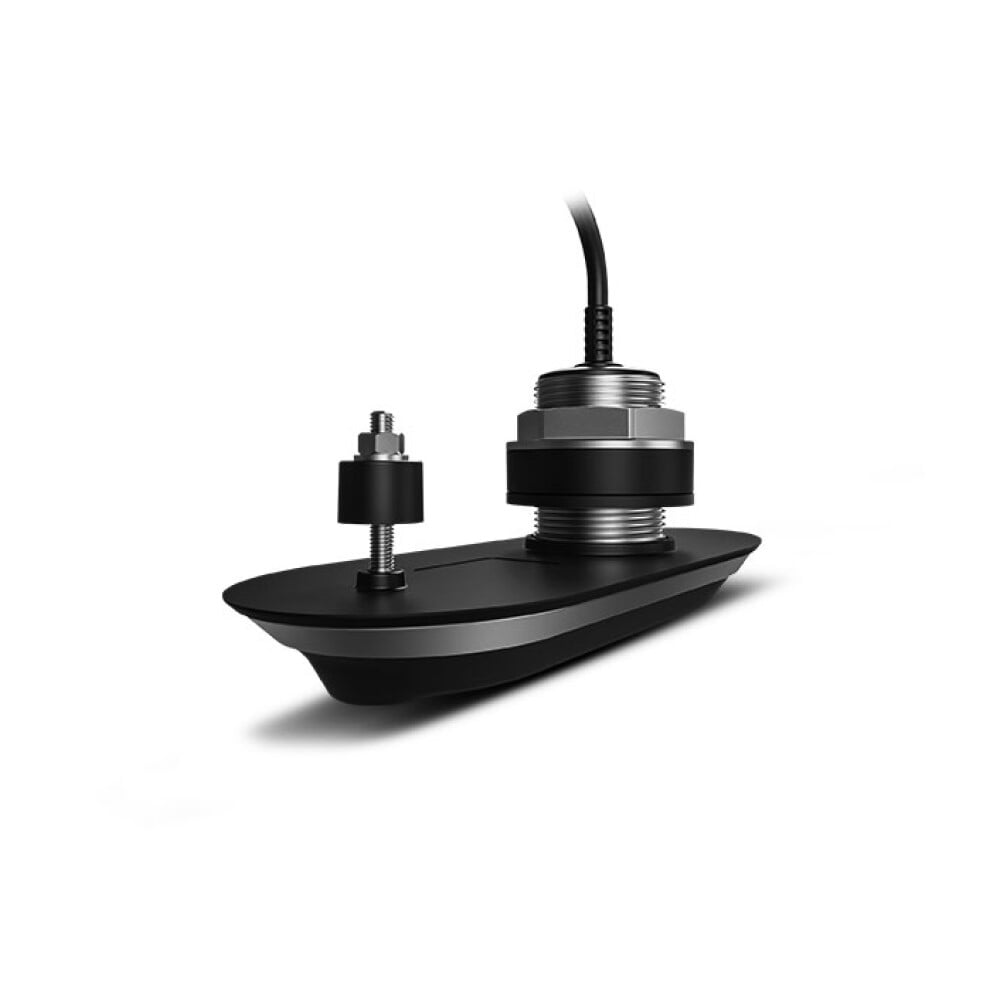

Raymarine RV-400 RealVision 3D Thru-Hull S-Steel Transducer - 0 Degree

• Installation: Thru-Hull
• Material: Strainless Steel
• Max. Depth (ft): 3D: 300 I DownVision: 600 I Port: 300 I Starboard: 300 I Conical: 900
• Frequency (KHz): RealVision I High CHIRP
• Beam Width (L/H): 3D: 180° I Down: 60° I Conical: 25°
• Records: Depth and Temperature
• Approved Hull Material: Fiberglass Metal
• Cable Length (Ft): 26
• Supported Deadrise: 0-5°

Raymarine's RV-400 stainless steel all-in-one through hull transducer is designed for inboard and outboard powerboats. The RV-400 lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D sonar. The RV-400 is a 4-channel Wide Spectrum CHIRP transducer with DownVision SideVision conical CHIRP fish targeting and RealVision 3D sonar inside. The transducer also has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery compensating automatically for vessel motion. You'll enjoy crystal-clear imagery even in waves swells and when maneuvering. The RV-400 also has a built-in fast response water temperature sensor for quick accurate readings.

The RV-400 features a rugged stainless steel through hull body suitable for fiberglass wood or metal hulls. The RealVision 3D transducer elements are arranged with a 0° offset for boats with flat bottoms. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-400 works even works great on trailered boats and with no fairing block to cut installation is a breeze.

In The Box

• RV-400 stainless steel all-in-one through hull transducer with 8-meter (26-foot cable)
• Anti-rotation bolt kit
• Transducer locknut
• Installation instructions
