Raymarine STNG Backbone Kit
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
SeaTalkNG is a robust cabling and connection system compatible with NMEA 2000, built specifically for the marine environment comprising a powered single backbone with two terminators, one at each end. Small diameter cable connectors are used throughout the system to make installation easier. There’s a wide range of cable lengths, all with over-moulded plugs, so there is no need to cut or splice cables.

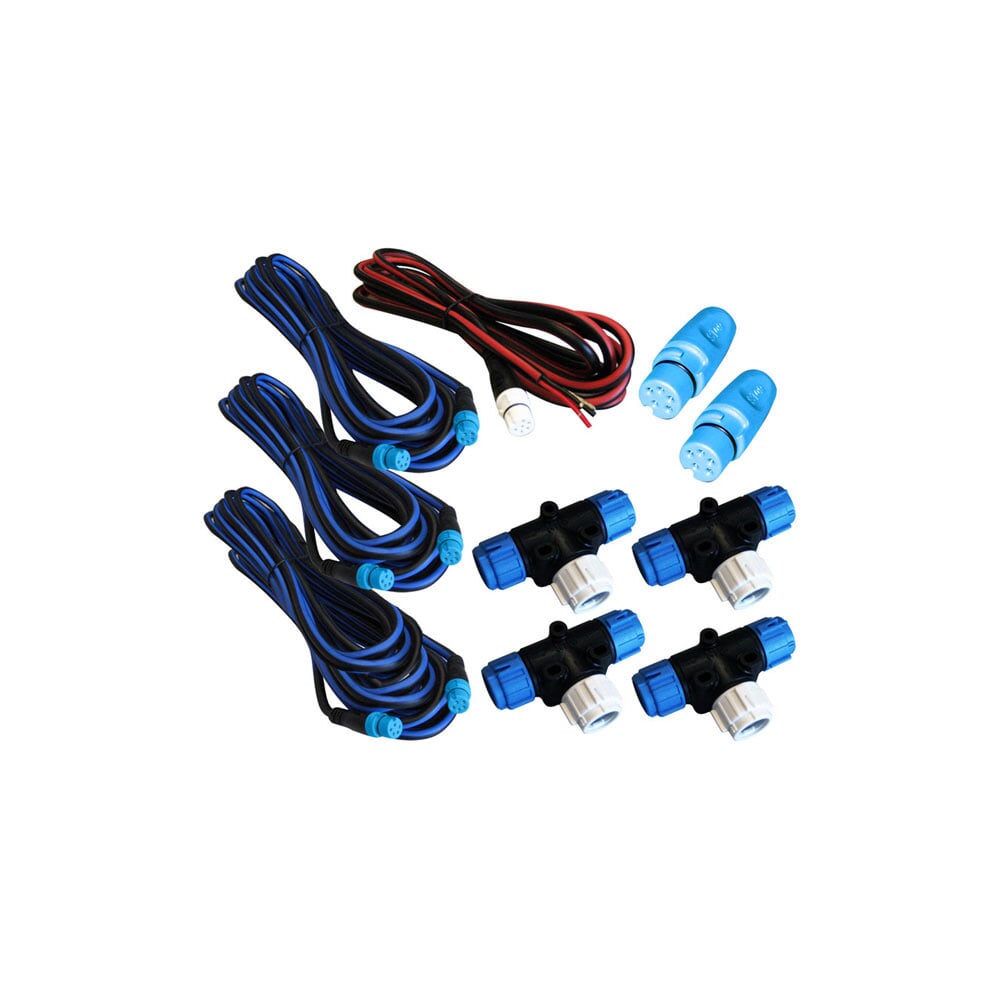

SeaTalkNG Backbone Kit. This is a larger backbone kit which contains: Two Terminators, Power Cable, 4 x T-Piece Connectors, 20m Backbone Cable, 2 x 5m Backbone Cable.
Spur cables connect individual SeaTalkNG products to the SeaTalkNG backbone.
Cables and connectors are colour-coded for easy system identification and have quick connect (push-fit, twist-lock) waterproof (IPx6) plugs and sockets.
Whether you are looking to expand your current SeaTalkNG system, update your electronics suite or completely refit, it couldn’t be easier with SeaTalkNG.
Backbone cables, plugs, sockets and terminators are coded blue.
Spur cables, plugs, and sockets are coded white.
SeaTalk to SeaTalkNG converter cables, plugs and sockets are coded yellow.
SeaTalkNG power cables are coded red.
Transducer signals are easily converted to SeaTalkNG with the iTC-5 component.
SeaTalk-HS data is quickly distributed to other SeaTalk-HS using the HS-5 switch.
A 3rd party product (NGT-1) is also available to convert NMEA0183 GPS data for DSC VHF use.
-
