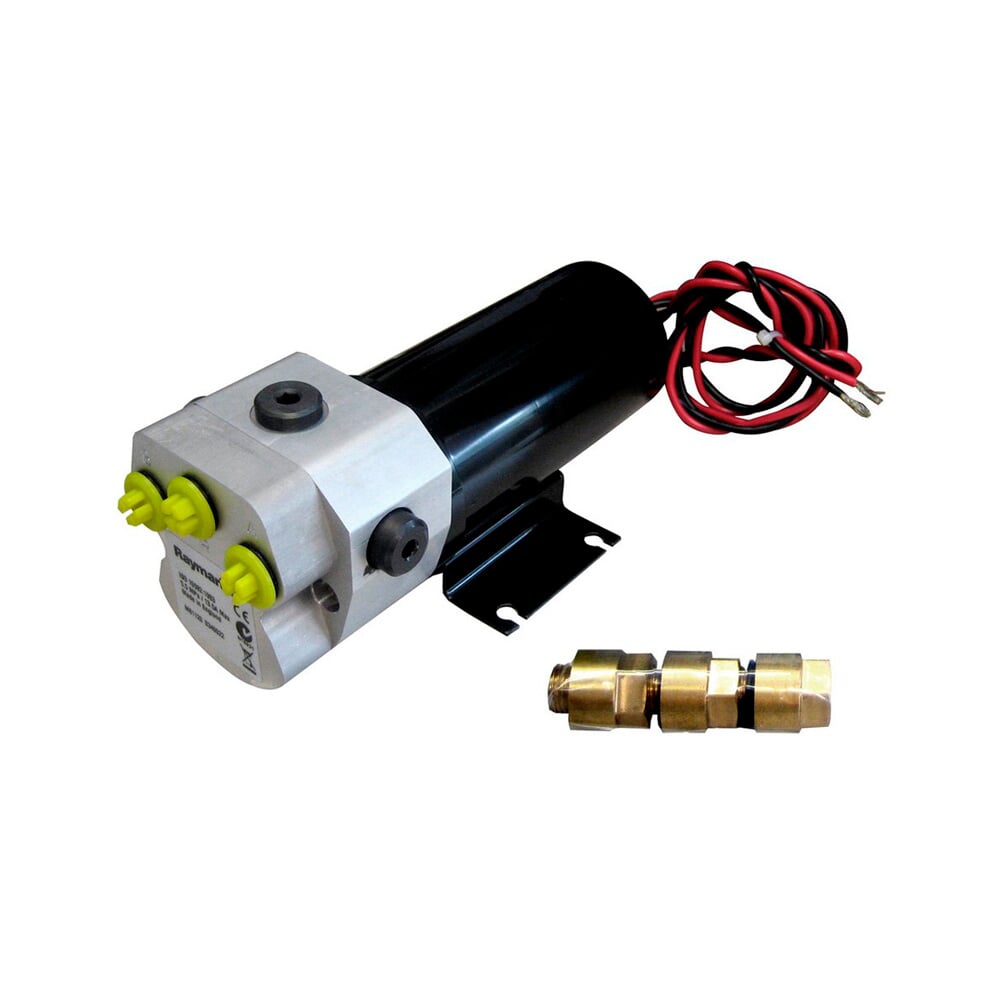

Raymarine Type 0.5 Autopilot Hydraulic Reversing Pump - 0.5L / 12VDC
Estimated Delivery 7 - 14 days
RRP £815.00
Free mainland UK delivery!
Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.
If your system is hydraulic.
You'll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engined boats, or to the drive unit on outboard engined boats. Your steering system documentation will have this information.
Features
- Drive Type: Type 0.5 (12V)
- Ram Capacity: 50cc-110cc (3.1in3 -;6.7in3)
- Maximum Stall Pressure at 12V: 50bar (750psi)
- Peak Flow Rate (No Load): 1000cc/min (67in3/min)
- ACU Used: ACU-100
Raymarine Evolution pilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.
If your system is hydraulic.
You'll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engined boats or to the drive unit on outboard engined boats. Your steering system documentation will have this information.
-
-
-
-
