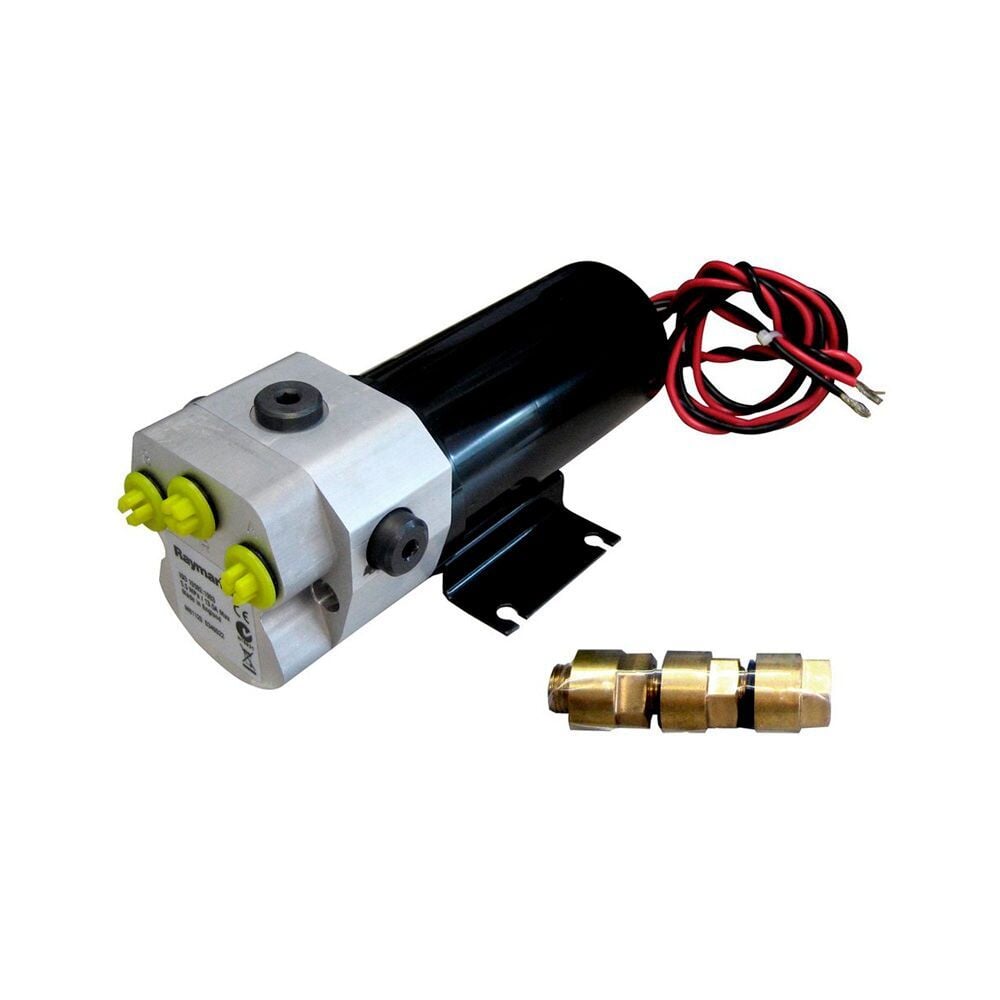

Raymarine Type 1 Autopilot Hydraulic Reversing Pump - 1L / 12VDC
Ready to dispatch
RRP £875.00
Free mainland UK delivery!
Vessel Displacement does not apply here. The drive unit is matched to the ram capacity of the steering system .
Ram Capacity: 80cc - 230cc (4.9in3–14in3).
Maximum Stall Pressure at 12V : 50bar (750psi).
Peak Flow Rate (No Load): 1000cc/min (67in3/min).
Corepack Used: SPX 10.
Raymarine Hydraulic Steering Systems.
Raymarine SmartPilots connect to hydraulic steering systems using a rugged hydraulic pump matched to the capacity of the hydraulic steering system.
If your system is hydraulic.. You'll need to find out the size (in cc) of the hydraulic cylinder ram(s) mounted to the rudder or inboard engined boats, or to the drive unit on outboard engined boats. Your steering system documentation will have this information.
In some systems with dual steering rams in parallel, cylinder capacity is the total of both rams. Rams in series only require single capacity valve. Hydraulic steering systems with steering rams over 500cc require Raymarine's larger constant running pump used in conjunction with SPX and SPX-SOL course computers.
An authorised Raymarine dealer is best suited to installing a hydraulic autopilot system.
-
