Raymarine Type 2/24v Rotary Drive
Available to order
Estimated Delivery 7 - 14 days
Estimated Delivery 7 - 14 days
MPN
M81137
RRP £2,095.00
£1,780.75
£1,483.96
Free mainland UK delivery!
Maximum boat displacement: 20,000 kg.
Peak output torque: 34 nm.
Maximum shaft speed: 33 rpm.
Recommended hard-over times (no load): 10 seconds.
Power consumption: 60-84 W.
Corepack used: SPX-30.

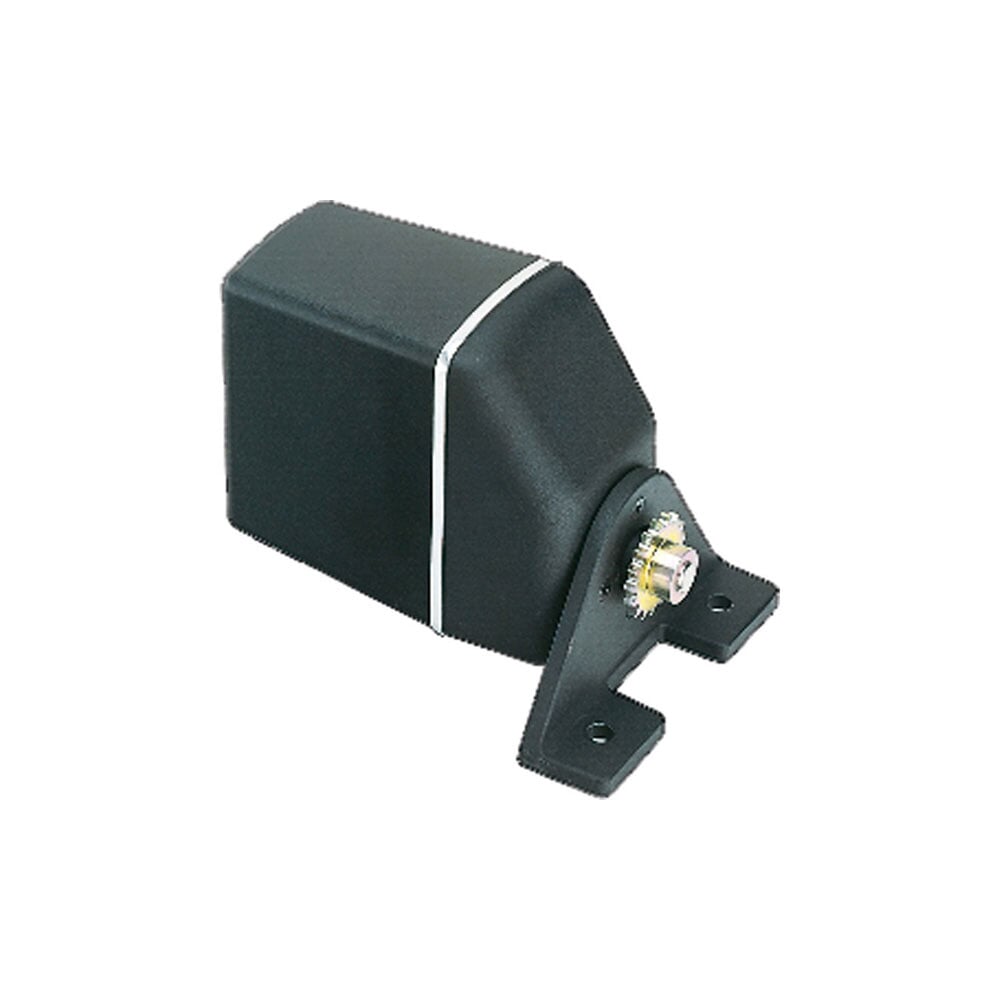

Raymarine Mechanical Rotary Drives.
The rotary drive is designed for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). The outstanding design of the Raymarine rotary drive unit provides smooth, powerful autopilot controlled steering with quiet operation.
Optional drive sprockets and modification to the steering chain may be required.
