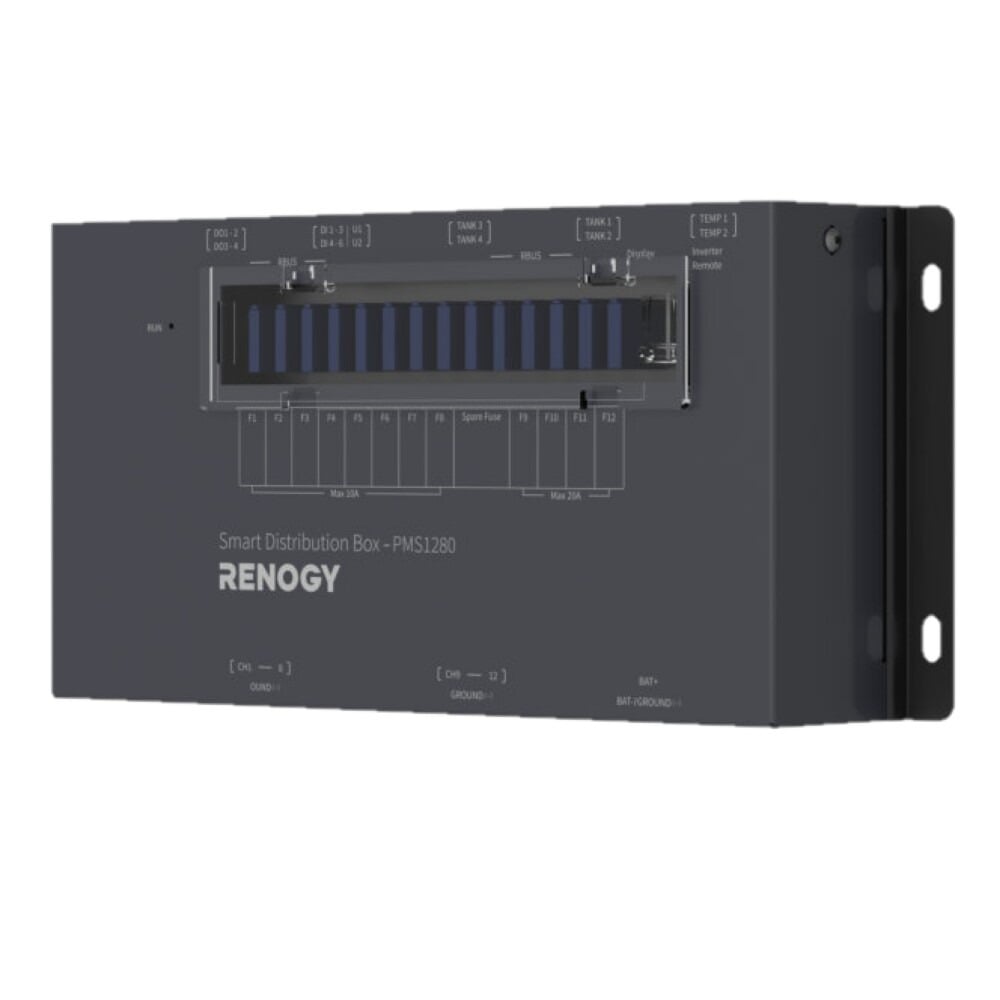

Renogy PMS1280 Smart Distribution Box - 12/24V 80A

• Max Total Current: 80A
• Circuit Breakdown: 8 x 10A Max and 4 x 20A Max load channels
• Built-in Protections: Automated low-voltage shutdown and high-voltage reconnect to prevent deep discharge
• Multi-Channel Monitoring: Inputs for 4 water tank sensors 2 temperature sensors and multiple digital controls
• Integration: Compatible with the Renogy ONE Core dashboard and DC Home App via CAN & RS-485
• Dimensions: 340 × 157 × 66.4 mm
• Weight: 1.98kg

The Smart Distribution Box is a DC power distribution control device designed for RV and motorhome scenarios. It integrates functions such as multi-channel water tank temperature sensors voltage detection DC loads control and more. It integrates CAN communication and supports Renogy ONE series and Renogy ONE Vision to display and control.

Renogy Smart Distribution Box PMS1280 is a centralized direct current (DC) power control hub specially designed for off-grid recreational vehicles yachts and motorhomes. The distribution box provides 12 circuit channels for load control as well as voltage and current detection four water level detection circuit channels two temperature detection ports and multiple digital input/output signal ports.

When connecting with Renogy ONE Core Renogy app and/or Renogy ONE Vision the distribution box makes real-time monitoring and control of the connected devices possible.
