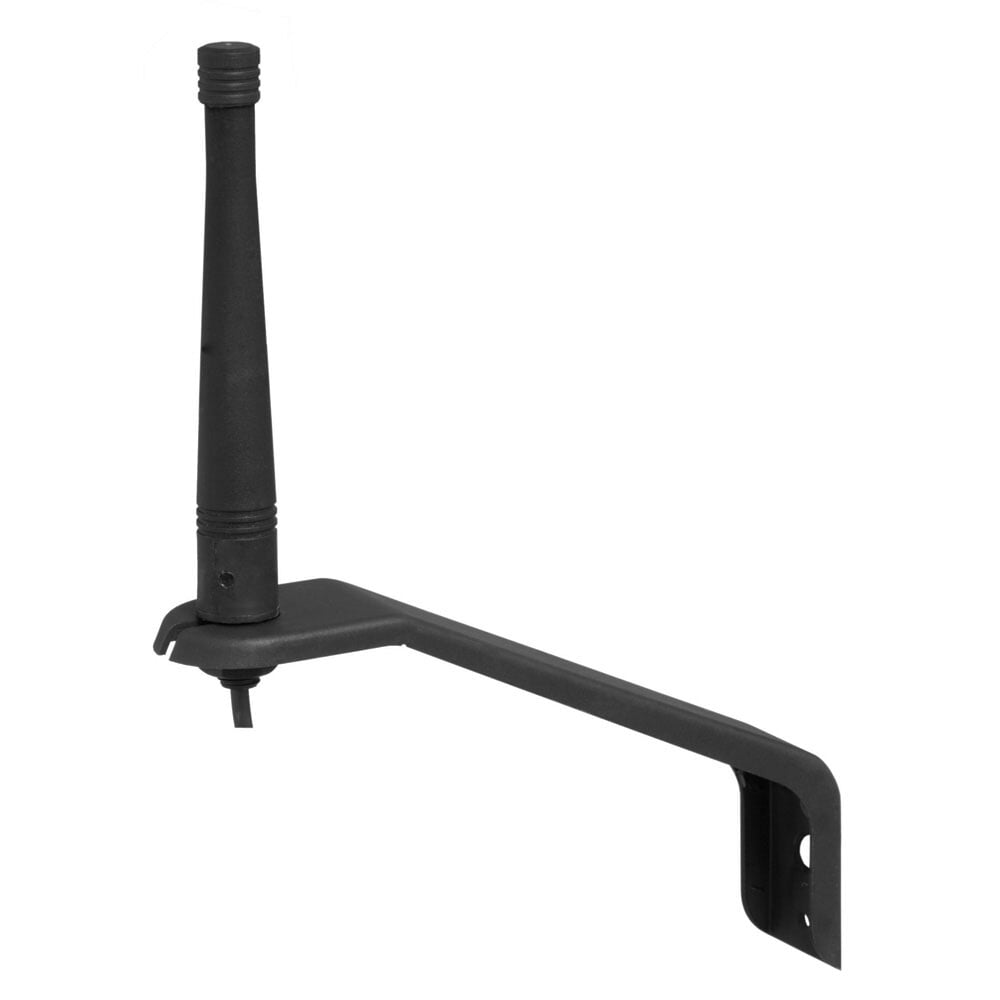

Shakespeare LDDB - GSM & GPRS Cellular Antenna - 0.15m

Available to order
Estimated Delivery 7 - 14 days

MPN

YSE-DB

£64.22 £53.52

The LDDB antenna is a Triple Band sleeved dipole tuned to cover GSM and GPRS frequencies. The antenna is a full 3dB sleeved dipole on the 860-960MHz band and have excellent responses from 1800—2200MHz.

Details

Frequency: 860-960Mhz & 1750-2100Mhz
Polarisation: Vertical
Impedance: 50 Ohms
VSWR: <1.5:1 at 860-960Mhz. <2:1 at 1750—2100MHz
Gain: 3dB
Cable: 5m RG58
Connector: TNC Plug as standard
Power Rating: 50W
Element Material: Solid Brass sleeved dipole
Length: 0.15m
Mounting: Supplied as Standard with R/A bracket

The antenna has a rugged design that is small enough to be mounted in many positions. It is supplied as standard with a stand off bracket and 3 screws.
