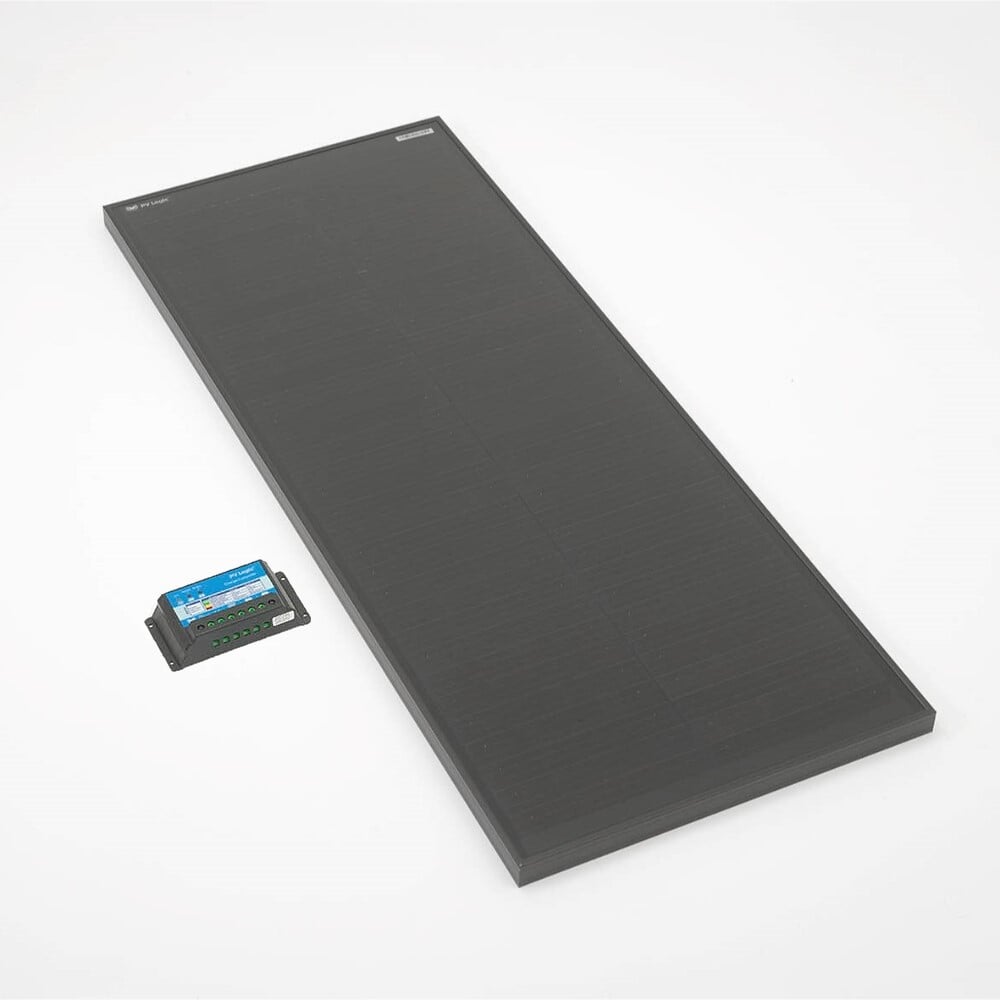

Solar Technology 100W Rigid MHD Solar Panel & 10A PWM

• Power: 100W
• Size: 1150 x 460 x 35mm
• Weight: 6.9Kg
• Amp hours per day: 31.92A
• Charge controller: Includes 10A Dual Battery PWM Charge Controller
• Vmp: 18.8V
• Voc: 22.2V
• Isc: 5.64A

The 100w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.

The sturdy anodized aluminium frame complements the solar cells to create a smart allblack panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome caravan or campervan roof as well as other offgrid power applications. They are supplied with a 10-year module warranty.

Includes 10A Dual Battery PWM Charge Controller

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.

The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient Series PWM charging increases battery lifetime and improves solar system performance.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 10A
