Solar Technology 110W MHD Flexi Rear Exit Solar Panel Glue & 15A MPPT

• Power: 110W
• Size: 1050 x 550 x 2mm
• Weight: 2.01Kg
• Amp hours per day: 35.52A
• Charge controller: 15A Dual Battery MPPT Charge Controller
• Vmp: 18.6V
• Voc: 22V
• Isc: 6.27A
• Includes panel bonding agent

The 110w MHD Flexi solar panel combines shingled monocrystalline solar cells to deliver super efficient power generation with a tough ETFE top sheet for longevity and robust impact resistance. At just 2mm thick, this ultra-lightweight panel is ideal for flat roofs as well as surfaces with a slight curve making it the perfect choice for camper vans and boat decks.

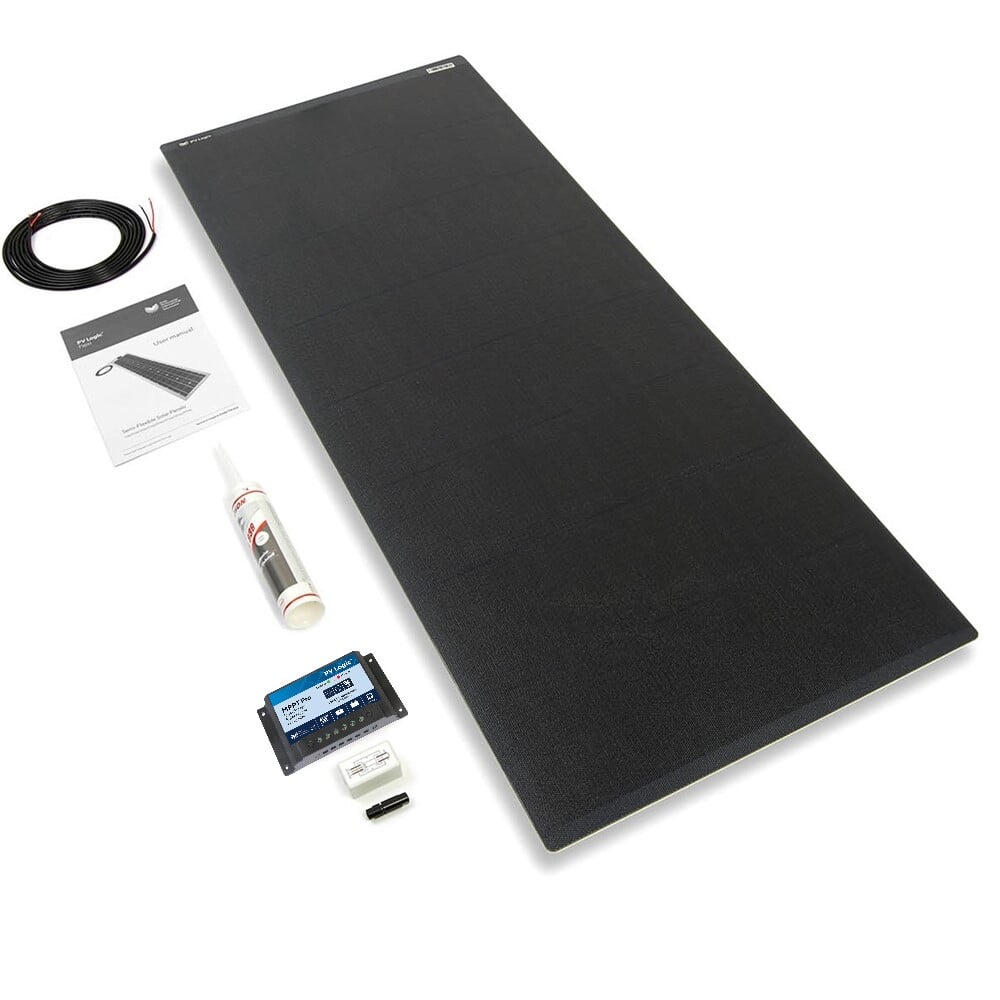

To ensure long term performance in the most extreme environments, the panels are tested to ASTM B117 - ISO9227 for saltwater spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892. The 110w rear exit solar panel comes with a 1m connection cable, 1 x 4m cable and diode box. The panel is supplied with a 4-year module warranty.

A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Includes 15A Dual Battery MPPT Charge Controller

The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery.

The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 15A
• Bluetooth with Apple and Android apps available
• Optional Display unit available
