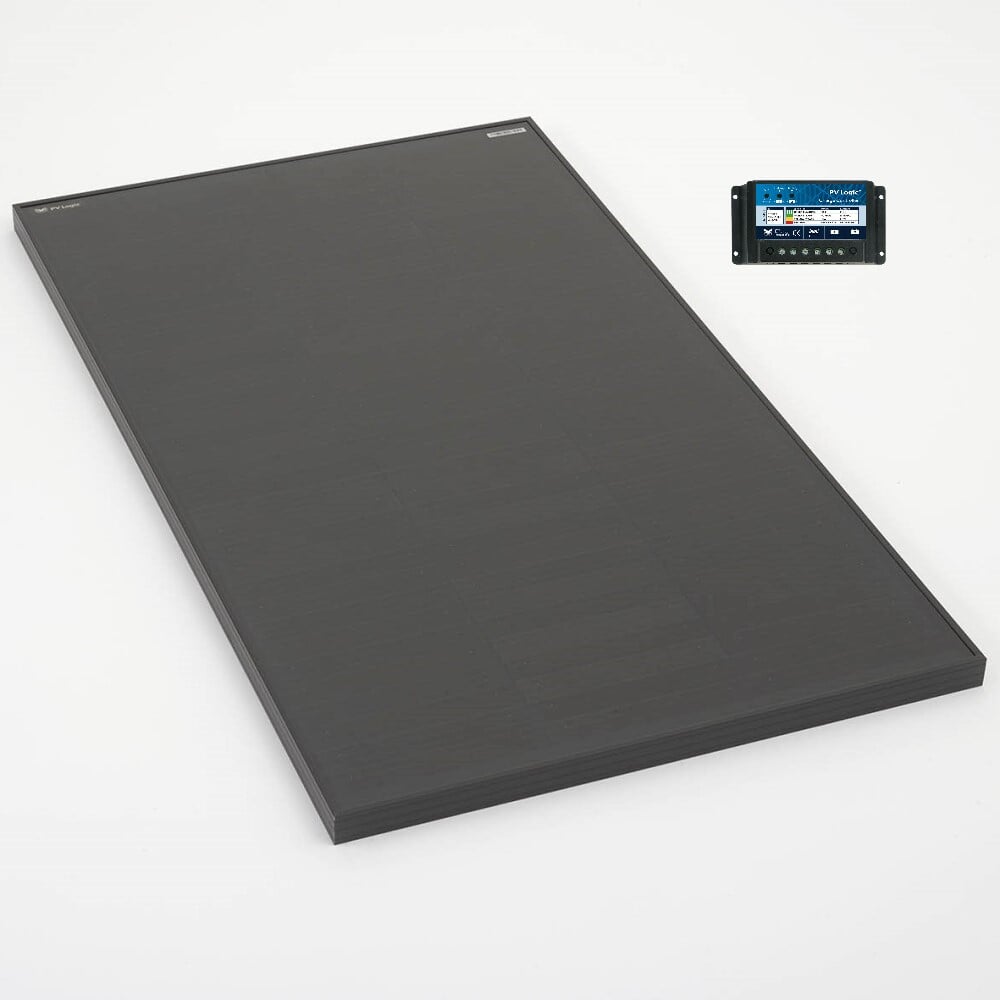

Solar Technology 150W Rigid MHD Solar Panel & 10A PWM
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
Made using innovative solar cell technology designed to deliver superior efficiency, the new 150wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering 900w of power per day, the 150w MHD panel gives you the freedom to spend time away from electrical hook up whilst keeping your favourite appliances and devices working. Includes 10A Dual Battery PWM Charge Controller
- Power: 150W
- Size: 1150 x 670 x 35mm
- Weight: 7.5Kg
- Amp hours per day: 47.88A
- Charge controller: Includes 10A Dual Battery PWM Charge Controller
- Vmp: 18.8V
- Voc: 22.2V
- Isc: 8.46A
The 150w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.
The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. MHD panels are perfect for use on a motorhome, caravan or campervan roof as well as other off-grid power applications. They are supplied with a 10-year module warranty.
Includes 10A Dual Battery PWM Charge Controller
This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.
The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.
- Reverse current protection.
- Unique dual battery charging function.
- Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
- 12/24V automatic recognition.
- Overload protection
- Open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 10A
-
