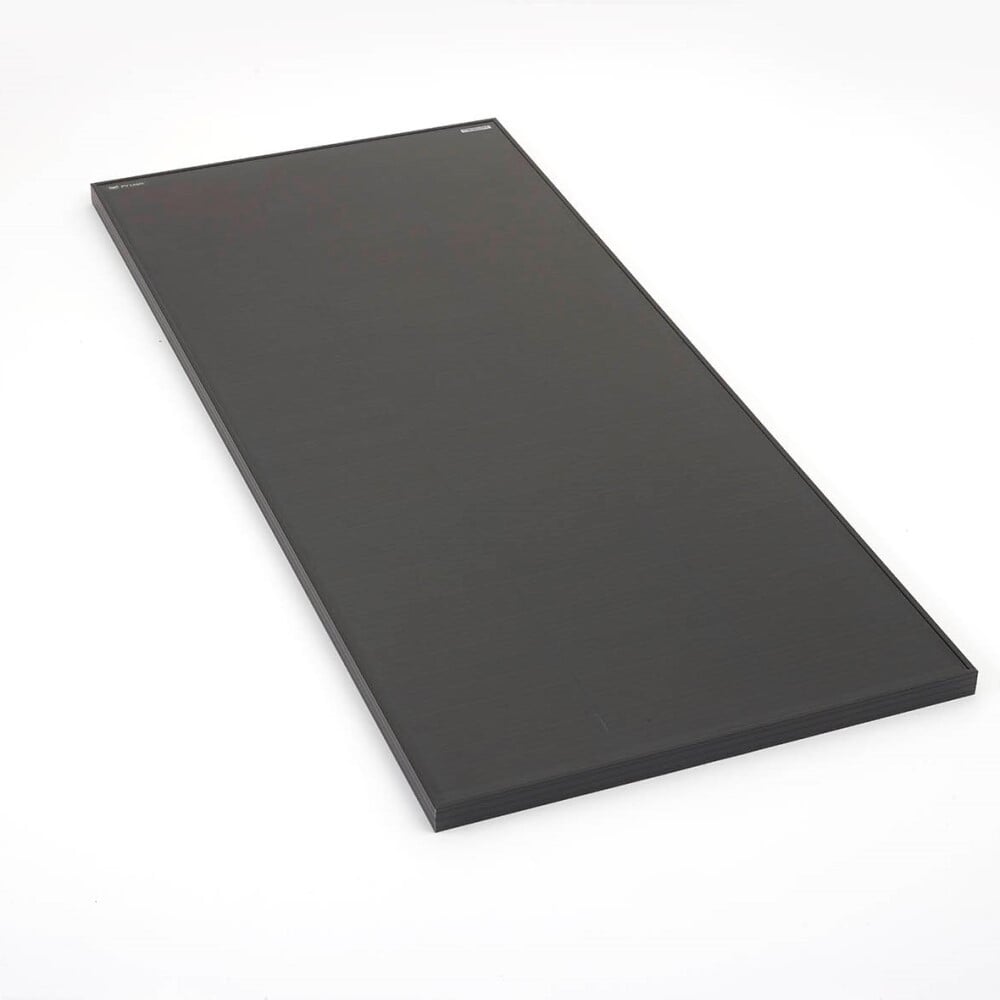

Solar Technology 200W Rigid MHD Solar Panel
Estimated Delivery 7 - 14 days
Free mainland UK delivery!
Made using innovative solar cell technology designed to deliver superior efficiency, the new 200wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering more than 1kw of power per day, the 200w MHD panel is designed for seriously power hungry applications where multiple panels maybe joined in series or parallel to create a significant solar array.
- Power: 200W
- Size: 1520 x 670 x 35mm
- Weight: 11.8Kg
- Amp hours per day: 48A
- Charge controller: 20Ah
- Vmp: 25V
- Voc: 22.2V
- Isc: 8.48A
The 200w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.
The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. Bypass diodes minimise the effect of shadows and the panel is fitted with 2x1m cables and MC4 connectors. Also included are 2 x 3m cable fitted with MC4 connectors so the panels can easily be linked together to create a larger solar array. MHD rigid panels are perfect for use on a motorhome, caravan or campervan roof as well as other off-grid power applications. They are supplied with a 10-year module warranty.
A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.
-
