Solar Technology 200W Rigid MHD Solar Panel & 20A PWM
Estimated Delivery 7 - 14 days
Free mainland UK delivery!

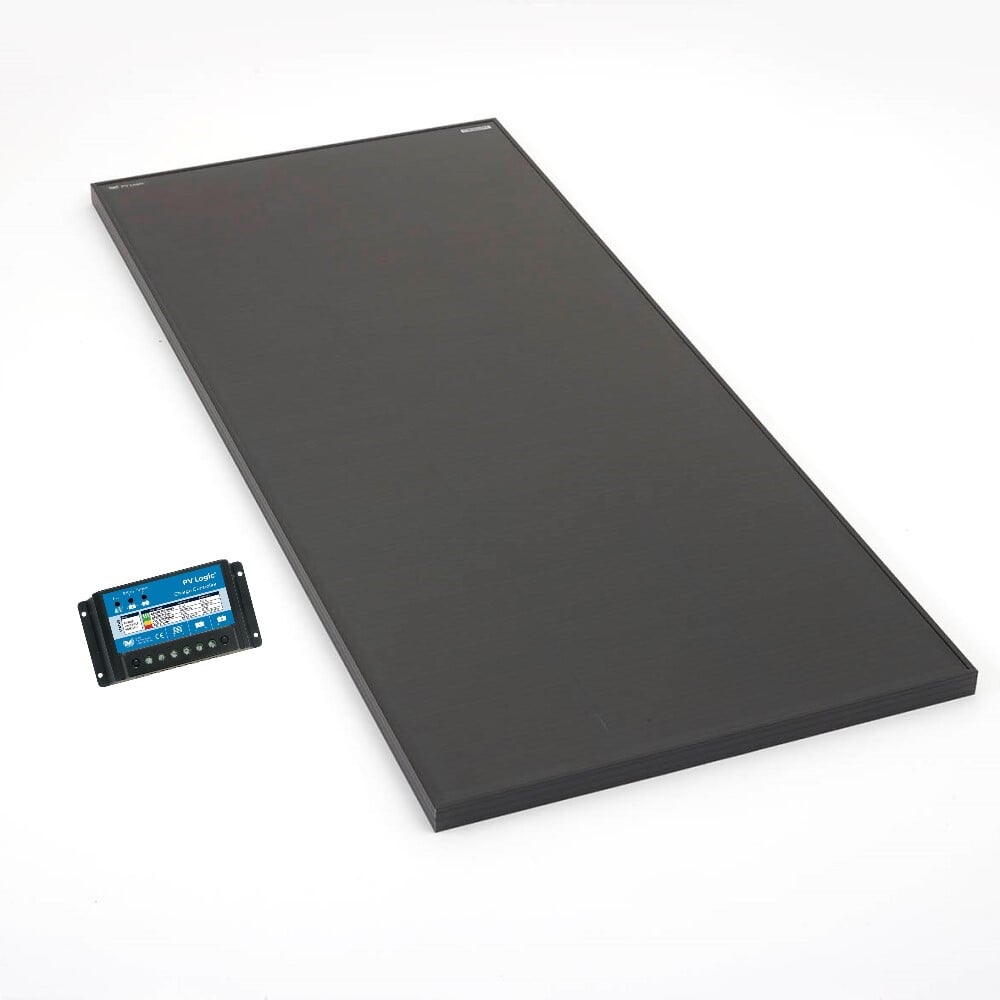

Made using innovative solar cell technology designed to deliver superior efficiency, the new 200wp Rigid Mono High Density (MHD) solar panel offers greater output in a smaller footprint. With the potential of delivering more than 1kw of power per day, the 200w MHD panel is designed for seriously power hungry applications where multiple panels maybe joined in series or parallel to create a significant solar array. Includes 20A Dual Battery PWM Charge Controller.
- Power: 200W
- Size: 1520 x 670 x 35mm
- Weight: 11.8Kg
- Amp hours per day: 48A
- Charge controller: Includes 20A Dual Battery PWM Charge Controller
- Vmp: 25V
- Voc: 22.2V
- Isc: 8.48A
The 200w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.
The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. Bypass diodes minimise the effect of shadows and the panel is fitted with 2x1m cables and MC4 connectors. Also included are 2 x 3m cable fitted with MC4 connectors so the panels can easily be linked together to create a larger solar array. MHD rigid panels are perfect for use on a motorhome, caravan or campervan roof as well as other off-grid power applications. They are supplied with a 10-year module warranty.
Includes 20A Dual Battery PWM Charge Controller
This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.
The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.
- Reverse current protection.
- Unique dual battery charging function.
- Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
- 12/24V automatic recognition.
- Overload protection
- Open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 20A
-
