Solar Technology 200W Rigid MHD Solar Panel ABS Mounts & 15A MPPT
Estimated Delivery 7 - 14 days
Free mainland UK delivery!

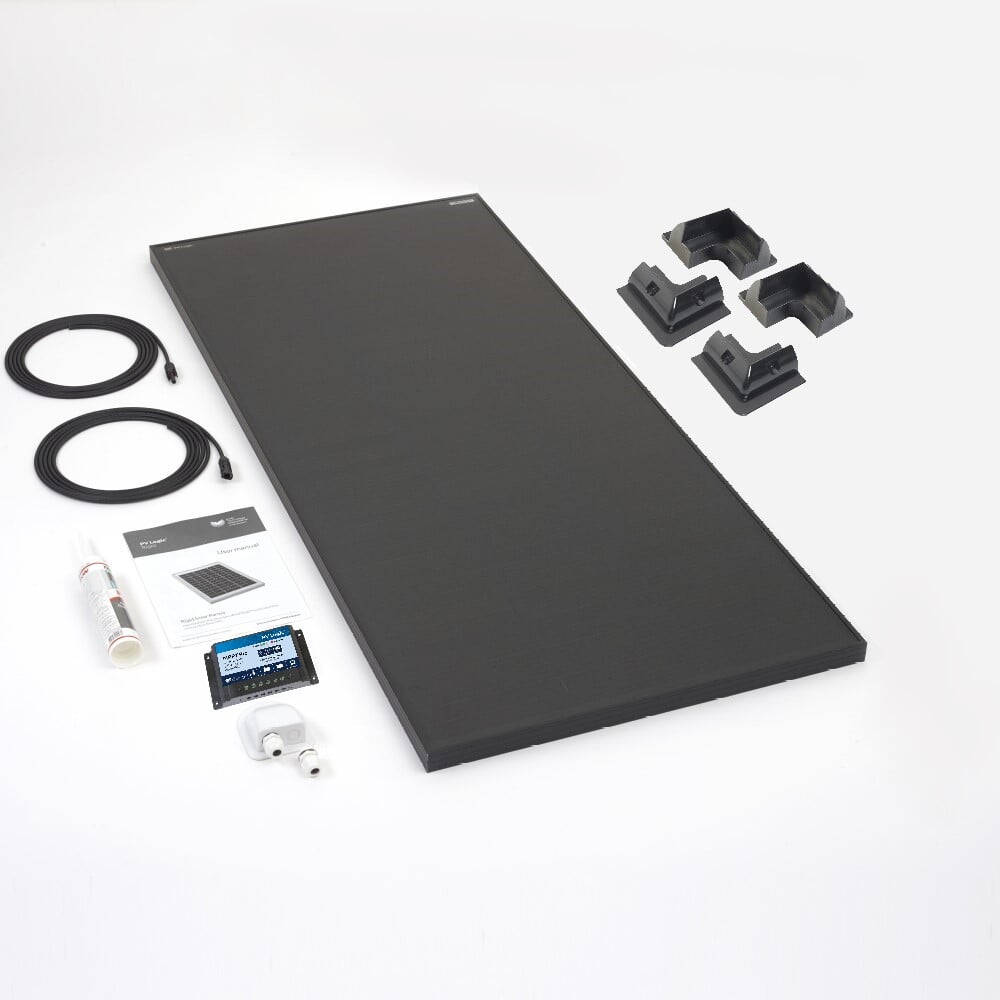

200W Rigid Solar Panel Roof & Deck Top Kit Comprising of:
- 200W Rigid Solar Panel
- 4 x ABS Corner Mounts with fixings
- 15A Dual Battery MPPT Charge Controller
- 4m Cable, Connectors, Gland & Fuse
- Tube of bonding agent
- Power: 200W
- Size: 1520 x 670 x 35mm
- Weight: 11.8Kg
- Amp hours per day: 48A
- Charge controller: Includes 15A Dual Battery MPPT Charge Controller
- Vmp: 25V
- Voc: 22.2V
- Isc: 8.48A
- Includes ABS Corner Mounts
The 200w MHD rigid solar panel features superior shingled monocrystalline solar cells to deliver greater efficiency in a smaller footprint and lighter weight compared to conventional polycrystalline solar panels.
The sturdy anodized aluminium frame complements the solar cells to create a smart all-black panel with an IP67 waterproof rating. Bypass diodes minimise the effect of shadows and the panel is fitted with 2x1m cables and MC4 connectors. Also included are 2 x 3m cable fitted with MC4 connectors so the panels can easily be linked together to create a larger solar array. MHD rigid panels are perfect for use on a motorhome, caravan or campervan roof as well as other off-grid power applications. They are supplied with a 10-year module warranty.
Includes ABS Corner Mounts
The mounts can be safely bonded to the surface of motor homes / boats removing the need to drill holes.
Includes 15A Dual Battery MPPT Charge Controller
The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery.
The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers.
- Reverse current protection.
- Unique dual battery charging function.
- Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%.
- 12/24V automatic recognition.
- Overload protection
- Open circuit protection
- Lightning surge protection
- Deep discharge protection
- Charge current protection up to 15A
- Bluetooth with Apple and Android apps available
- Optional Display unit available
-
