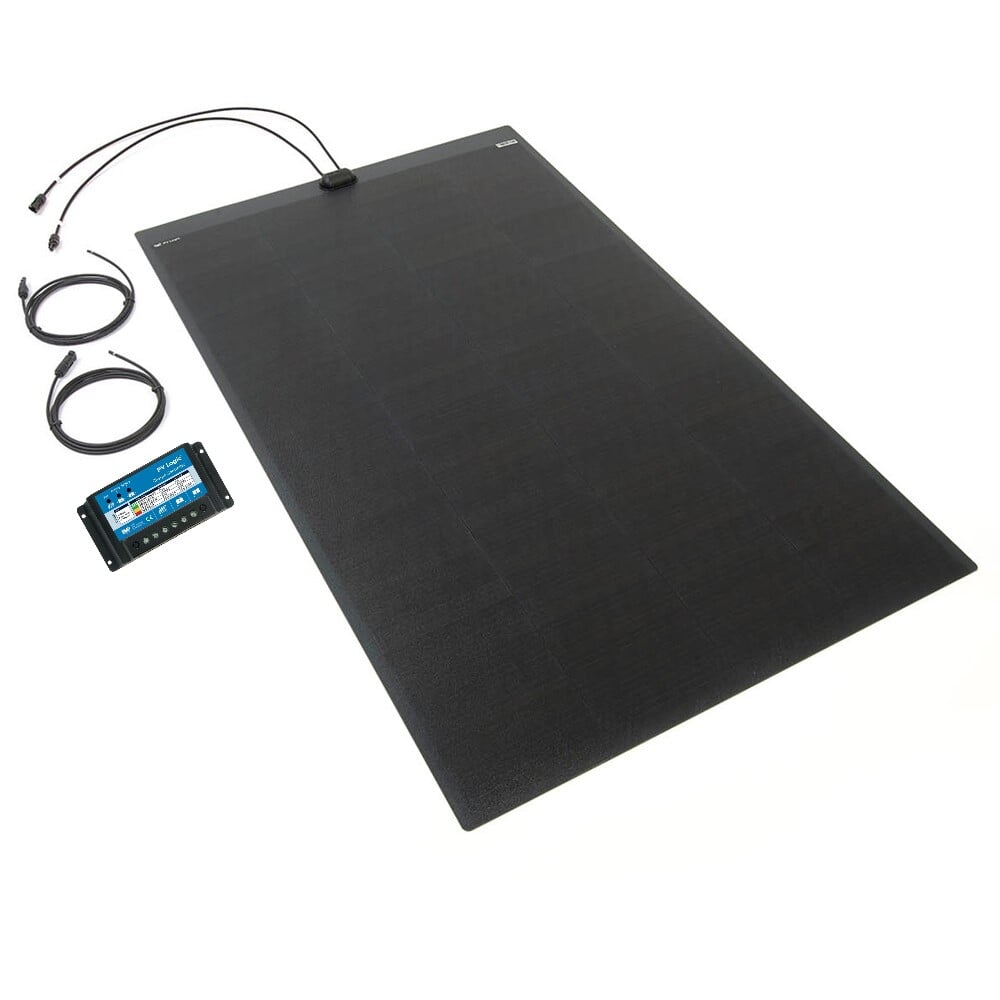

Solar Technology 250W MHD Flexi Top Exit Solar Panel & 20A PWM

• Power: 250W
• Size: 1475 x 890 x 2mm
• Weight: 4.5Kg
• Amp hours per day: 61.5A
• Charge controller: Includes 20A Dual Battery PWM Charge Controller
• Vmp: 24.4V
• Voc: 28.8V
• Isc: 10.86A

The 250w MHD Flexi solar panel combines shingled monocrystalline solar cells to deliver super efficient power generation with a tough ETFE top sheet for longevity and robust impact resistance. At just 2mm thick, this ultra-lightweight panel is ideal for flat roofs as well as surfaces with a slight curve making it the perfect choice for camper vans and boat decks.

To ensure long term performance in the most extreme environments, the panels are tested to ASTM B117 - ISO9227 for saltwater spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892. The 250w solar panel comes with 2 x 0.9m connection cables fitted with MC4 connectors and 2 x 3m cable with MC4 connectors so the panels can be easily joined together to create a solar array. The panel is supplied with a 4-year module warranty.

A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Includes 20A Dual Battery PWM Charge Controller

This controller is for off-grid solar systems and has the additional functionality that it can charge two batteries simultaneously and can work on both 12v or 24v systems.

The charging process has been optimised for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 20A
