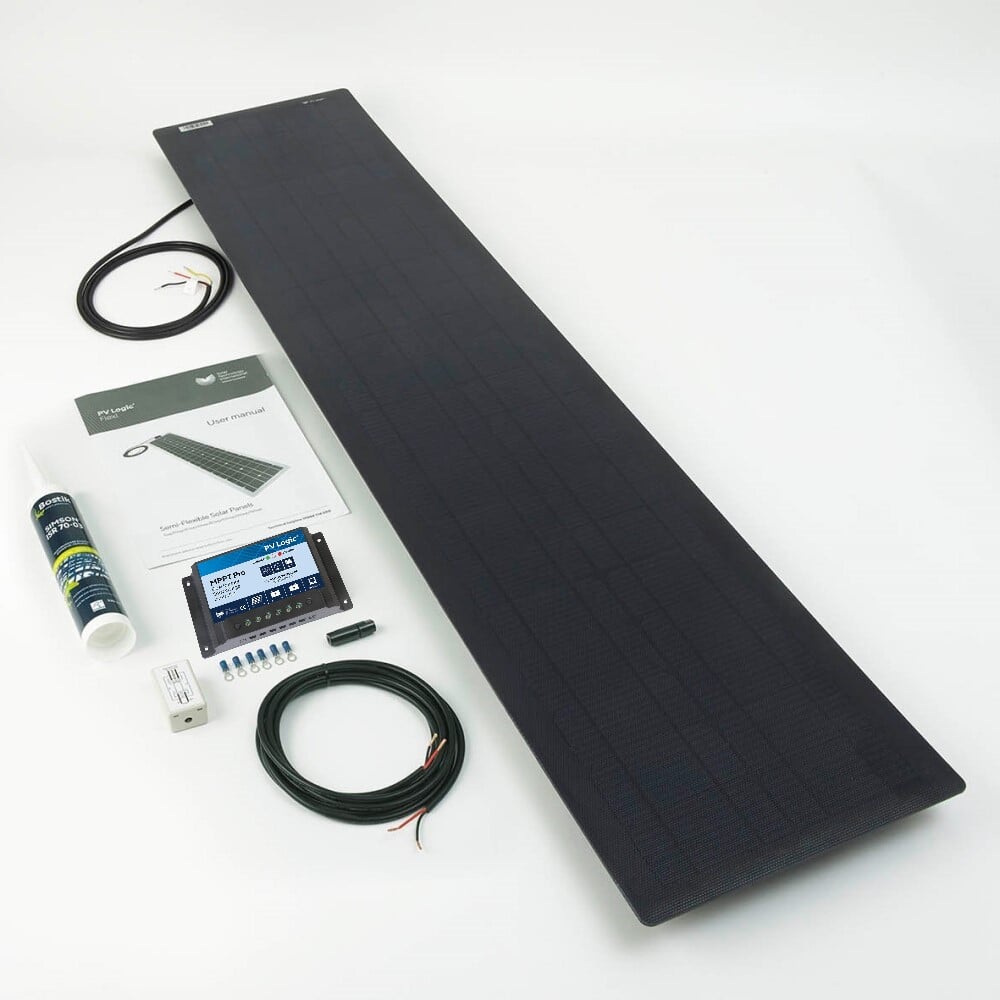

Solar Technology 60W Black Flexi Rear Exit Solar Panel Glue & 15A MPPT

• Power: 60W
• Size: 1450 x 315 x 4mm
• Weight: 3Kg
• Amp hours per day: 20.22A
• Charge controller: Includes 15A Dual Battery MPPT Charge Controller
• Vmp: 17.6V
• Voc: 22.1V
• Isc: 3.64A
• Includes panel bonding agent

Ideal for flat roofs as well as surfaces with a slight curve, the PV Logic Flexi solar panels are robust, lightweight and extremely versatile. Perfect for marine buoys, boat decks and camper vans, the panel’s seven layer construction of delivers performance and strength.

The ETFE top layer is ‘self-healing’ so that if a panel comes into contact with something abrasive, such as a branch, any slight scratches are ‘healed’ within a few hours. During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

To ensure long term performance in the most extreme environments, the Flexi panels are tested to ASTM B117 - ISO9227 for salt water spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892. PV Logic flexi solar panels have a 2-year product warranty and a 20-year cell warranty (cell performance warranty states that at 20 years the cell output will be no less than 80% of new performance values – i.e. the cell degradation rate will be no greater than 20% in 20 years).

A 10Ah charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain. We recommend the STCC10 or the MPPT Pro Charge Controller.

Easy fix

The flexi range can be bonded to flat or slight curved surfaces (3cm curve per metre) such as painted aluminium, metal, GRP and fibreglass using Simson ISR 70-03.

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.

Includes 15A Dual Battery MPPT Charge Controller

The PV Logic MPPT Pro charge controller has been designed to deliver the highest possible power from any 12v or 24v solar panel into a 12v or 24v battery.

The MPPT Pro provides protection for a battery against overcharging for any solar panel or solar array up to 225w and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro will more than pay back its cost through the extra power it delivers.

• Reverse current protection.
• Unique dual battery charging function.
• Efficient MPPT charging, increases battery lifetime and improves solar system performance upto 20%.
• 12/24V automatic recognition.
• Overload protection
• Open circuit protection
• Lightning surge protection
• Deep discharge protection
• Charge current protection up to 15A
• Bluetooth with Apple and Android apps available
• Optional Display unit available
